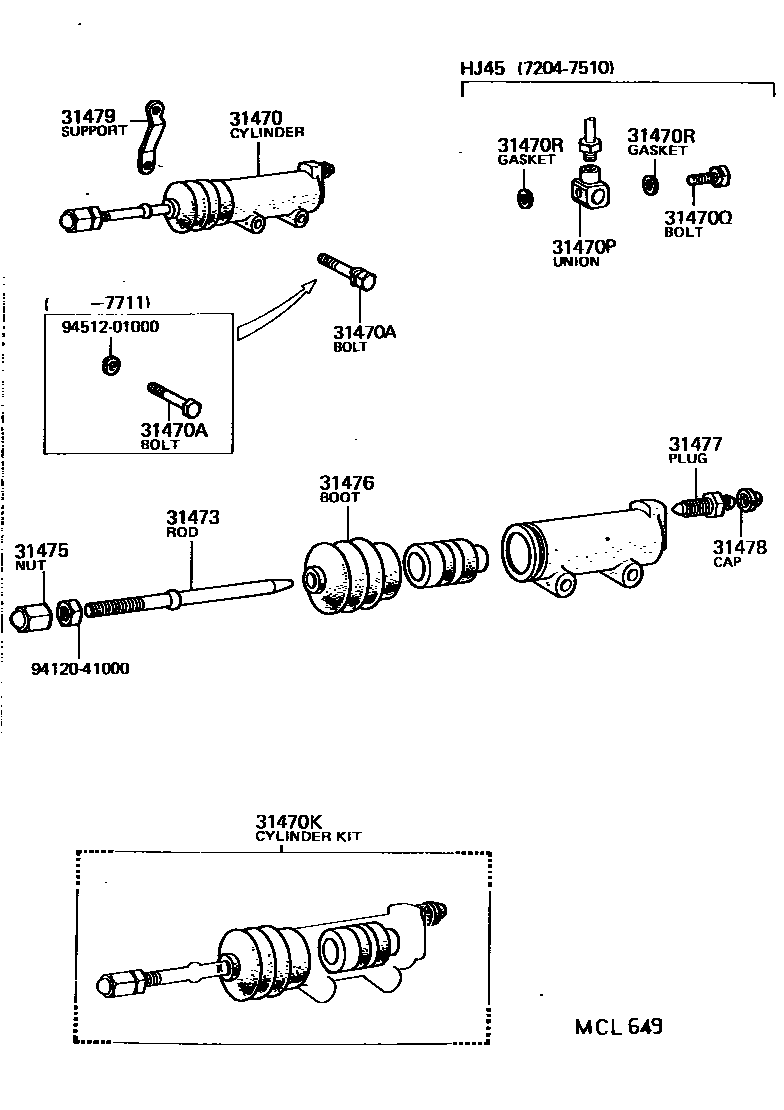

CLUTCH RELEASE CYLINDER

0001 1 0003 1 0004 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-60021iFJ4#196903-197007

main31470-60022iFJ4#197007-197408

main31470-60030iFJ55196903-197408

main31470-60040iHJ45197204-198007

main31470-60050iBJ4#197402-198007

main31470-60071iFJ4#,55197408-198007

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91111-41055iFJ4#,HJ45197211-197711

main91111-41056iFJ40,43,45,HJ45196903-197211

sub91111-51056

main91111-51063iFJ55196903-197211

sub91112-61065

main91111-51065iFJ55197211-197711

main91611-40828iBJ4#197402-198007

sub91611-60828

main91611-41055iFJ4#,55,HJ45197711-198007

sub91611-61055

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-40021iBJ4#197402-198007

main04313-60011iHJ45196903-198007

main04313-60020iFJ4#,55197408-198007

31470PUNION(FOR CLUTCH RELEASE)

main90405-10146iHJ45197204-197510

31470QBOLT, UNION(FOR CLUTCH RELEASE)

main90401-10046iHJ45197204-197510

31470RGASKET(FOR CLUTCH RELEASE)

main90430-10027iHJ45197204-197510

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-30020iBJ4#197402-198007

main31473-60021iFJ4#,HJ45196903-198007

main31473-60031iFJ55196903-197408

main31473-60050iFJ4#,55197408-198007

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31474-60010iFJ4#,55196903-197408

main31475-57010iHJ45197204-198007

main31475-60010iFJ4#,55197408-198007

sub31475-60020

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-40010iBJ4#197402-198007

main31476-60020iFJ4#,55,HJ45196903-198007

main31476-60031iFJ4#,55197408-198007

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBJ4#197402-198007

main47547-30020iFJ4#,55,HJ45196903-198007

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBJ4#,FJ4#,55,HJ45197206-198007

main47548-20010iFJ4#,55,HJ45196903-197206

31479SUPPORT, CLUTCH RELEASE CYLINDER

main31479-60010iFJ40,43,45..RHD196903-197408

main31479-60020iFJ4#..LHD196903-197209

9412041000

main94120-41000

9451201000

main94512-01000

14 parts on this diagram · 3 diagrams in section
