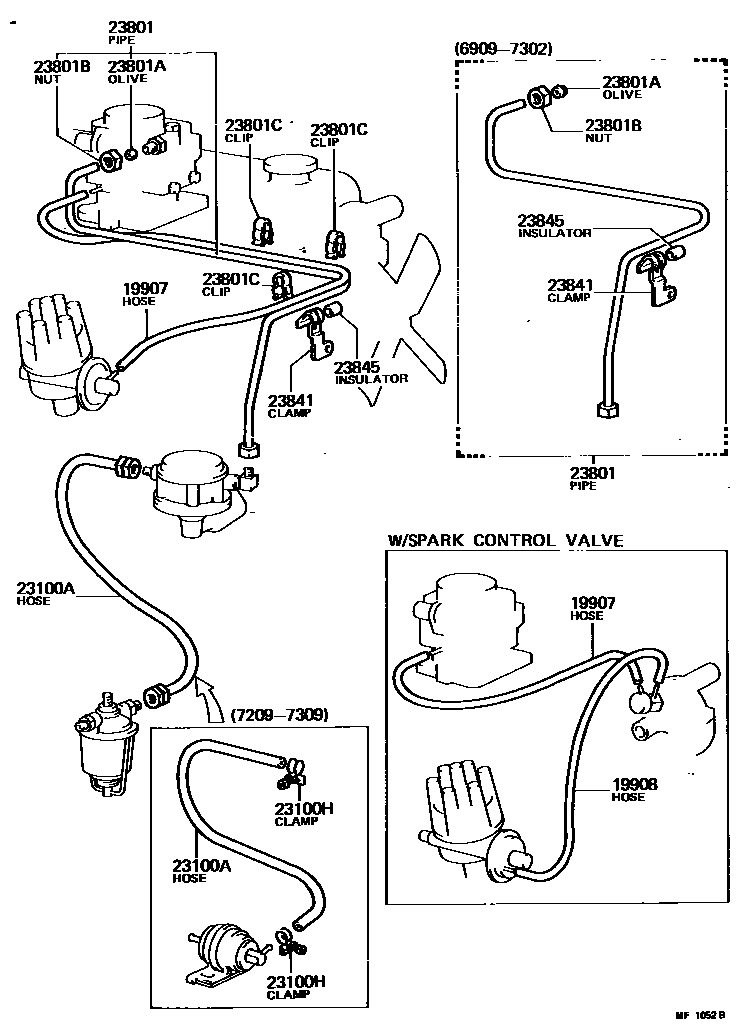

FUEL PIPE & CLAMP

0001 1 0002 1 0004 1 0006 1

19907HOSE, VACUUM, NO.1

main19907-60070iF..FJ55196903-196909

sub19907-60060

main19907-60090iF..FJ4#196903-196909

sub19971-60080

main90445-07010iF..FJ4#,55..LHD197309-197501

W/SPARK CONTROL VALVE L=500

main90445-07479iF,2F..FJ4#,55196909-197601

main90445-08091i2F..FJ4#,55197601-198007

sub90445-08201

main90445-08201i2F..FJ4#,55..ARL,GEN198007-198007

sub90445-08207

19908HOSE, VACUUM, NO.2

main90445-07280iF..FJ4#,55..LHD197309-197501

W/SPARK CONTROL VALVE L=640

23100AHOSE, FUEL

main23820-61030i2F..FJ4#..ARL,GEN197901-198007

main23820-61040i2F..FJ55197901-198007

main23820-61050i2F..FJ4#..EUR197901-198007

main90923-01019iF..FJ4#,55196903-196911

sub90923-01124

main90923-01124iF..FJ4#,55196911-197110

main95323-07026iF..FJ4#,55197110-197209

main95331-08024i2F..FJ4#197501-197708

L=240

sub95332-08024

main95331-08024iF..FJ4#197209-197501

sub95332-08024

main95331-08028i2F..FJ55197309-197509

L=280

sub95332-08028

main95331-08032i2F..FJ55197209-197708

L=320

sub95332-08032

main95332-08030i2F..FJ4#197708-197901

L=300

sub95333-08030

main95332-08038i2F..FJ55197708-197901

L=380

sub95332-08040

23100HCLIP(FOR FUEL HOSE)

main90467-13130iF..FJ4#,55197209-197212

main90467-13138i2F..FJ4#,55197212-197608

sub96132-30800

main96132-30800iF..FJ4#,55197402-198007

sub96132-51300

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23801-60100iF..FJ4#,55196903-196909

main23801-60140iF..FJ4#,55196909-197209

sub23801-60142

sub23841-60022

main23801-60141iF..FJ4#,55197209-197302

sub23801-60142

sub23841-60022

main23801-60142iF..FJ4#,55197302-197501

sub23811-60142

sub90402-13041

sub96395-71400

main23801-60150iF..FJ55197010-197209

W/COOLER

sub23801-60151

main23801-60151iF..FJ55197209-197302

W/COOLER

sub23801-60152

sub23841-60022

main23801-60152iF..FJ55197302-197501

W/COOLER

sub23811-60152

sub90402-13041

sub96395-71400

main23801-61010i2F..FJ4#,55197501-197702

sub23811-61010

sub90402-13041

sub96395-71400

main23801-61020i2F..FJ55..RHD..(ARL,GEN)197509-197702

W/COOLER

sub23811-61020

sub90402-13041

sub96395-71400

main23811-61010i2F..FJ4#,55..EUR197702-198007

main23811-61020i2F..FJ55..RHD..(ARL,GEN)197702-197709

W/COOLER

main23811-61030i2F..FJ4#,55..ARL,GEN197909-197912

sub23811-61031

sub23841-61021

sub23842-61031

main23811-61030i2F..FJ40..ARL197901-197909

NEW SOUTH WALES

sub23811-61031

sub23841-61021

sub23842-61031

main23811-61031i2F..FJ4#,55..ARL,GEN197912-198007

sub23811-61032

23801AOLIVE(FOR FUEL PIPE)

main96395-71400iF,2F..FJ4#,55196903-198007

23801BNUT, UNION(FOR FUEL PIPE)

main90402-13041iF,2F..FJ4#,55196903-198007

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main90468-05005iF..FJ4#,55196903-196909

main90468-05025iF,2F..FJ4#,55196909-198007

main96132-30800i2F..FJ4#,55..ARL,GEN197901-198007

NEW SOUTH WALES

sub96132-51300

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-60020iF..FJ4#,55196903-197209

main23841-60021iF..FJ4#,55197209-197302

main23841-60022iF..FJ4#,55197302-197501

main23841-61010i2F..FJ4#,55197501-198007

main23841-61020i2F..FJ40..ARL197901-197909

NEW SOUTH WALES

main23841-61020i2F..FJ4#,55..ARL,GEN197909-197912

main23841-61021i2F..FJ4#,55..ARL,GEN197912-198007

23845INSULATOR, FUEL PIPE

main23845-20010iF..FJ4#,55196903-197302

10 parts on this diagram · 4 diagrams in section
