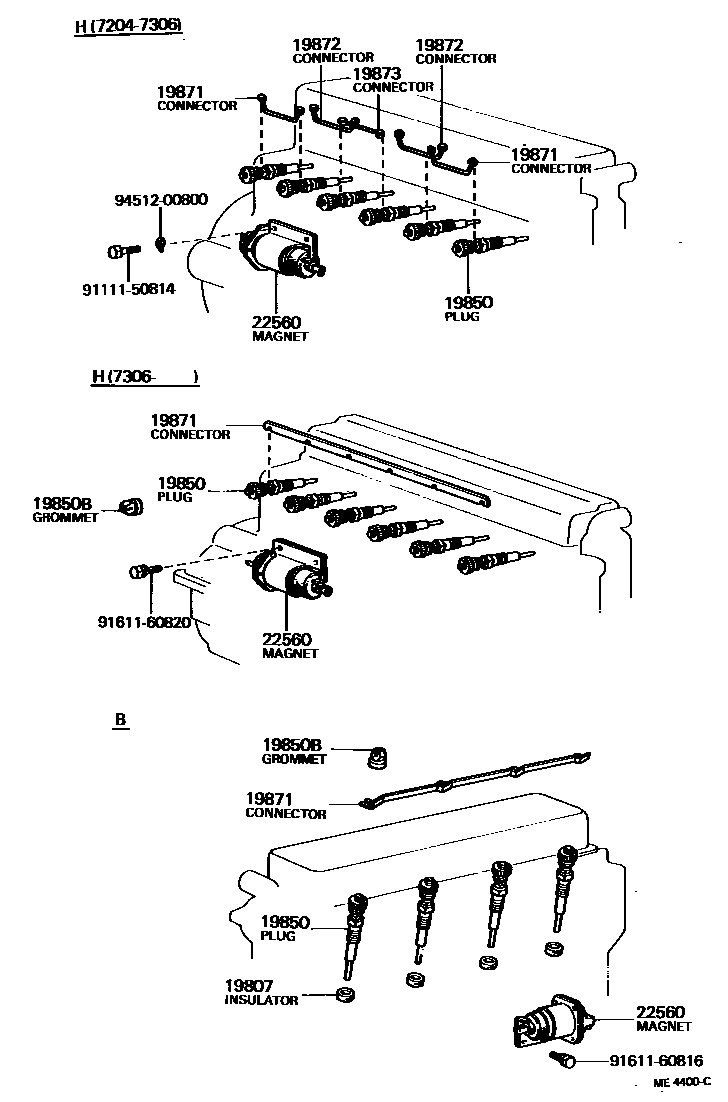

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1

19807INSULATOR SUB-ASSY, GLOW PLUG, NO.1

main19877-56010iB..BJ4#¥310197402-198007

19850PLUG ASSY, GLOW

main19850-46021iH..HJ45¥4,380197204-197306

12V

main19850-56010iB..BJ4#¥4,380197402-197410

*BV-GV=24V-19.4V,24V

main19850-56011iB..BJ4#¥3,160197410-197703

24V

sub19850-56012¥3,960

main19850-56012iB..BJ4#¥3,960197703-198007

*BV-GV=24V-20.5V,24V

sub19850-68040¥4,180

sub90189-04024¥90

main19850-56020iH..HJ45¥4,380197306-197410

12V

main19850-56021iH..HJ45197410-197709

12V

sub19850-56022¥3,450

main19850-56022iH..HJ45¥3,450197709-198007

12V

sub19850-68030¥3,790

sub90189-04024¥90

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-05011iB..BJ4#¥210197904-198007

main90189-06004iH..HJ45¥200197709-198007

19871CONNECTOR, GLOW PLUG NO.1

main19871-47010iH..HJ45197204-197306

main19871-47011iH..HJ45¥1,090197306-198007

main19871-56010iB..BJ4#¥1,470197402-198007

sub19871-56020¥1,650

19872CONNECTOR, GLOW PLUG, NO.2

main19872-47010iH..HJ45197204-197306

19873CONNECTOR, GLOW PLUG, NO.3

main19873-47010iH..HJ45197204-197306

22560MAGNET ASSY, OVER INJECTION

main22560-47020iH..HJ45¥11,500197204-197709

main22560-48010iH..HJ45¥12,200197709-198007

12V

main22560-48020iH..HJ45¥11,500197805-198007

24V

main22560-56010iB..BJ4#197402-197709

main22560-56030iB..BJ4#¥11,700197709-198007

24V

main22560-56040iB..BJ4#¥11,900197709-198007

12V

9111150814

main91111-50814¥180

9161160816

main91611-60816¥230

9161160820

main91611-60820¥200

9451200800

main94512-00800¥80

11 parts on this diagram · 5 diagrams in section
