ABS & VSC

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iGRJ200,UZJ200..5FC200712-201202

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-60580iGRJ200..5F200712-200811

89180SENSOR ASSY, YAWRATE

main89180-60100iUZJ200..VX200712-201202

89441ASENSOR, DECELERATION

main89440-60140iGRJ200..5F200712-200811

main89440-60150iGRJ200201202-201601

89516WIRE, SKID CONTROL SENSOR

main89516-60110iGRJ200..5F200712-200811

RH

main89516-60120iGRJ200..5F200712-200811

LH

main89516-60320iGRJ200,URJ202201202-201601

RH

main89516-60330iGRJ200,URJ202201601

LH

89516BWIRE, SKID CONTROL SENSOR

main89516-60130iGRJ200..5F200712-200811

89542SENSOR, SPEED, FRONT RH

main89542-60050iGRJ200..5F200712-200811

89543SENSOR, SPEED, FRONT LH

main89543-60050iGRJ200..5F200712-200811

89545SENSOR, SPEED, REAR RH

main89542-60050iGRJ200..5F200712-200811

89546SENSOR, SPEED, REAR LH

main89543-60050iGRJ200..5F200712-200811

90105C0053

main90105-C0053

90119C0100

main90119-C0100

91551A0616

main91551-A0616

9155380612

main91553-80612

9155380812

main91553-80812

9167180816

main91671-80816

9167380814

main91673-80814

91673A0612

main91673-A0612

92112C0616

main92112-C0616

9415010641

main94150-10641

9415180800

main94151-80800

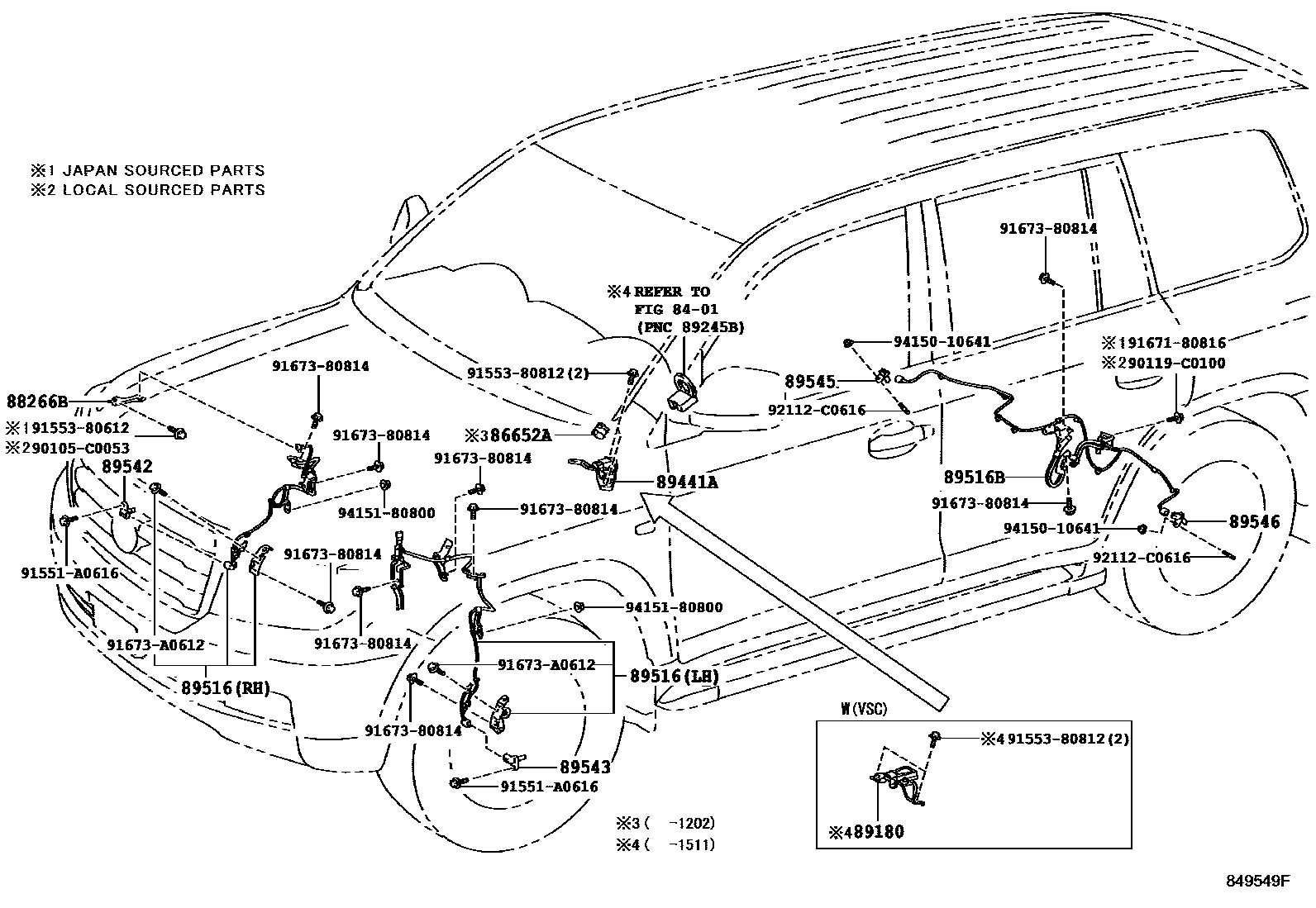

22 parts on this diagram · 1 diagram in section
