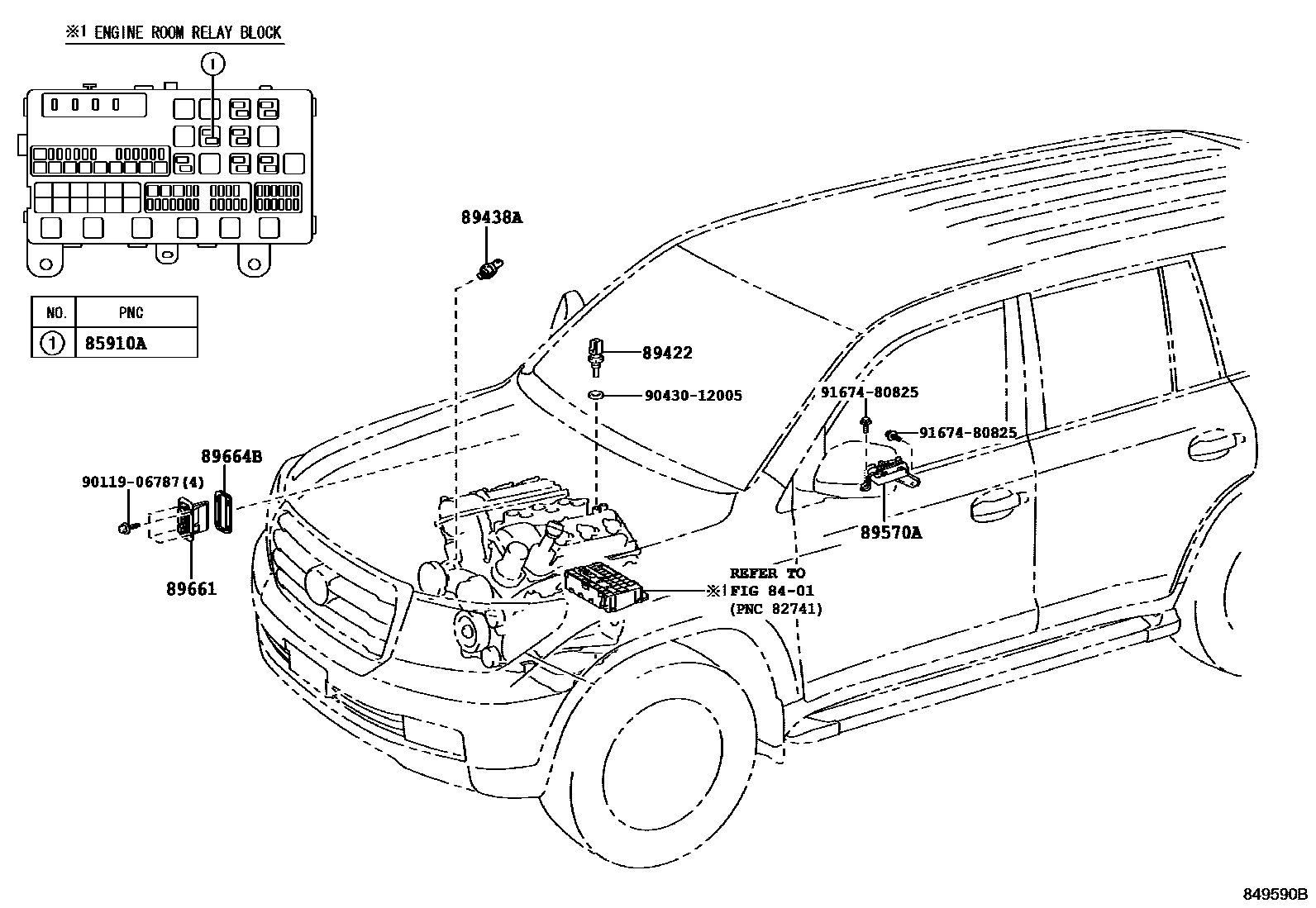

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-T2005iGRJ200..5F200712-201202

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGRJ200..5F200712-201601

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iGRJ200..5FC200712-201202

main89448-34010iUZJ200200712-200801

sub89448-34020

main89448-34020iUZJ200200801-201601

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60160iGRJ200..5F200712-201202

89661COMPUTER, ENGINE CONTROL

main89661-60G50iGRJ200..5FC200712-201202

main89661-60J20iUZJ200200712-201202

main89661-60J40iUZJ200200712-201202

EXHAUST EMISSION CONTROL-EUROPE STEP4, WITH(OBD)

main89661-60K20iGRJ200..5F200712-200811

main89661-60K70iGRJ200..5FC200811-201202

EXHAUST EMISSION CONTROL-EUROPE STEP4, WITH(OBD)

main89661-60Q70iURJ202201202-201601

main89661-60T30iGRJ200201202-201601

main89661-60T40iGRJ200201202-201601

EXHAUST EMISSION CONTROL-KUNI5, WITH(ON BOARD DIAGNOSIS)

main89661-60Z20iURJ202201601

main89666-60B30iGRJ200201601

89664BSEAL, ENGINE CONTROL COMPUTER

main89664-34010iGRJ200..5F200712-201601

9011906787

main90119-06787

9043012005

main90430-12005

9167480825

main91674-80825

10 parts on this diagram · 5 diagrams in section
