REAR FOG LAMP

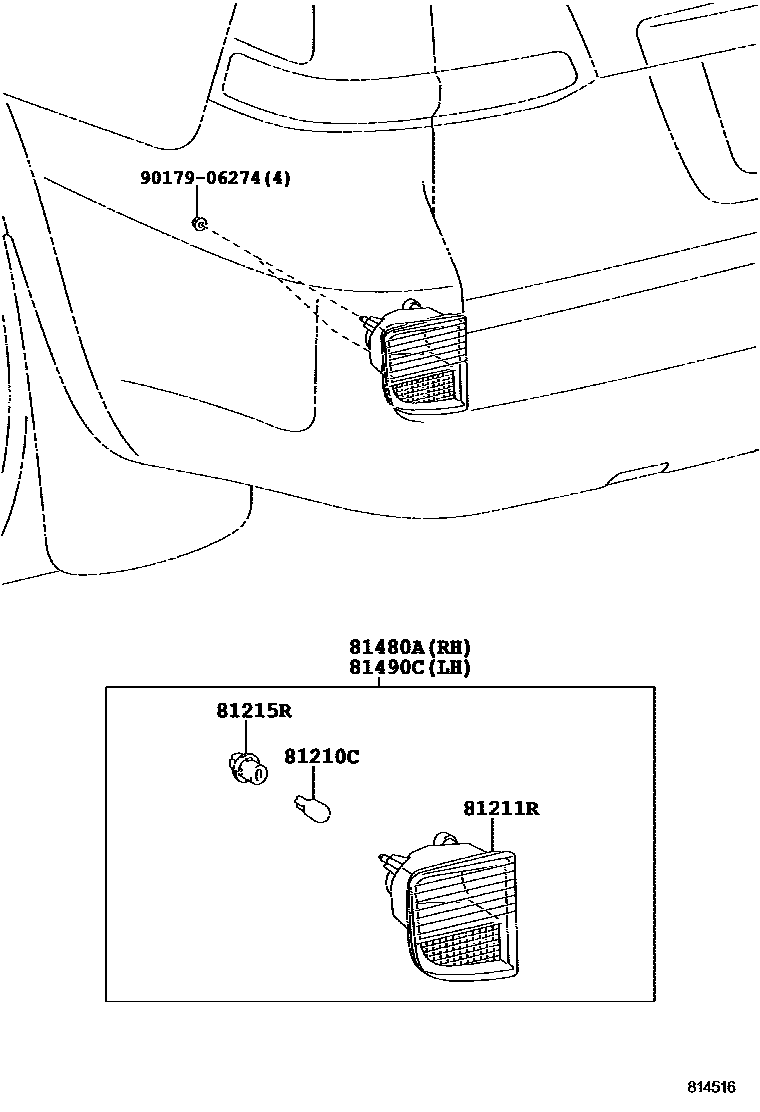

Parts diagram
81210CBULB, REAR FOG LAMP
main90981-13043i200712-201601
12V 21W
81211RLENS, REAR FOG LAMP
main81456-60030i200712-201403
LH
sub81456-60031
main81456-60031i201403-201601
LH
main81456-60070i201601
LH
main81457-60020i200712-201403
RH
sub81457-60021
main81457-60021i201403-201601
RH
main81457-60070i201601
RH
81215RSOCKET & WIRE, REAR FOG LAMP
main90075-99080i200712-201601
81480ALAMP ASSY, REAR FOG, RH
main81480-60020i200712-201402
sub81480-60021
main81480-60021i201403-201601
main81480-60070i201601
81490CLAMP ASSY, REAR FOG, LH
main81490-60030i200712-201402
sub81490-60031
main81490-60031i201403-201601
main81490-60070i201601
9017906274
main90179-06274

6 parts on this diagram · 2 diagrams in section
