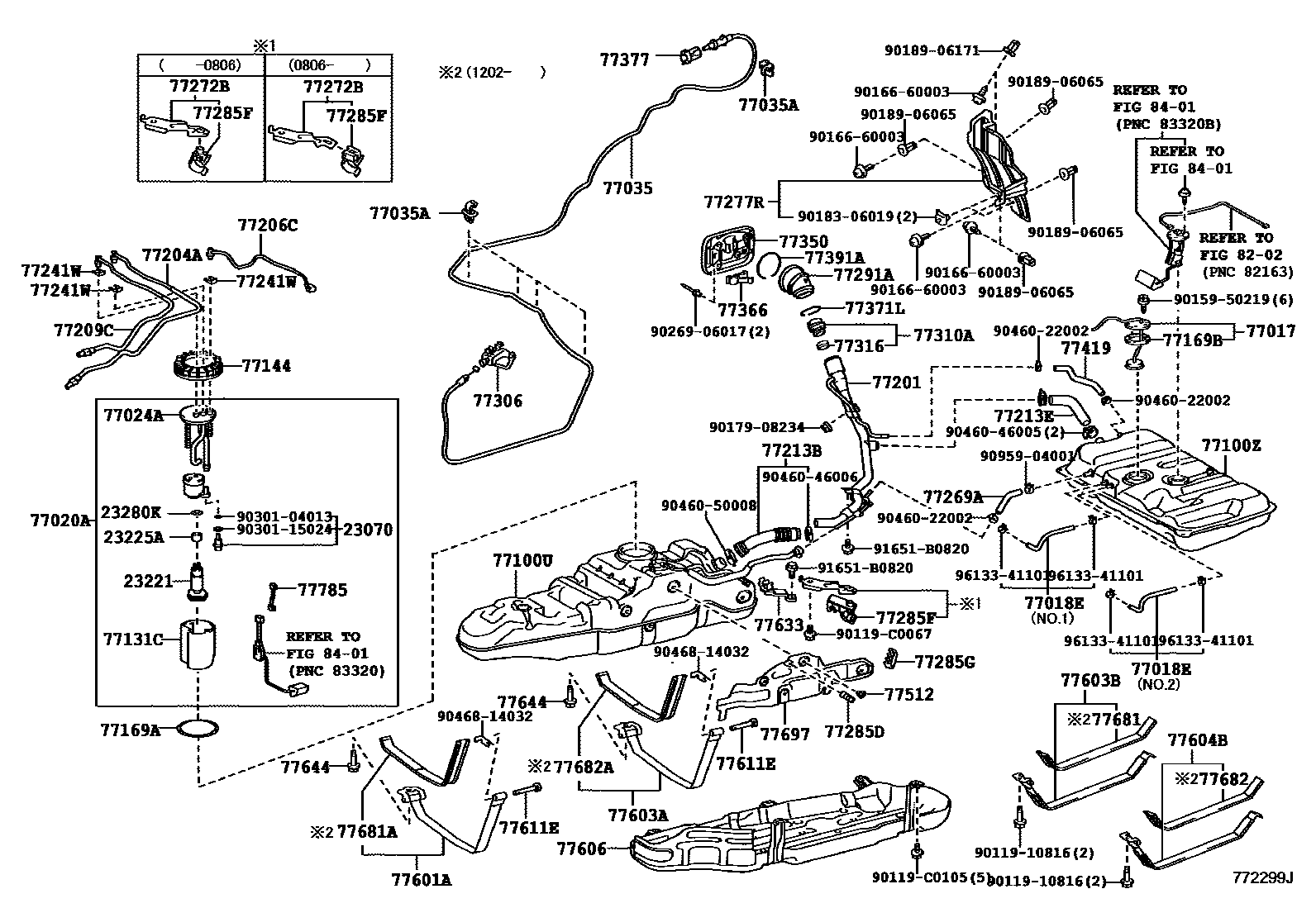

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE

23070VALVE ASSY, FUEL MAIN

main23070-38010i1GRFE,2UZFE..GRJ200,UZJ200..5FC200712-201202

23221PUMP, FUEL

main23220-38061i1URFE..URJ202201601

main23220-38070i1URFE..URJ202201202-201601

main23220-50271i1GRFE..GRJ200201601

main23220-50280i1GRFE..GRJ200201202-201601

23225ASPACER, FUEL PUMP

main23225-23010i1GRFE,2UZFE..GRJ200,UZJ200..5FC200712-201202

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-08019i1GRFE..GRJ200..5F200712-200811

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-60550iGRJ200,UZJ200..5FC200712-201202

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-60160iGRJ200,URJ202201202-201601

NO.1:REFER ILLUST.

main77018-60170iGRJ200,URJ202201202-201601

NO.2:REFER ILLUST.

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-60382iURJ202201202-201601

main77020-60400iGRJ200,UZJ200200712-200801

main77020-60401iGRJ200,UZJ200200801-200811

main77020-60402iGRJ200,UZJ200..5FC200812-201202

main77020-60550iURJ202201601-201611

main77020-60570iGRJ200201601-201611

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-60230iGRJ200..5F200712-200811

main77024-60400iGRJ200,URJ202201601

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-0G030iGRJ200,URJ202201202-201601

main77035-60140iGRJ200..5F200712-200811

77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)

main90469-06005×5iGRJ200..5F200712-200811

77100UTANK SUB-ASSY, FUEL

main77001-60820iGRJ200,UZJ200200712-200806

main77001-60821iGRJ200,URJ202201202-201601

main77001-60822iGRJ200,URJ202201611-201612

77100ZTANK SUB-ASSY, FUEL SUB

main77001-60830iGRJ200..5F200801-200811

main77001-60831iGRJ200,URJ202201611-201612

77131CSUB-TANK, FUEL, NO.1

main77131-60120iGRJ200..5F200712-200811

main77131-60170iGRJ200,URJ202201601

77144RETAINER, FUEL PUMP GAUGE

main77144-47020iGRJ200,UZJ200..5FC200712-201202

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iGRJ200..5F200712-200811

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-32010iGRJ200..5F200712-200811

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60B10iGRJ200..5F200712-200811

main77201-60B90iGRJ200,URJ202201504-201601

sub77201-60E80

sub77300-12020

sub77300-60050

77204ATUBE, FUEL TANK RETURN

main77204-60070iGRJ200..5F200712-200811

77206CTUBE SUB-ASSY, FUEL MAIN, NO.2

main77206-60460iGRJ200,UZJ200200712-200806

main77206-60461iGRJ200,URJ202201202-201601

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-60470iGRJ200,UZJ200..5FC200712-201202

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-60310iGRJ200..5F200712-200811

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-60320iGRJ200,URJ202201202-201601

77241WCLIP, TUBE JOINT

main77241-33011×3iGRJ200,URJ202201601-201611

main77241-60320×3iGRJ200..5F200712-200811

77269AHOSE, FUEL TANK BREATHER

main95313-13020iGRJ200..5F200801-200811

77272BSUPPORT, BREATHER TUBE, NO.1

main77205-60C00iGRJ200,UZJ200200712-200806

main77205-60C01iGRJ200..5F200806-200811

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-60130iGRJ200..5F200712-200811

77285DCLAMP, FUEL TUBE, NO.1

main77285-60840iGRJ200,URJ202201601-201611

77285FCLAMP, FUEL TUBE, NO.1

main77197-60030iGRJ200,UZJ200200712-200806

main77197-60031iGRJ200..5F200806-200811

77285GCLAMP, FUEL TUBE, NO.1

main77285-60870iGRJ200,UZJ200..5FC200712-201202

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-60120iGRJ200,UZJ200..5FC200712-201202

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-28060-E0iGRJ200,UZJ200..5FC200712-201202

DK. BROWN,TRIM4#

main77306-58020-A0iGRJ200,URJ202201202-201601

SHELL,TRIM0#

main77306-58020-A2iGRJ200,URJ202201601-201612

FLAXEN,TRIM0#

77310ACAP ASSY, FUEL TANK

main77300-0F010iGRJ200,URJ202201202-201601

(L)

main77300-52030iGRJ200,URJ202201202-201601

(J)

77316GASKET, FUEL TANK CAP

main77316-0F020iGRJ200,URJ202201202-201601

(L)

main77316-52040iGRJ200,URJ202201202-201601

(J)

77350LID ASSY, FUEL FILLER OPENING

main77350-60090iGRJ200..5F200712-200811

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-35040iGRJ200,UZJ200..5FC200712-201202

77371LRING, FUEL TANK FILLER PIPE SHIELD

main77371-35010iGRJ200,UZJ200..5FC200712-201202

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-02030iGRJ200,URJ202201601

main77377-35010iGRJ200,UZJ200..5FC200712-201202

77391ARING, FUEL INLET BOX

main77391-35020iGRJ200,URJ202201202-201601

main77391-60070iGRJ200,URJ202201601

77419HOSE, FUEL, NO.3

main77419-60020iGRJ200..5F200712-200811

77512BRACKET, FUEL TANK, REAR

main77512-35140×4iGRJ200,URJ202201611-201612

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-60310iGRJ200,UZJ200..5FC200712-201202

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-60110iGRJ200..5F200712-200811

77603BBAND SUB-ASSY, FUEL TANK, NO.2 RH

main77603-60040iGRJ200..5F200712-200811

77604BBAND SUB-ASSY, FUEL TANK, NO.2 LH

main77604-60040iGRJ200..5F200712-200811

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60170iGRJ200..5F200712-200811

77611EPIN, FUEL TANK BAND

main77653-35040×2iGRJ200..5F200712-200811

77633STAY, FUEL TANK

main77633-60070iGRJ200..5F200712-200811

77644BOLT, FUEL TANK

main77644-35030×2iGRJ200..5F200712-200811

77681SEAT, FUEL TANK BAND, RH

main77681-21010iGRJ200,URJ202201202-201601

77681ASEAT, FUEL TANK BAND

main77681-60160iGRJ200,URJ202201202-201601

77682SEAT, FUEL TANK BAND, LH

main77681-21010iGRJ200,URJ202201202-201601

77682ASEAT, FUEL TANK BAND, NO.2

main77681-60170iGRJ200,URJ202201202-201601

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-60010iGRJ200..5F200712-200811

77785HARNESS, FUEL PUMP

main77785-60010iGRJ200,URJ202201202-201601

sub77785-60011

8202

8401

9011910816

main90119-10816

90119C0067

main90119-C0067

90119C0105

main90119-C0105

9015950219

main90159-50219

9016660003

main90166-60003

9017908234

main90179-08234

9018306019

main90183-06019

9018906065

main90189-06065

9018906171

main90189-06171

9026906017

main90269-06017

9030104013

main90301-04013

9030115024

main90301-15024

9046022002

main90460-22002

9046046005

main90460-46005

9046046006

main90460-46006

9046050008

main90460-50008

9046814032

main90468-14032

9095904001

main90959-04001

91651B0820

main91651-B0820

9613341101

main96133-41101
