MOULDING

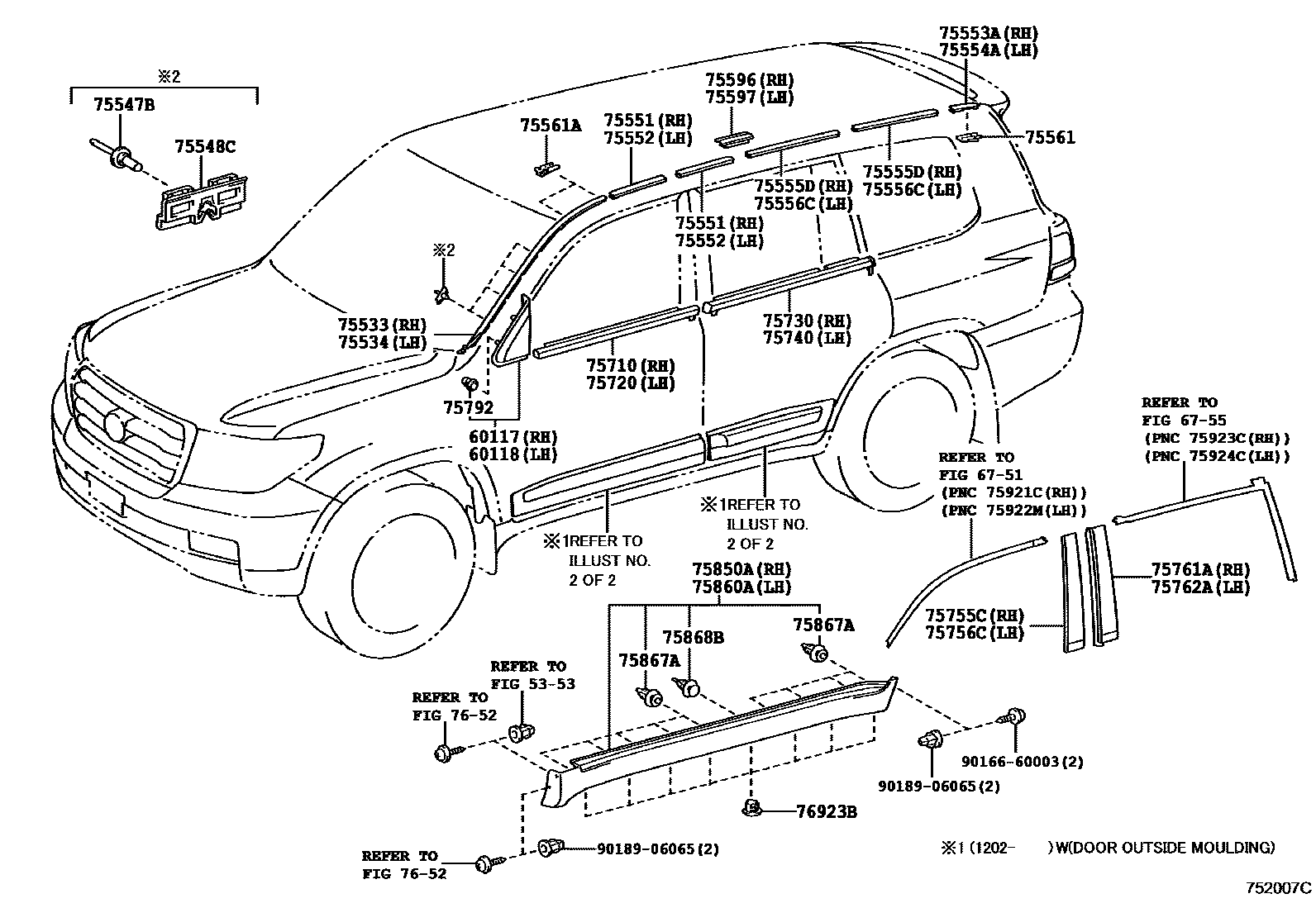

Parts diagram
5353
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
main60117-60010i200712-201202
main60117-60020i201202-201601
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
main60118-60010i200712-201202
main60118-60020i201202-201601
6751
6755
75533MOULDING, WINDSHIELD, OUTSIDE RH
main75533-60080i200712-201008
sub75533-60100
main75533-60081i201008-201104
sub75533-60082
main75533-60082i201104-201601
75534MOULDING, WINDSHIELD, OUTSIDE LH
main75534-60070i200712-201008
sub75534-60080
main75534-60071i201008-201104
sub75534-60072
main75534-60072i201104-201601
75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
main75547-51021i200712-201601
75548CPAD, WINDSHIELD MOULDING, NO.4
main75548-60020i200712-201002
sub75548-60021
main75548-60021i201003-201601
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-60110i200712-201601
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75551-60110i200712-201601
NO PAINT REQ.
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
main75553-60040i200712-201601
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
main75554-60040i200712-201601
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
main75555-60020i200712-201601
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
main75555-60020i200712-201601
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
main75561-42030i200712-200807
sub75561-60010
main75561-60010i200807-201202
sub75561-60030
main75561-60030i201202-201601
sub75561-60031
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
main75561-42030i200712-200807
sub75561-60010
main75561-60010i200807-201202
sub75561-60030
main75561-60030i201202-201601
sub75561-60031
75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
main75596-0R030i201601
main75596-35030i200712-201601
75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
main75596-0R030i201601
main75596-35030i200712-201601
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-60070i200712-201601
main75710-60080i201601
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-60070i200712-201601
main75720-60080i201601
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-60050i200712-201601
main75730-60080i201601
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-60050i200712-201601
main75740-60080i201601
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
main75755-60040i200712-201202
main75755-60060i201202-201601
sub75755-60061
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
main75756-60040i200712-201202
main75756-60060i201202-201601
sub75756-60061
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
main75761-60040i200712-201202
NO PAINT REQ.
main75761-60060i201202-201601
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
main75762-60040i200712-201202
NO PAINT REQ.
main75762-60060i201202-201601
NO PAINT REQ.
75792CLIP, DOOR WINDOW FRAME MOULDING
main90044-67440i200712-201601
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
main75850-60040-A1i201601-201612
WHITE PEARL CS.,070
main75850-60040-A2i200712-201601
WHITE,056
main75850-60040-C0i200712-201612
BLACK,202
main75850-60040-G1i200712-201612
DARK GREEN MC.,6R4
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
main75860-60040-A1i201601-201612
WHITE PEARL CS.,070
main75860-60040-A2i200712-201601
WHITE,056
main75860-60040-C0i200712-201612
BLACK,202
main75860-60040-G1i200712-201612
DARK GREEN MC.,6R4
75867ACLIP, ROCKER PANEL MOULDING
main75867-30130i200712-201601
75868BCLIP, ROCKER PANEL MOULDING, NO.2
main75868-60020i200712-201601
7652
76923BRETAINER, SIDE MUDGUARD
main76924-13020i200712-201601
9016660003
main90166-60003
9018906065
main90189-06065

36 parts on this diagram · 3 diagrams in section
