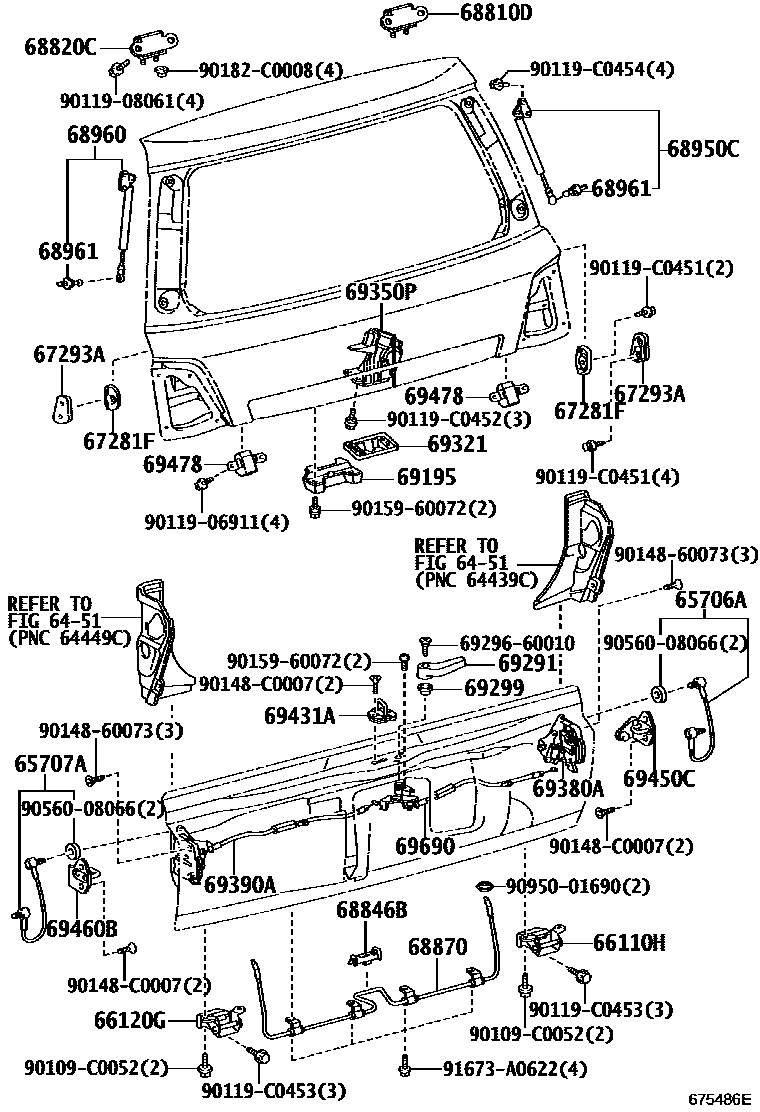

BACK DOOR LOCK & HINGE

0001 1 0002 1 0003 1POWER BACK DOOR PARTS

6451

65706ASTAY SUB-ASSY, TAIL GATE, RH

main65706-60030iGRJ200,UZJ200..5FC200712-201612

sub65706-60032

65707ASTAY SUB-ASSY, TAIL GATE, LH

main65706-60030iGRJ200..5F200712-201612

sub65706-60032

66110HHINGE ASSY, TAIL GATE, RH

main66110-60030iGRJ200..5F200712-201601

sub66110-60031

main66110-60031iGRJ200,URJ202201601

66120GHINGE ASSY, TAIL GATE, LH

main66110-60030iGRJ200..5F200712-201601

sub66110-60031

main66110-60031iGRJ200;URJ202..VX201601

main66120-60021iURJ202..VXR201601

67281FSTOPPER, BACK DOOR, LOWER

main67281-60040iGRJ200..5F200712-201601

67293ACUSHION, BACK DOOR STOPPER

main67293-60050iGRJ200..5F200712-201601

68810DHINGE ASSY, BACK DOOR, RH

main68810-28040iGRJ200..5F200712-201601

sub68810-28041

main68810-60021iGRJ200,URJ202201601-201612

PAD T=1.0

main68810-60031iGRJ200,URJ202201601-201612

PAD T=1.5

main68810-60041iGRJ200,URJ202201601-201612

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-28040iGRJ200..5F200712-201601

sub68810-28041

main68810-60021iGRJ200,URJ202201601-201612

PAD T=1.0

main68810-60031iGRJ200,URJ202201601-201612

PAD T=1.5

main68810-60041iGRJ200,URJ202201601-201612

PAD T=2.0

68846BGUIDE, BACK DOOR TORSION BAR

main68846-60010iGRJ200,UZJ200..5FC200712-201601

68870BAR ASSY, BACK DOOR LOWER TORSION

main68870-60020iGRJ200..5F200712-201601

sub68870-60021

main68870-60050iURJ202..VXR201601

sub68870-60051

68950CSTAY ASSY, BACK DOOR, RH

main68950-0WD80iGRJ200,URJ202..GXR,VX201609-201610

sub68950-0WD81

main68950-0WD81iGRJ200,URJ202..GXR,VX201610

main68950-0WD90iGRJ200..VXR201609-201610

sub68950-0WD91

main68950-0WD91iGRJ200..VXR201610

main68950-0WE10iURJ202..VXR201609-201610

sub68950-0WE11

main68950-0WE11iURJ202..VXR201610

main68950-69095iGRJ200,UZJ200..5FC200712-200907

main68950-69155iGRJ200,UZJ200200907-201207

sub68950-69205

main68950-69205iGRJ200,URJ202201208-201601

main68950-69245iGRJ200,URJ202..GXR,VX201601-201609

main68950-69255iGRJ200..VXR201601-201609

main68950-69275iURJ202..VXR201601-201609

68960STAY ASSY, BACK DOOR, LH

main68960-0WD80iGRJ200,URJ202..GXR,VX201609-201610

sub68960-0WD81

main68960-0WD81iGRJ200,URJ202..GXR,VX201610

main68960-0WD90iGRJ200..VXR201609-201610

sub68960-0WD91

main68960-0WD91iGRJ200..VXR201610

main68960-0WE10iURJ202..VXR201609-201610

sub68960-0WE11

main68960-0WE11iURJ202..VXR201610

main68960-69055iGRJ200..5F200712-200907

main68960-69115iGRJ200,URJ202200907-201207

sub68960-69155

main68960-69155iGRJ200,URJ202201208-201601

main68960-69195iGRJ200,URJ202..GXR,VX201601-201609

main68960-69205iGRJ200..VXR201601-201609

main68960-69225iURJ202..VXR201601-201609

68961BOLT, BACK DOOR STAY

main68961-12050iGRJ200..5F200712-201601

69195GRIP, BACK DOOR

main69195-60010iGRJ200,UZJ200200712-200809

sub69195-60011

main69195-60011iGRJ200..5F200810-201601

69291HANDLE ASSY, BACK DOOR INSIDE

main69291-60020iGRJ200,UZJ200200712-200801

sub69291-60030

main69291-60030iGRJ200..5F200802-201601

69299GROMMET, BACK DOOR HANDLE

main69299-60010iGRJ200..5F200712-201601

69321COVER, BACK DOOR LOCK

main69321-60010iGRJ200..5F200712-201601

main69321-60030iGRJ200,URJ202201601

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-60140iGRJ200..5F200712-201601

sub69350-60141

main69350-60191iURJ202..VXR201601-201612

main69350-60200iGRJ200;URJ202..VX201601-201612

69380ALOCK ASSY, TAIL GATE, LOWER RH

main69380-60060iGRJ200..5F200712-201601

sub69380-60061

main69380-60061iGRJ200;URJ202..VX201601

main69380-60071iURJ202..VXR201601

69390ALOCK ASSY, TAIL GATE, LOWER LH

main69390-60050iGRJ200..5F200712-201601

sub69390-60051

main69390-60051iGRJ200;URJ202..VX201601

main69390-60061iURJ202..VXR201601

69431ASTRIKER, REAR SWING GATE LOCK

main69431-60010iGRJ200..5F200712-201601

69450CSTRIKER ASSY, BACK DOOR LOCK, RH

main69450-60030iGRJ200,UZJ200200712-200809

main69450-60040iGRJ200..5F200809-201601

69460BSTRIKER ASSY, BACK DOOR LOCK, LH

main69460-60030iGRJ200,UZJ200200712-200809

main69460-60040iGRJ200..5F200809-201601

69478CUSHION, BACK DOOR LOWER STOPPER

main69042-60010iGRJ200,UZJ200200712-200809

main69478-60020iGRJ200..5F200809-201601

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-60050iGRJ200..5F200712-201601

main69690-60060iURJ202..VXR201601

6929660010SCREW, DOOR INSIDE HANDLE

main69296-60010

90109C0052

main90109-C0052

9011906911

main90119-06911

9011908061

main90119-08061

90119C0451

main90119-C0451

90119C0452

main90119-C0452

90119C0453

main90119-C0453

90119C0454

main90119-C0454

9014860073

main90148-60073

90148C0007

main90148-C0007

9015960072

main90159-60072

90182C0008

main90182-C0008

9056008066

main90560-08066

9095001690

main90950-01690

91673A0622

main91673-A0622

41 parts on this diagram · 3 diagrams in section
