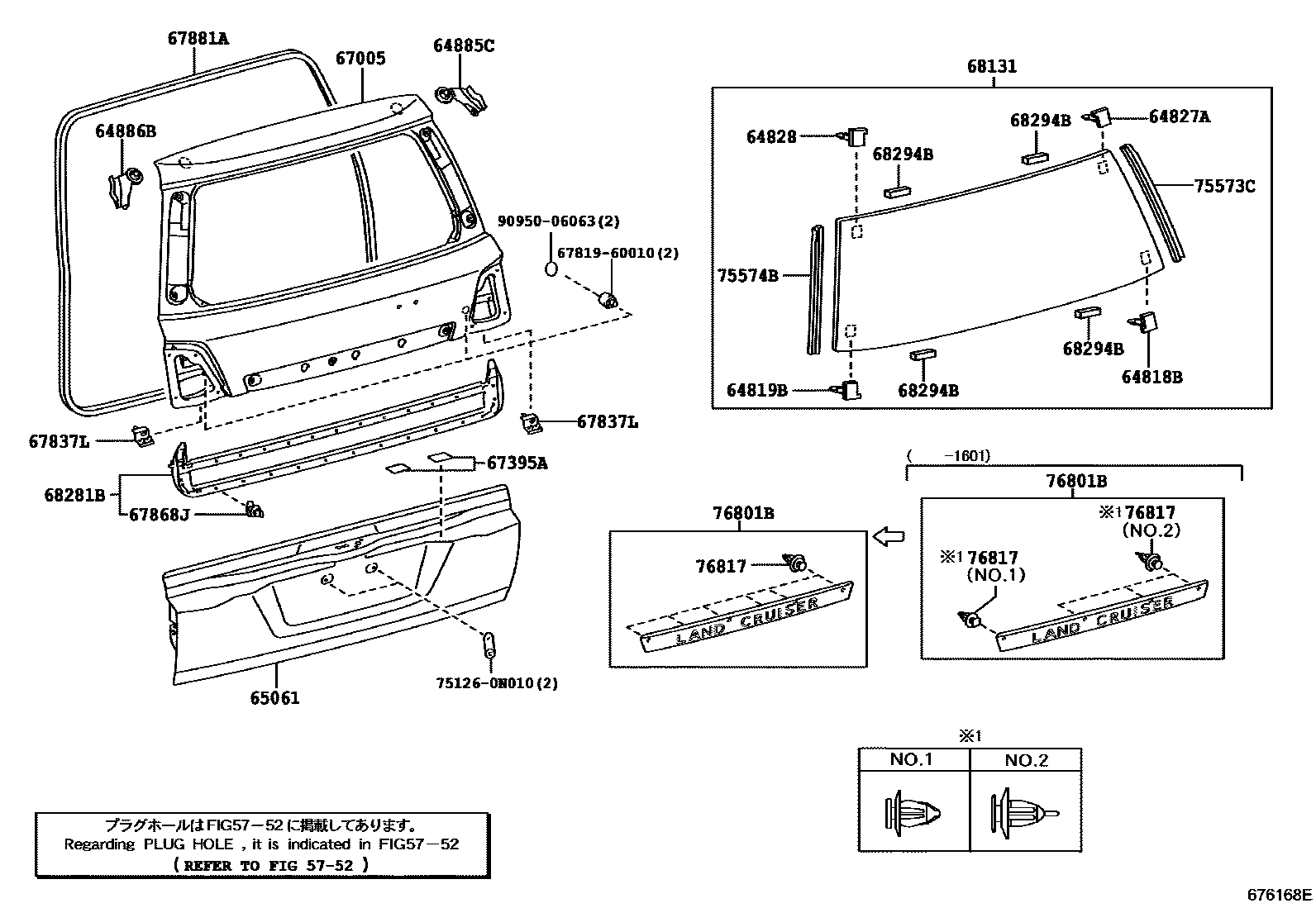

BACK DOOR PANEL & GLASS
5752
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
64827ACLIP, BACK WINDOW GLASS, RH
64828CLIP, BACK WINDOW GLASS, LH
64885CCHANNEL, BACK DOOR GLASS, RH
64886BCHANNEL, BACK DOOR GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
VX(SPECIAL) PACKAGE
AUDIO-EMV DVD AM/FM 9SPEAKER
VX(SPECIAL) PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER
sub67005-60J51
sub67005-60J61
sub67005-60K21
67395APROTECTOR, BACK DOOR, LOWER
67837LSEAL, DOOR DUST PROOF
67868JRETAINER, DOOR WEATHERSTRIP
PINK
WHITE
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*UVCEHT,T=3.1,GREEN
*UVCT,T=3.5,GREEN
*UVCEHT,T=3.1,GREEN
68294BDAM, BACK DOOR GLASS ADHESIVE
75573CMOULDING, BACK WINDOW, OUTSIDE
75574BMOULDING, BACK WINDOW, OUTSIDE LH
76817CLIP, BACK DOOR OUTSIDE GARNISH
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
6781960010PAD, BACK DOOR OUTSIDE PANEL
main67819-60010
751260N010STAY, REAR LICENSE PLATE BRACKET, LOWER
main75126-0N010
9095006063
main90950-06063
23 parts on this diagram · 2 diagrams in section
