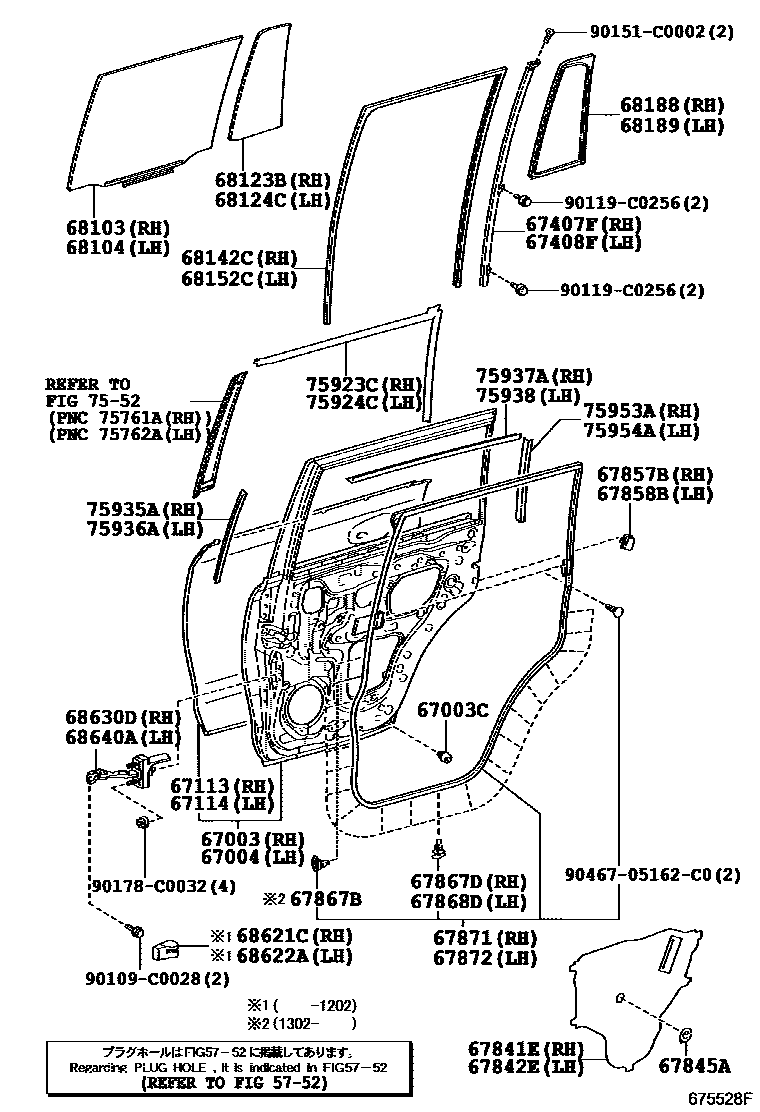

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-60410iGRJ200,UZJ200..5FC200712-201202

main67003-60411iGRJ200,URJ202201501-201601

main67003-60540iGRJ200,URJ202..GXR,VX201601

main67003-60560iGRJ200,URJ202..VXR201601

main67003-60430iURJ202201202-201412

VX(SPECIAL) PACKAGE

main67003-60431iURJ202201501-201601

VX(SPECIAL) PACKAGE

67003CCUSHION, REAR DOOR PANEL

main90541-09069×2iGRJ200,URJ202201202-201601

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-60410iGRJ200,URJ202201202-201412

main67004-60411iGRJ200,URJ202201501-201601

main67004-60540iGRJ200,URJ202..GXR,VX201601

main67004-60560iGRJ200,URJ202..VXR201601

main67004-60430iURJ202201202-201412

VX(SPECIAL) PACKAGE

main67004-60431iURJ202201501-201601

VX(SPECIAL) PACKAGE

67113PANEL, REAR DOOR, OUTER RH

main67113-60210iGRJ200,URJ202201202-201601

main67113-60280iGRJ200,URJ202..GXR,VX201601

main67113-60290iGRJ200,URJ202..VXR201601

main67113-60260iURJ202201202-201601

VX(SPECIAL) PACKAGE

67114PANEL, REAR DOOR, OUTER LH

main67114-60210iGRJ200..5F200712-200811

main67114-60280iGRJ200,URJ202..GXR,VX201601

main67114-60290iGRJ200,URJ202..VXR201601

main67114-60260iURJ202201202-201601

VX(SPECIAL) PACKAGE

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-60060iGRJ200..5F200712-200811

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-60060iGRJ200,URJ202201601

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0G020iGRJ200,URJ202201601

main67841-60110iGRJ200..5F200712-200811

main67841-60140iGRJ200,URJ202201505-201601

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0G020iGRJ200,URJ202201601

main67842-60060iGRJ200,URJ202201202-201504

main67842-60090iGRJ200,URJ202201505-201601

67845ASUB-SHEET, REAR DOOR SERVICE HOLE

main67846-60010×2iGRJ200,URJ202201601

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-60030iGRJ200..5F200712-200811

67858BPROTECTOR, REAR DOOR PANEL, LH

main67857-60030iGRJ200..5F200712-200811

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-52010×2iGRJ200,URJ202201601

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×19iGRJ200,UZJ200..5FC200712-201202

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×18iGRJ200,URJ202201302-201601

67871WEATHERSTRIP, REAR DOOR, RH

main67871-60110iURJ202201202-201601

main67871-60120iGRJ200..5F200712-200811

67872WEATHERSTRIP, REAR DOOR, LH

main67872-60110iURJ202201202-201601

main67872-60120iGRJ200..5F200712-200811

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-60350iGRJ200..5F200712-200811

*UVCT,T=4.0,GREEN

main68103-60351iGRJ200,URJ202201202-201211

*UVCT,T=4.0,GREEN

sub69905-0C020

sub69975-33010

main68113-60301iGRJ200,URJ202201211-201601

*UVCT,T=4.0,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-60350iGRJ200..5F200712-200811

*UVCT,T=4.0,GREEN

main68104-60351iGRJ200,URJ202201202-201211

*UVCT,T=4.0,GREEN

sub69906-0C020

sub69975-33010

main68114-60301iGRJ200,URJ202201211-201601

*UVCT,T=4.0,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0G050iGRJ200,URJ202201202-201601

*UVCT,T=4.0,GREEN

main68123-60290iGRJ200..5F200712-200811

*UVCT,T=4.0,GREEN

sub68123-60291

68124CGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0G050iGRJ200,URJ202201601

main68124-60290iGRJ200..5F200712-200811

*UVCT,T=4.0,GREEN

sub68124-60291

68142CRUN, REAR DOOR GLASS, RH

main68142-60060iGRJ200..5F200712-200811

68152CRUN, REAR DOOR GLASS, LH

main68152-60050iGRJ200,URJ202201601

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-60060iGRJ200,URJ202201202-201601

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-60060iGRJ200..5F200712-200811

68621CCOVER, REAR DOOR CHECK, RH

main68621-53010iGRJ200..5F200712-200811

68622ACOVER, REAR DOOR CHECK, LH

main68622-53010iGRJ200..5F200712-200811

68630DCHECK ASSY, REAR DOOR, RH

main68630-60110iGRJ200..5F200712-200811

main68630-60111iGRJ200,UZJ200201005-201202

main68630-60130iGRJ200,URJ202201202-201409

main68630-60131iGRJ200,URJ202201410-201601

sub68630-60132

68640ACHECK ASSY, REAR DOOR, LH

main68640-60100iGRJ200..5F200712-200811

main68640-60101iGRJ200,UZJ200201005-201202

main68640-60110iGRJ200,URJ202201202-201409

main68640-60111iGRJ200,URJ202201410-201601

sub68640-60112

7552

75923CTAPE, BLACK OUT, NO.2 RH

main75923-60020iGRJ200..5F200712-200811

75924CTAPE, BLACK OUT, NO.2 LH

main75924-60020iGRJ200..5F200712-200811

75935ATAPE, BLACK OUT, NO.6 RH

main75935-60010iGRJ200..5F200712-200811

75936ATAPE, BLACK OUT, NO.6 LH

main75936-60010iGRJ200..5F200712-200811

75937ATAPE, BLACK OUT, INNER UPPER RH

main75937-60010iGRJ200..5F200712-200811

75938TAPE, BLACK OUT, INNER UPPER LH

main75938-60010iGRJ200..5F200712-200811

75953ATAPE, BLACK OUT, INNER REAR RH

main75953-60010iGRJ200..5F200712-200811

75954ATAPE, BLACK OUT, INNER REAR LH

main75954-60010iGRJ200..5F200712-200811

90109C0028

main90109-C0028

90119C0256

main90119-C0256

90151C0002

main90151-C0002

90178C0032

main90178-C0032

9046705162C0

main90467-05162C0

43 parts on this diagram · 2 diagrams in section
