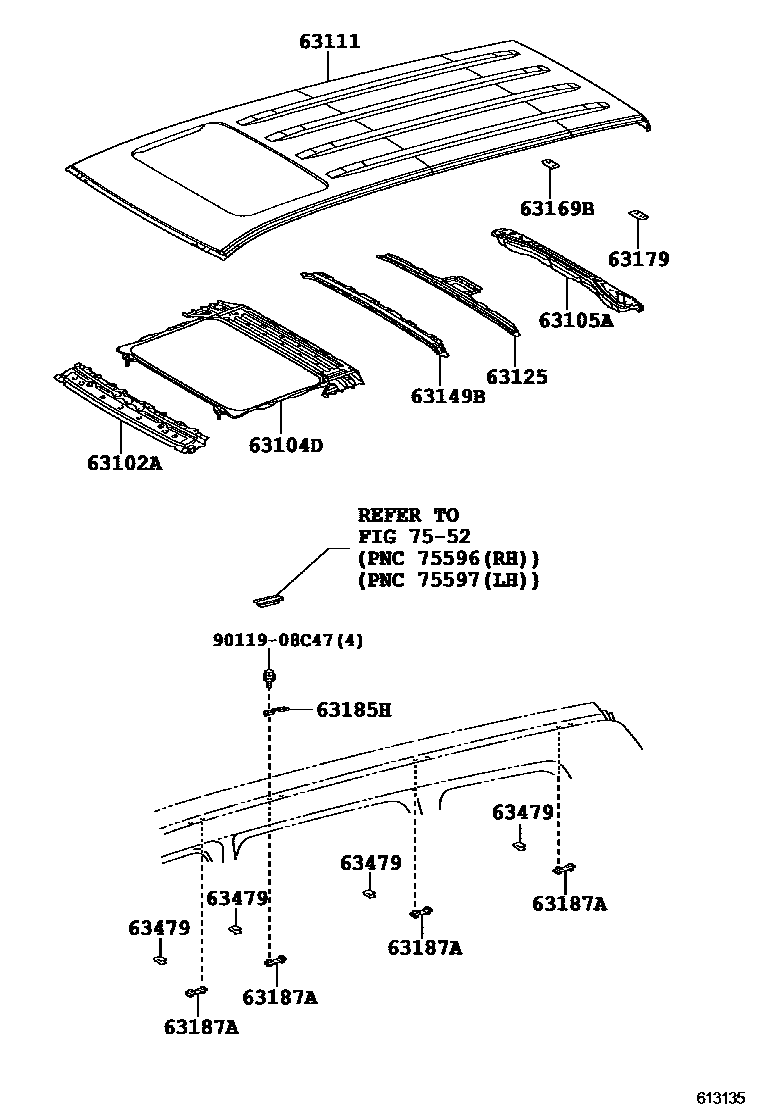

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1SLIDING ROOF PARTS 0003 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60110iGRJ200,URJ202200712-201601

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-60060iGRJ200..5F200712-201601

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60280iGRJ200..5F200712-201601

63111PANEL, ROOF

main63111-60580iGRJ200..5F200712-201601

63125REINFORCEMENT, ROOF PANEL, NO.2

main63107-60040iGRJ200..5F200712-201601

63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR

main63149-60010iGRJ200,URJ202200712-201601

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-60020iGRJ200,UZJ200..5FC200712-201601

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-60010iGRJ200..5F200712-201601

63185HBRACKET, ROOF RACK

main63185-0G010iGRJ200,URJ202201601

main63185-42020iGRJ200,UZJ200..5FC200712-201601

63187ABRACKET, ROOF RACK, REAR

main63187-60040iGRJ200,URJ202200712-201601

63479RETAINER, ROOF INNER RACK

main63479-60020iGRJ200..5F200712-201601

7552

9011908C47

main90119-08C47

13 parts on this diagram · 3 diagrams in section
