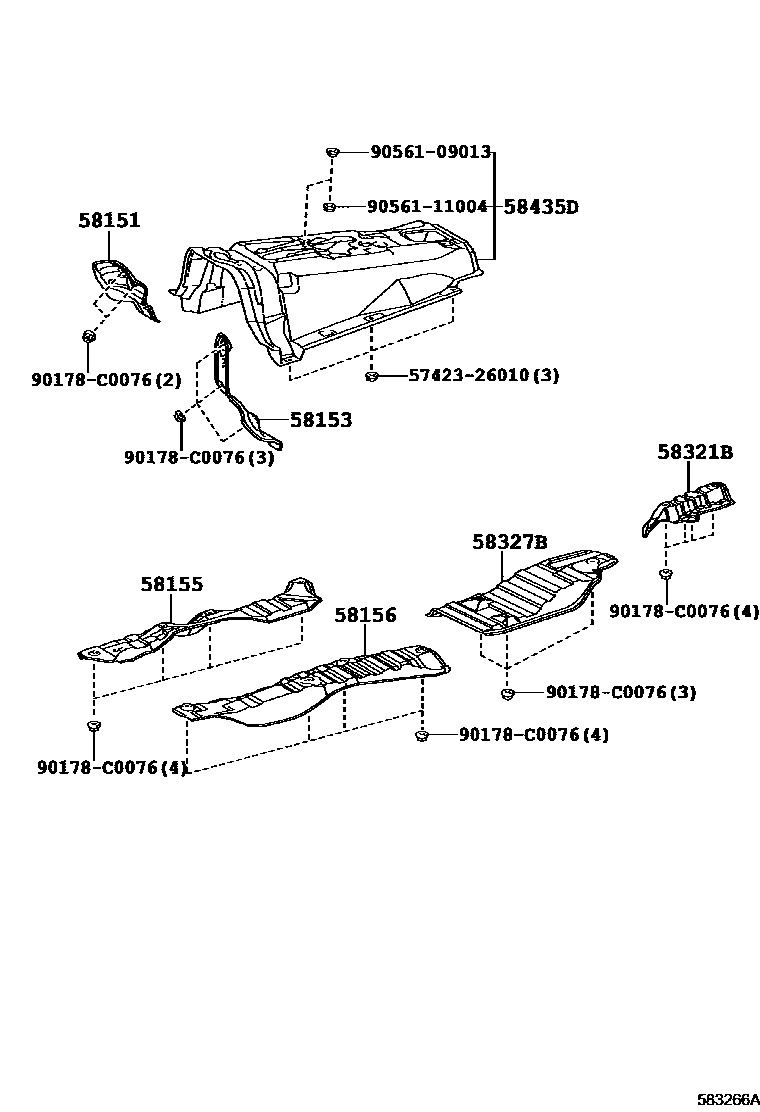

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-60110iGRJ200,URJ202200712-201601

sub58151-60111

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-60100iGRJ200..5F200712-201601

sub58153-60101

main58153-60110iURJ202201202-201601

EXHAUST EMISSION CONTROL-KUNI5, WITH(ON BOARD DIAGNOSIS)

sub58153-60111

main58153-60110iUZJ200200712-201202

sub58153-60111

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-60060iGRJ200..5F200712-201112

sub58155-60061

main58155-60061iGRJ200,UZJ200201201-201601

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-60020iGRJ200,UZJ200..5FC200712-201109

sub58156-60021

main58156-60021iGRJ200,UZJ200201110-201112

sub58156-60022

main58156-60022iGRJ200,UZJ200201201-201601

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-60060iGRJ200..5F200712-201601

sub58321-60061

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-60090iGRJ200..5F200712-201601

sub58327-60091

58435DSILENCER, FRONT FLOOR, CENTER

main58563-60050iGRJ200..5F200712-201601

5742326010BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-26010

90178C0076

main90178-C0076

9056109013

main90561-09013

9056111004

main90561-11004

11 parts on this diagram · 1 diagram in section
