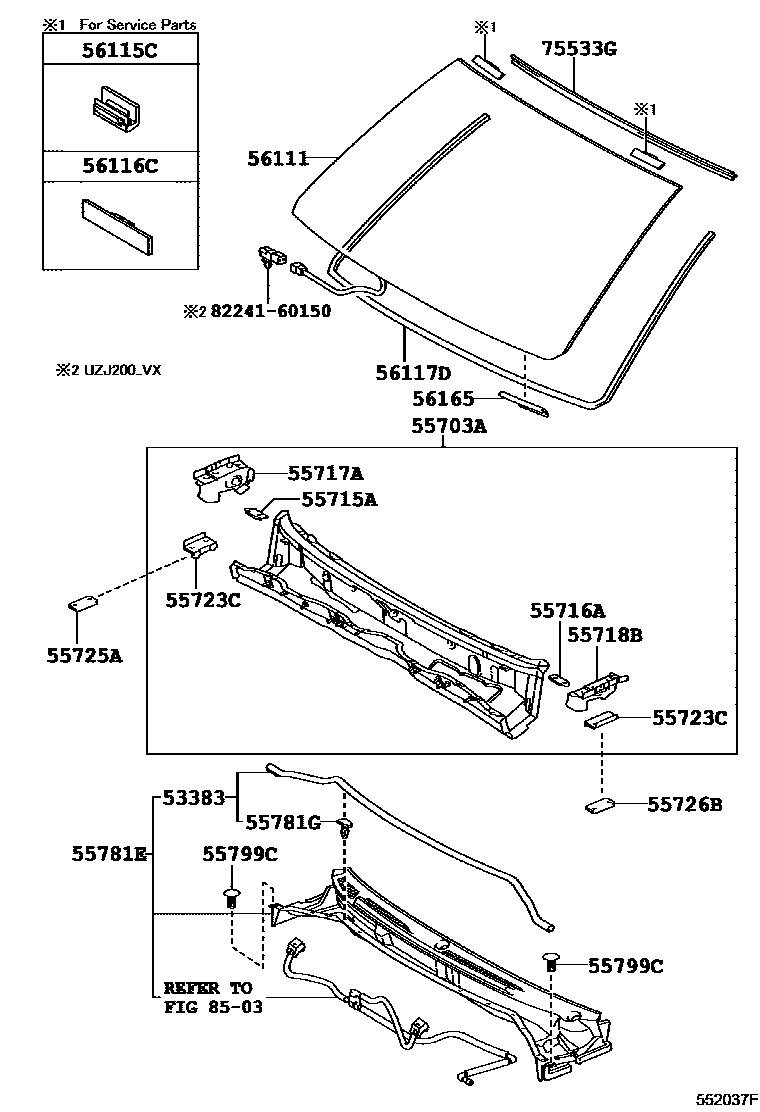

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
55703APANEL SUB-ASSY, COWL TOP, INNER
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55723CREINFORCEMENT, COWL TOP SIDE, RH
55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH
55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
*LAM,T=5.36,DK.BLUE
*EHL,T=5.36,DK.BLUE,VX(SPECIAL) PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER
sub56101-0G902
*EHL,T=5.36,DK.BLUE,VX(SPECIAL) PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER
*LAM,T=5.36,GREEN,WINDSHIELD GLASS-TOP SHADE BAND GLASS
sub56101-60924
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
L=2914,VX(SPECIAL) PACKAGE&AUDIO-EMV DVD AM/FM 9SPEAKER
sub56117-64010
56165COVER, FRONT WINDOW INNER MOULDING, LH
8503
8224160150WIRING ASSY, HEADLAMP JUNCTION
main82241-60150
20 parts on this diagram · 2 diagrams in section
