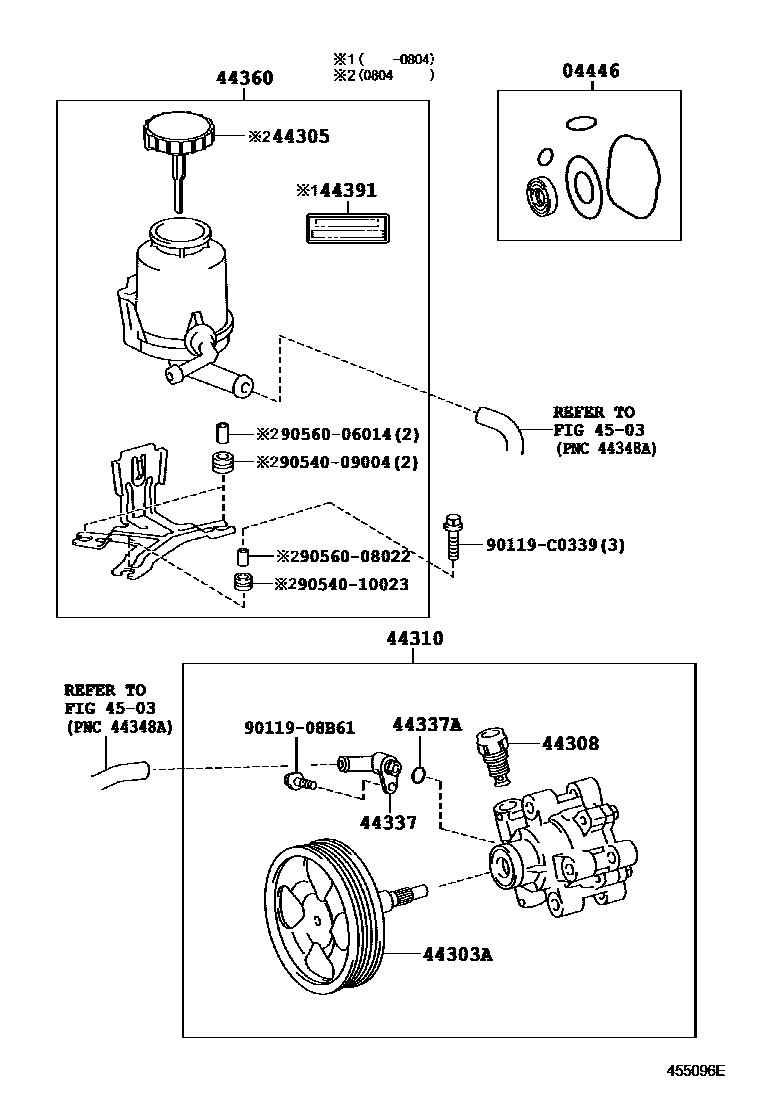

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-60260iGRJ200,UZJ200..5FC200712-201601

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-60010iUZJ200200712-201202

main44303-60020iGRJ200..5F200712-201601

main44303-60030iURJ202201202-201601

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-37030iGRJ200..5F200804-201206

sub44305-37031

main44305-37031iGRJ200,URJ202201207-201601

44308UNION SUB-ASSY, PRESSURE PORT

main44308-60170iGRJ200,UZJ200..5FC200712-201601

main44308-60220iURJ202201202-201601

44310PUMP ASSY, VANE

main44310-60470iGRJ200..5FC200712-201601

main44310-60480iUZJ200200712-201202

main44310-60490iURJ202201202-201601

44337UNION, POWER STEERING SUCTION PORT

main44337-60200iGRJ200200712-201601

main44337-60210iUZJ200200712-201202

main44337-60220iURJ202201202-201601

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-15025iGRJ200..5F200712-201601

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-60290iGRJ200,URJ202200804-201206

sub44360-60291

main44360-60291iGRJ200,URJ202201207-201601

main44360-60310iGRJ200,UZJ200200712-200804

sub44360-60290

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-33010iGRJ200,UZJ200200712-200804

4503

9011908B61

main90119-08B61

90119C0339

main90119-C0339

9054009004

main90540-09004

9054010023

main90540-10023

9056006014

main90560-06014

9056008022

main90560-08022

16 parts on this diagram · 1 diagram in section
