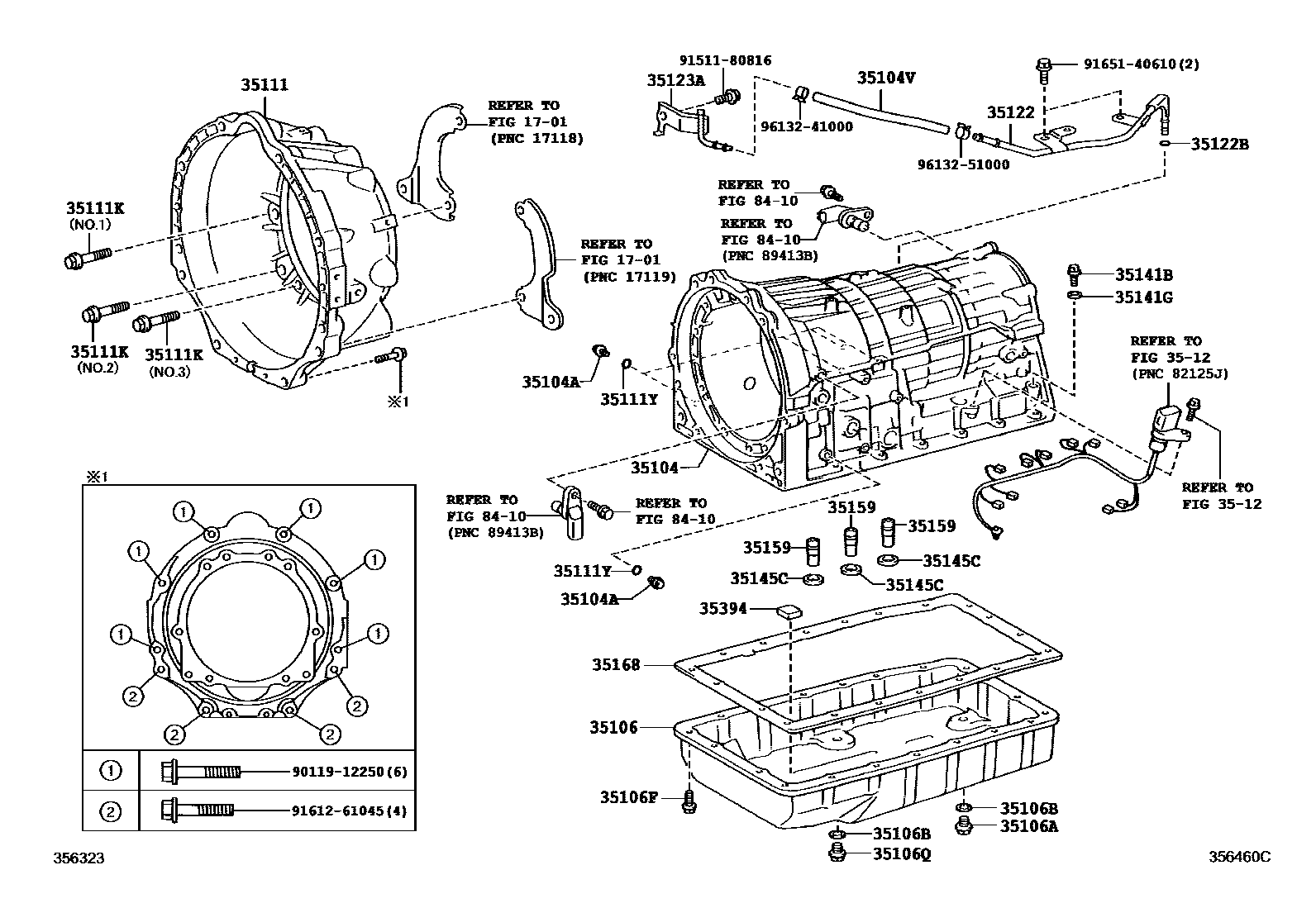

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A750F 0002 1A750F 0003 1AB60F

1701

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-60221iGRJ200,UZJ200..5FC200712-201202

main35104-60250iURJ202201601

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×5iGRJ200,URJ202201202-201601

35104VHOSE (FOR BREATHER PLUG)

main35121-48030iURJ202201202-201601

main35121-71010iGRJ200201601

main90445-10020iUZJ200200712-201202

main90445-11154iGRJ200201202-201601

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-60180iGRJ200201601

main35106-60220iURJ202201202-201601

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGRJ200,UZJ200..5FC200712-201202

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iGRJ200,UZJ200..5FC200712-201202

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173×20iGRJ200,UZJ200..5FC200712-201202

main90119-06A02×12iURJ202201402-201601

main91611-B0625×12iURJ202201202-201402

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGRJ200,UZJ200..5FC200712-201202

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-60170iGRJ200..5FC200712-201202

main35111-60180iUZJ200200712-201202

main35111-60220iURJ202201202-201601

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232×14iURJ202201202-201601

*10-1.5PX35-30

main90119-10947×2iGRJ200,UZJ200..5FC200712-201202

*10-1.50PX35-29.3,NO.3

main90119-12378×2iGRJ200,UZJ200..5FC200712-201202

*12-1.75PX38-30,NO.2

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iGRJ200,UZJ200..5FC200712-201202

3512

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main35122-60020iGRJ200201202-201601

main35122-60090iURJ202201601

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-04014iGRJ200,URJ202201202-201601

35123ASKIRT, TRANSMISSION BREATHER

main35123-60100iGRJ200..5FC200712-201202

main35123-60110iUZJ200200712-201202

main35123-60130iGRJ200201601

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGRJ200,URJ202201202-201601

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iGRJ200,URJ202201202-201601

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iGRJ200,URJ202201601

35159GASKET, BRAKE DRUM

main35159-60010×3iGRJ200,UZJ200..5FC200712-201202

main35159-60020iURJ202201601

NO.2

main35159-60030×2iURJ202201202-201601

NO.1

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-34020iURJ202201202-201601

main35168-60010iGRJ200201601

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iGRJ200,URJ202201202-201601

8410

9011912250

main90119-12250

9151180816

main91511-80816

9161261045

main91612-61045

9165140610

main91651-40610

9613241000

main96132-41000

9613251000

main96132-51000

29 parts on this diagram · 3 diagrams in section
