SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-60121-E1iGRJ200..5F200712-200901

DK. BROWN,TRIM4#

sub33504-60121

main33504-60220-E0iGRJ200,UZJ200..5FC..GX200712-201202

DK. BROWN,TRIM4#

sub33504-60220

main33504-60220-E1iGRJ200201202-201601

ORCHID BROWN,TRIM0#

sub33504-60220

main33504-60240-E0iUZJ200..VX200712-201202

DK. BROWN,TRIM4#

sub33504-60241

main33504-60240-E2iURJ202201202-201301

ORCHID BROWN & LT.BROWN,TRIM0#

sub33504-60241

main33504-60240-E2iURJ202201202-201301

VX PACKAGE,ORCHID BROWN & LT.BROWN,TRIM0#

sub33504-60241

main33504-60241-E2iURJ202201302-201601

ORCHID BROWN & LT.BROWN,TRIM0#

sub33504-60241

main33504-60241-E2iURJ202201302-201601

VX PACKAGE,ORCHID BROWN & LT.BROWN,TRIM0#

sub33504-60241

main33504-60440-E0iGRJ200..GXR201601

ORCHID BROWN,TRIM0#

main33504-60450-E0iGRJ200,URJ202..VX,VXR201601

ORCHID BROWN,TRIM0#

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-60050iGRJ200..5F200712-200901

main33548-60060iGRJ200,UZJ200..5FC200712-201601

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-60B20iGRJ200201601-201706

sub33550-60B40

main33550-60B90iURJ202201601-201706

sub33550-60B91

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iGRJ200,UZJ200..5FC200712-201601

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main90339-04049iGRJ200,UZJ200..5FC200712-201601

33560CLEVER ASSY, SHIFT, LOWER

main33560-60090iUZJ200200712-201301

sub33560-60091

main33560-60091iURJ202201302-201601

main33560-60100iGRJ200..5FC200712-201301

sub33560-60101

main33560-60101iGRJ200201302-201601

33563BUTTON, SHIFT LOCK RELEASE

main33563-60120iGRJ200,UZJ200..5FC200712-201601

main33563-60210iGRJ200,URJ202201601

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main90240-08054iGRJ200,UZJ200..5FC200712-201601

33675BBUSH (FOR TRANSMISSION CONTROL ROD)

main90389-08005iGRJ200,UZJ200..5FC200712-201601

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-60070iGRJ200200712-201601

main33702-60080iUZJ200200712-201202

main33702-60110iURJ202201202-201601

33866SPRING, SHIFT LOCK RELEASE

main33866-33010iGRJ200,URJ202201601

main33866-42020iGRJ200,UZJ200..5FC200712-201601

3513

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-21020iGRJ200,URJ202200712-201601

main35906-30220iGRJ200,URJ202201601

sub35906-39005

35952LENS, POSITION INDICATOR

main35952-60010iGRJ200,UZJ200..5FC200712-201601

main35952-60050iGRJ200,URJ202201601

35970FHOUSING ASSY, POSITION INDICATOR

main35970-60060iGRJ200,UZJ200..5FC200712-201601

main35970-60260iGRJ200,URJ202201601

35974HOUSING, POSITION INDICATOR, LOWER

main35974-60120iGRJ200,UZJ200..5FC200712-201601

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-60110iGRJ200,UZJ200..5FC200712-201601

main35975-60130iGRJ200,URJ202201601

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-60040iGRJ200,UZJ200..5FC200712-201601

main35976-60060iGRJ200,URJ202201601

8401

90119C0113

main90119-C0113

90182C0031

main90182-C0031

9046814033

main90468-14033

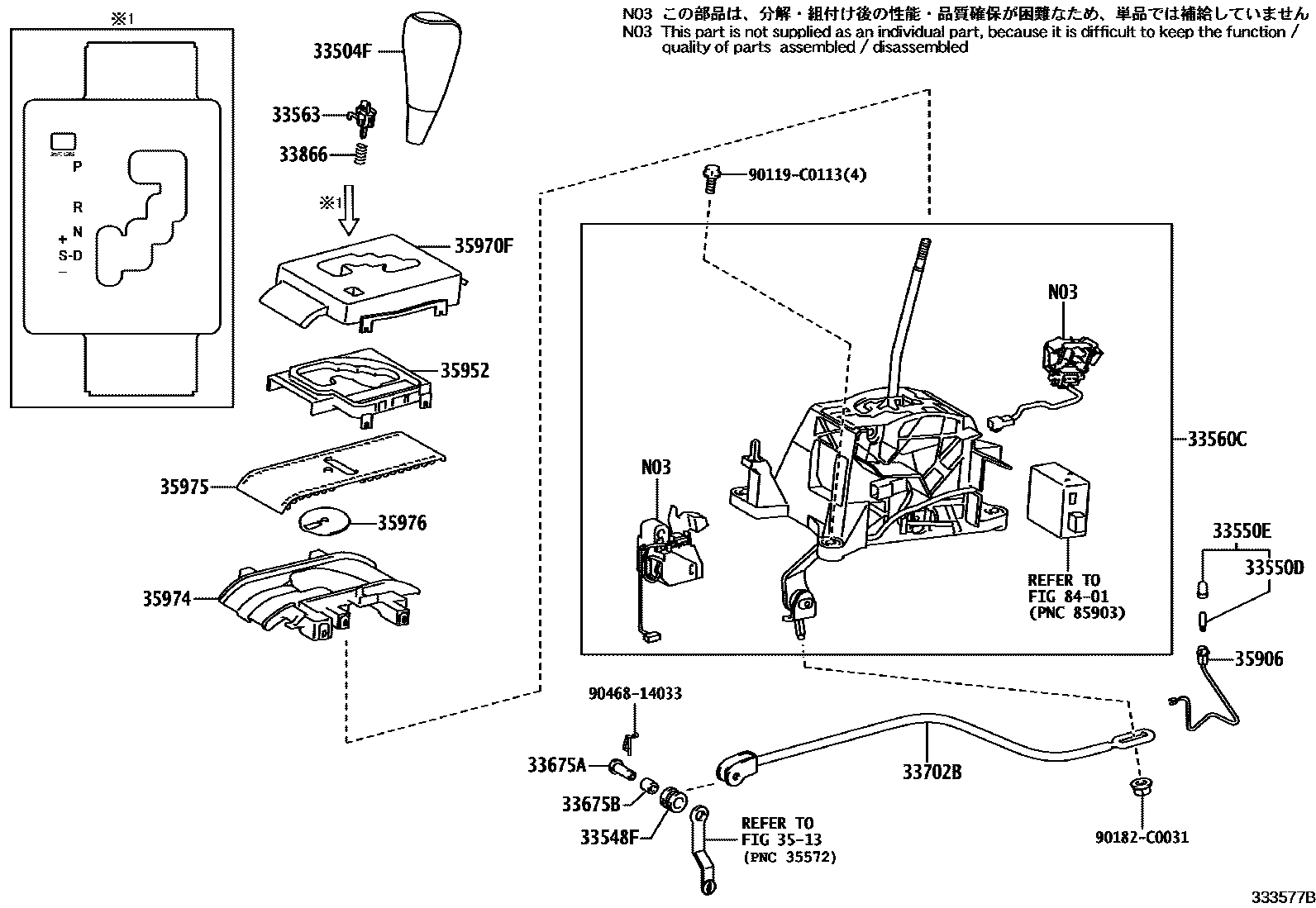

22 parts on this diagram · 5 diagrams in section
