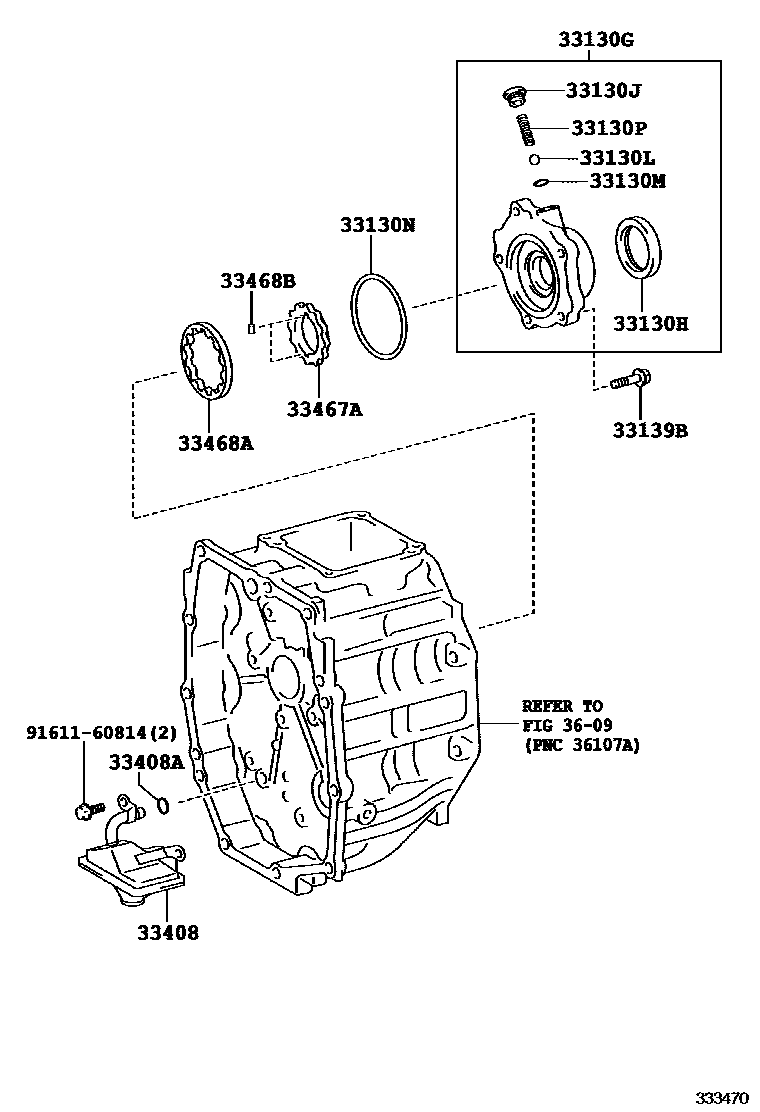

OIL PUMP, OIL COOLER & PIPE (MTM)

33130GCOVER, TRANSMISSION OIL PUMP

main33130-60220iGRJ200..5F200712-200811

33130HSEAL, OIL(FOR TRANSMISSION OIL PUMP COVER)

main90311-51010iGRJ200..5F200712-200811

33130JPLUG, NO.1(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90341-18039iGRJ200..5F200712-200811

33130LBALL(FOR TRANSMISSION OIL PUMP COVER)

main90360-10003iGRJ200..5F200712-200811

33130MRING, O, NO.1(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main96721-19010iGRJ200..5F200712-200811

33130NRING, O, NO.2(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90301-91001iGRJ200..5F200712-200811

33130PSPRING, COMPRESSION(FOR TRANSMISSION OIL PUMP COVER)

main90501-10127iGRJ200..5F200712-200811

33139BBOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90119-08332×5iGRJ200..5F200712-200811

33408STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL

main33408-60020iGRJ200..5F200712-200811

33408ARING, O (FOR MANUAL TRANSMISSION OIL STRAINER)

main96721-19009iGRJ200..5F200712-200811

33467AROTOR, OIL PUMP DRIVE (FOR MANUAL TRANSMISSION)

main33467-60010iGRJ200..5F200712-200811

33468AROTOR, OIL PUMP DRIVEN (FOR MANUAL TRANSMISSION)

main33468-60010iGRJ200..5F200712-200811

33468BPIN, STRAIGHT (FOR OIL PUMP DRIVE ROTOR)

main90250-04056×2iGRJ200..5F200712-200811

3609

9161160814

main91611-60814

15 parts on this diagram · 1 diagram in section
