ALTERNATOR

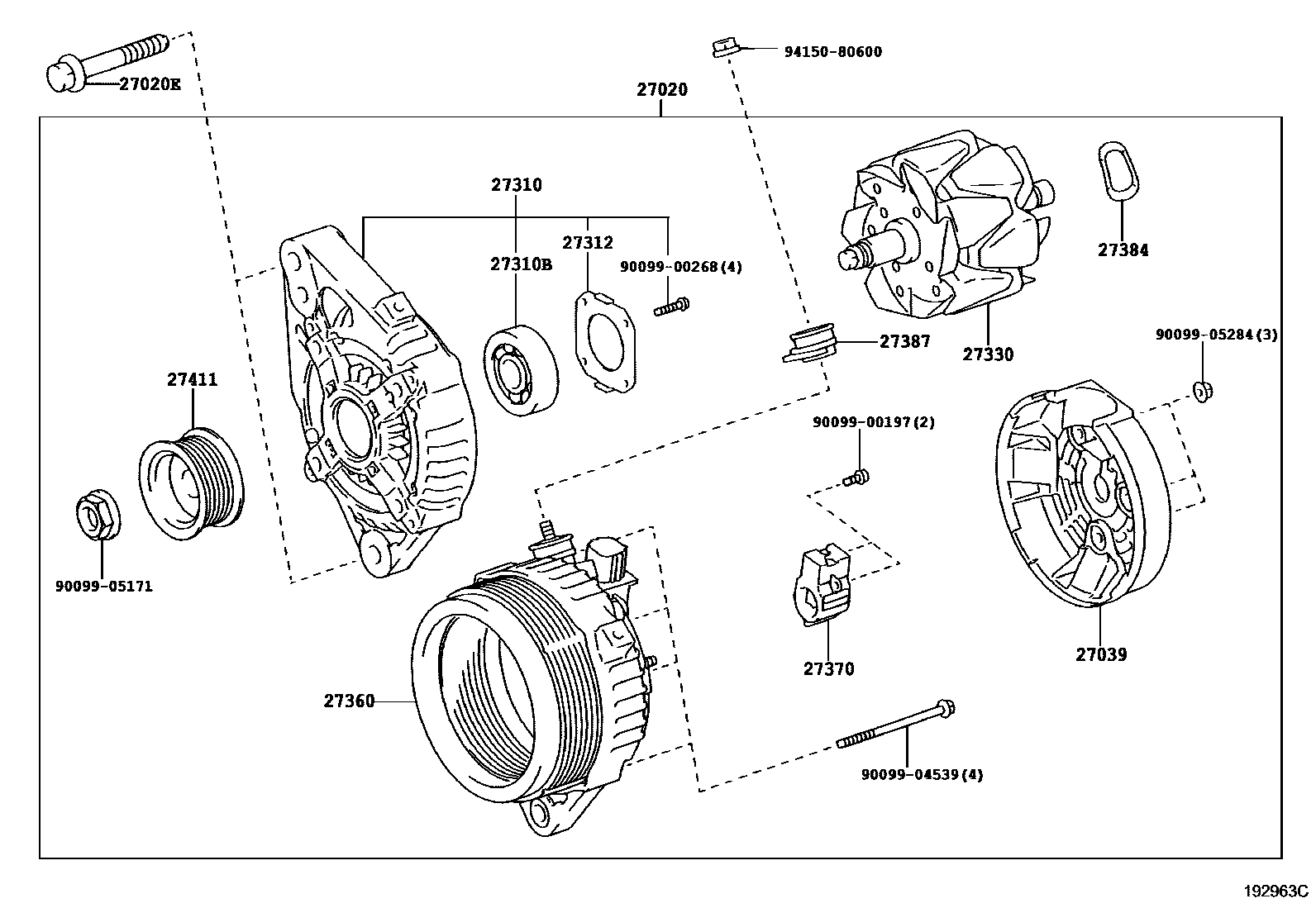

Parts diagram
27020ALTERNATOR ASSY
main27060-0P080i201202-201601
12V 130A
main27060-31120i200712-201202
12V 100A
main27060-38090i201202-201601
12V 150A
main27060-38110i201601
12V 150A
main27060-50390i200712-201202
12V 150A
27020EBOLT(FOR ALTERNATOR)
main91642-81065i200712-201202
27039COVER, ALTERNATOR REAR END
main27039-0P070i201202-201601
main27039-26170i200712-201009
main27039-31390i201009-201601
main27039-50430i200712-201202
27310FRAME ASSY, DRIVE END, ALTERNATOR
main27310-0P070i201202-201601
main27310-31210i200712-201202
main27310-38170i201202-201601
main27310-50310i200712-201202
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
main90068-10033i201202-201212
main90068-10042i201212-201601
main90099-10223i200712-201601
27312PLATE, RETAINER
main27312-0M070i201308-201601
main27312-72100i200712-201601
27330ROTOR ASSY, ALTERNATOR
main27330-0V040i201202-201601
main27330-30070i200712-201202
main27330-58460i200712-201601
27360COIL ASSY, ALTERNATOR
main27360-0P070i201202-201601
main27360-31320i200712-201202
main27360-38170i201202-201601
main27360-38180i201601
main27360-50440i200712-201202
27370HOLDER ASSY, ALTERNATOR BRUSH
main27370-0T030i201202-201601
main27370-27060i201202-201601
main27370-31220i200712-201202
main27370-58460i200712-201202
27384WASHER
main27384-50030i200712-201601
27387INSULATOR, TERMINAL
main27387-0H110i201212-201601
main27387-0T030i201202-201212
sub27387-0H110
main27387-20130i200712-201601
27411PULLEY, ALTERNATOR
main27411-31210i200712-201202
main27411-38090i201404-201601
main27411-38170i201202-201404
sub27411-38090
main27411-46080i200712-201202
9009900197
main90099-00197
9009900268
main90099-00268
9009904539
main90099-04539
9009905171
main90099-05171
9009905284
main90099-05284
9415080600
main94150-80600

18 parts on this diagram · 4 diagrams in section
