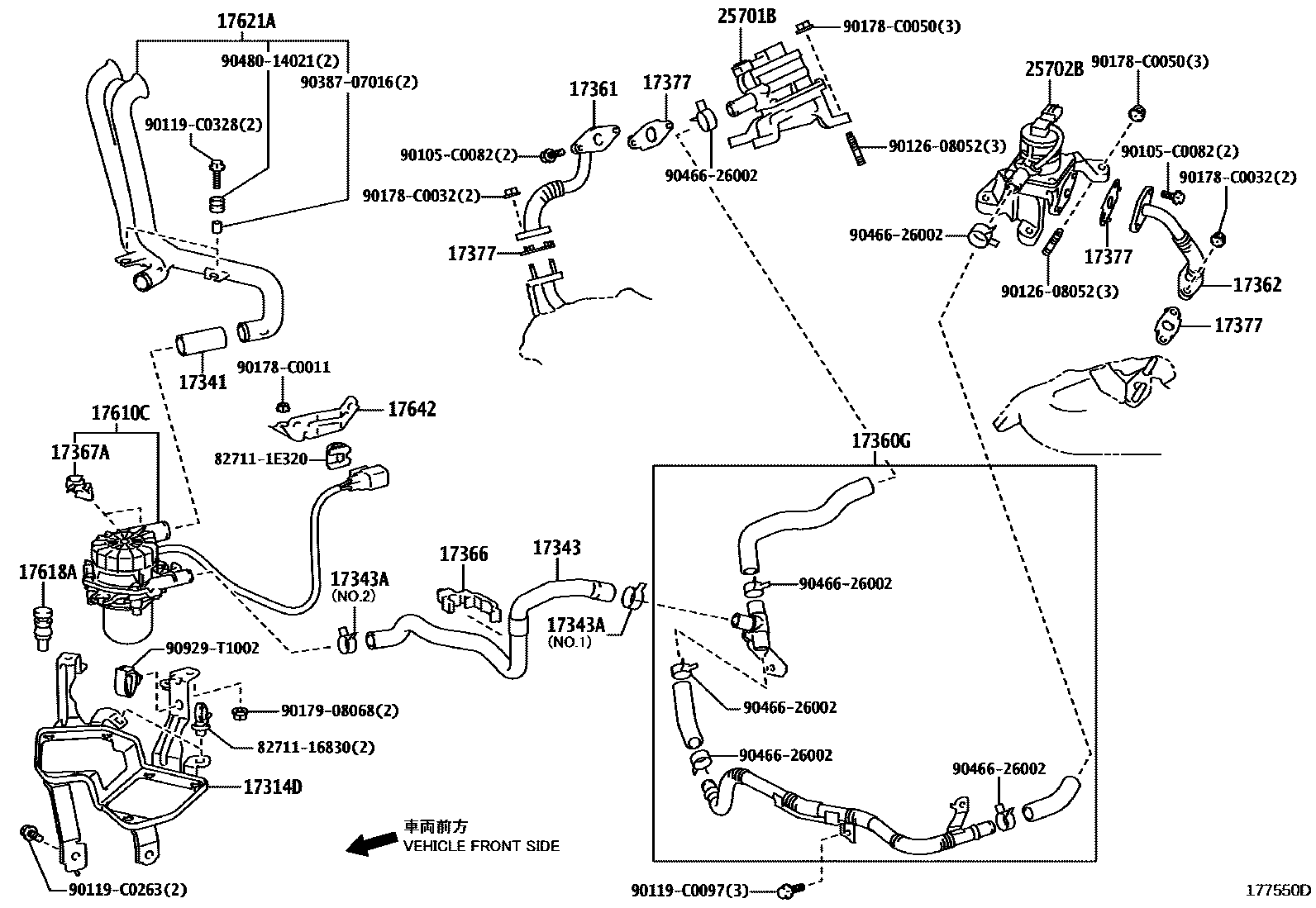

MANIFOLD AIR INJECTION SYSTEM
17314DBRACKET, AIR PUMP, NO.1
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
EXHAUST EMISSION CONTROL-KUNI5, WITH(ON BOARD DIAGNOSIS)
17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
EXHAUST EMISSION CONTROL-KUNI5, WITH(ON BOARD DIAGNOSIS),NO.1
sub90466-26002
EXHAUST EMISSION CONTROL-KUNI5, WITH(ON BOARD DIAGNOSIS),NO.2
NO.2
17360GTUBE ASSY, AIR
17366CLAMP, AIR INJECTION HOSE, NO.1
EXHAUST EMISSION CONTROL-KUNI5, WITH(ON BOARD DIAGNOSIS)
17367ACLAMP, AIR INJECTION HOSE, NO.2
17377GASKET, AIR TUBE, NO.2
17610CPUMP ASSY, AIR
17618AINSULATOR, AIR PUMP
EXHAUST EMISSION CONTROL-KUNI5, WITH(ON BOARD DIAGNOSIS)
17621AINLET, AIR PUMP
EXHAUST EMISSION CONTROL-KUNI5, WITH(ON BOARD DIAGNOSIS)
17642BRACKET, AIR PUMP WIRE
EXHAUST EMISSION CONTROL-KUNI5, WITH(ON BOARD DIAGNOSIS)
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E320
90105C0082
main90105-C0082
90119C0097
main90119-C0097
90119C0263
main90119-C0263
90119C0328
main90119-C0328
9012608052
main90126-08052
90178C0011
main90178-C0011
90178C0032
main90178-C0032
90178C0050
main90178-C0050
9017908068
main90179-08068
9038707016
main90387-07016
9046626002
main90466-26002
9048014021
main90480-14021
90929T1002
main90929-T1002
31 parts on this diagram · 3 diagrams in section
