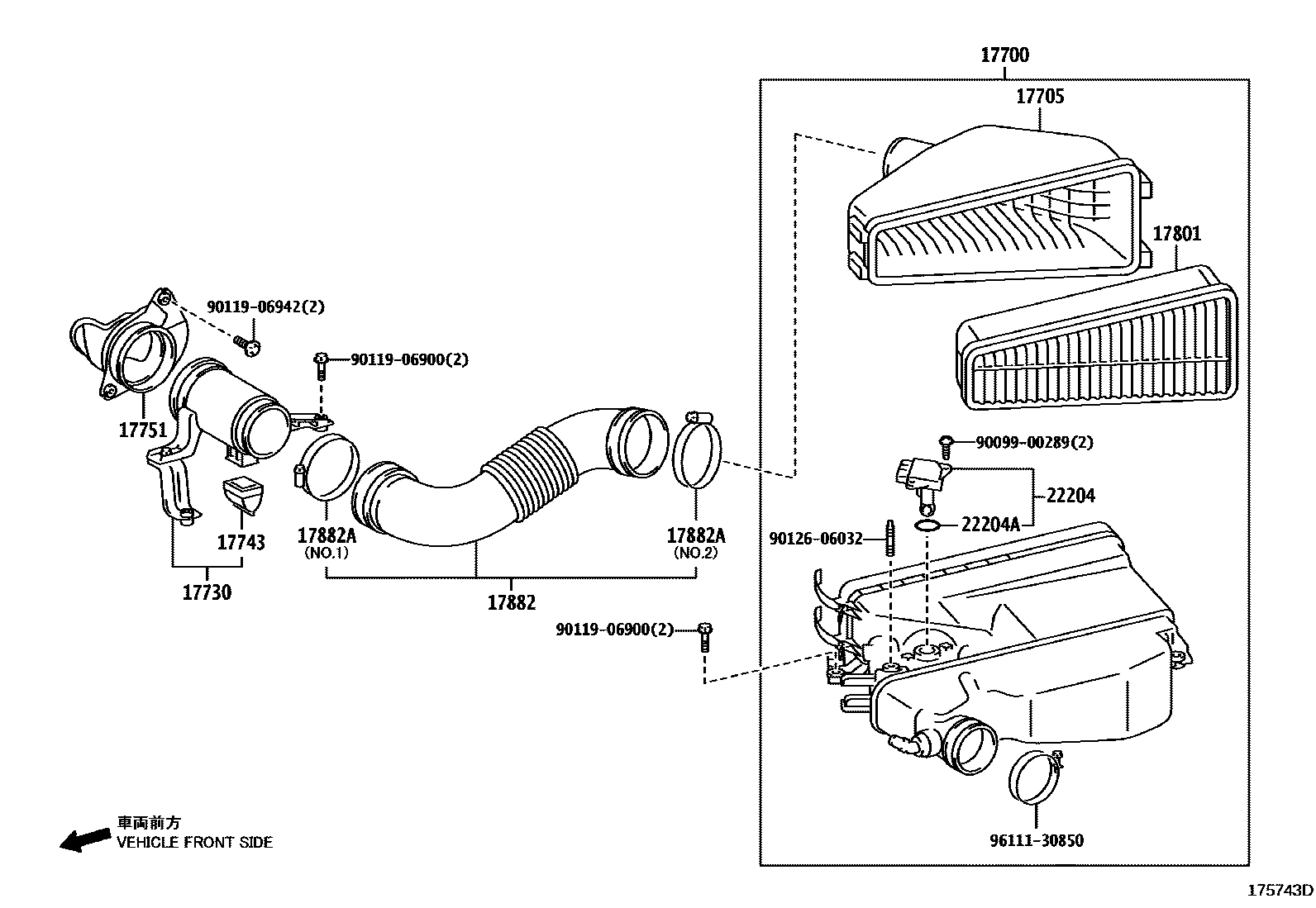

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-31541i1GRFE..GRJ200..5F200712-201009

sub17700-31542

main17700-31542i1GRFE..GRJ200201010-201202

main17700-31A30i1GRFE..GRJ200201202-201601

main17700-38170i2UZFE..UZJ200200712-201601

17705CAP SUB-ASSY, AIR CLEANER

main17705-31090i1GRFE..GRJ200..5FC200712-201009

sub17705-0P010

main17705-31091i1GRFE..GRJ200201010-201202

main17705-31310i1GRFE..GRJ200201202-201601

main17705-38090i2UZFE..UZJ200200712-201601

17730PRECLEANER ASSY, AIR W/HOSE

main17730-31020i1GRFE..GRJ200..5F200712-201202

17743VALVE, DUST RELIEF

main17743-31010i1GRFE..GRJ200200901-201202

main17743-50010i1GRFE..GRJ200..5F200712-200812

17751INLET, AIR CLEANER, NO.1

main17709-38010i1URFE..URJ202201304-201601

main17751-38050i1URFE..URJ202200712-201304

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31090i1GRFE..GRJ200..5F200712-201202

main17801-38030i2UZFE..UZJ200200712-201601

17882HOSE, AIR CLEANER, NO.2

main17882-31090i1GRFE..GRJ200..5F200712-201008

sub17882-31091

main17882-31091i1GRFE..GRJ200201009-201202

main17882-31130i1GRFE..GRJ200201202-201601

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-96001i1GRFE..GRJ200..5F200712-200902

NO.1

sub96111-10950

main90460-99009i1GRFE..GRJ200..5F200712-200902

NO.2

sub96111-11090

main96111-10950i1GRFE..GRJ200200903-201202

NO.1

main96111-10950i2UZFE..UZJ200200712-201601

main96111-10980i1GRFE..GRJ200201202-201601

main96111-11090i1GRFE..GRJ200200903-201202

NO.2

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V010i1GRFE..GRJ200201202-201601

MARK 22204-0V010

sub22204-0V020

main22204-22010i1GRFE..GRJ200..5FC200712-201202

main22204-28010i1GRFE..GRJ200201202-201601

MARK 22204-28010

main22204-75030i1URFE..URJ202200712-201601

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1GRFE..GRJ200..5F200712-201202

9009900289

main90099-00289

9011906900

main90119-06900

9011906942

main90119-06942

9012606032

main90126-06032

9611130850

main96111-30850

15 parts on this diagram · 4 diagrams in section
