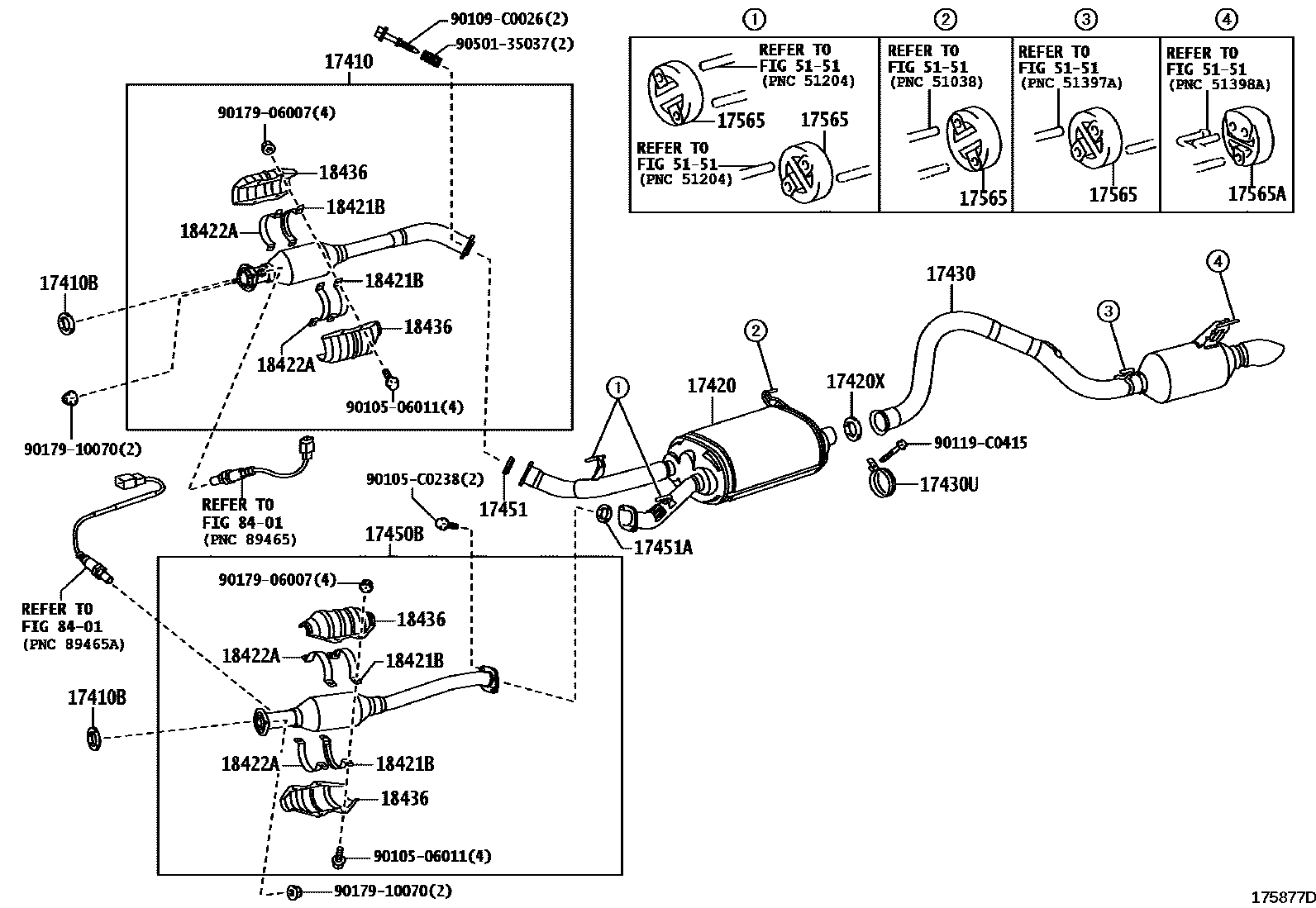

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/X71/Y
*114=TOYOTA/T77T89/Y
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430UCLAMP NO.1, EXHAUST TAILPIPE (FOR REAR)
17450BPIPE ASSY, EXHAUST, FRONT NO.2
*114=TOYOTA/X71/Y
*114=TOYOTA/T77T89/Y
17451AGASKET, EXHAUST PIPE, NO.2
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
18421BSTAY, CONVERTER PROTECTOR, NO.2
18422STAY, CONVERTER PROTECTOR, NO.2
NO.2
NO.1
18422ASTAY, CONVERTER PROTECTOR, NO.3
18436PROTECTOR, MONOLITHIC CONVERTER, NO.1
NO.1
NO.2
5151
8401
9010506011
main90105-06011
90105C0238
main90105-C0238
90109C0026
main90109-C0026
90119C0415
main90119-C0415
9017906007
main90179-06007
9017910070
main90179-10070
9050135037
main90501-35037
24 parts on this diagram · 3 diagrams in section
