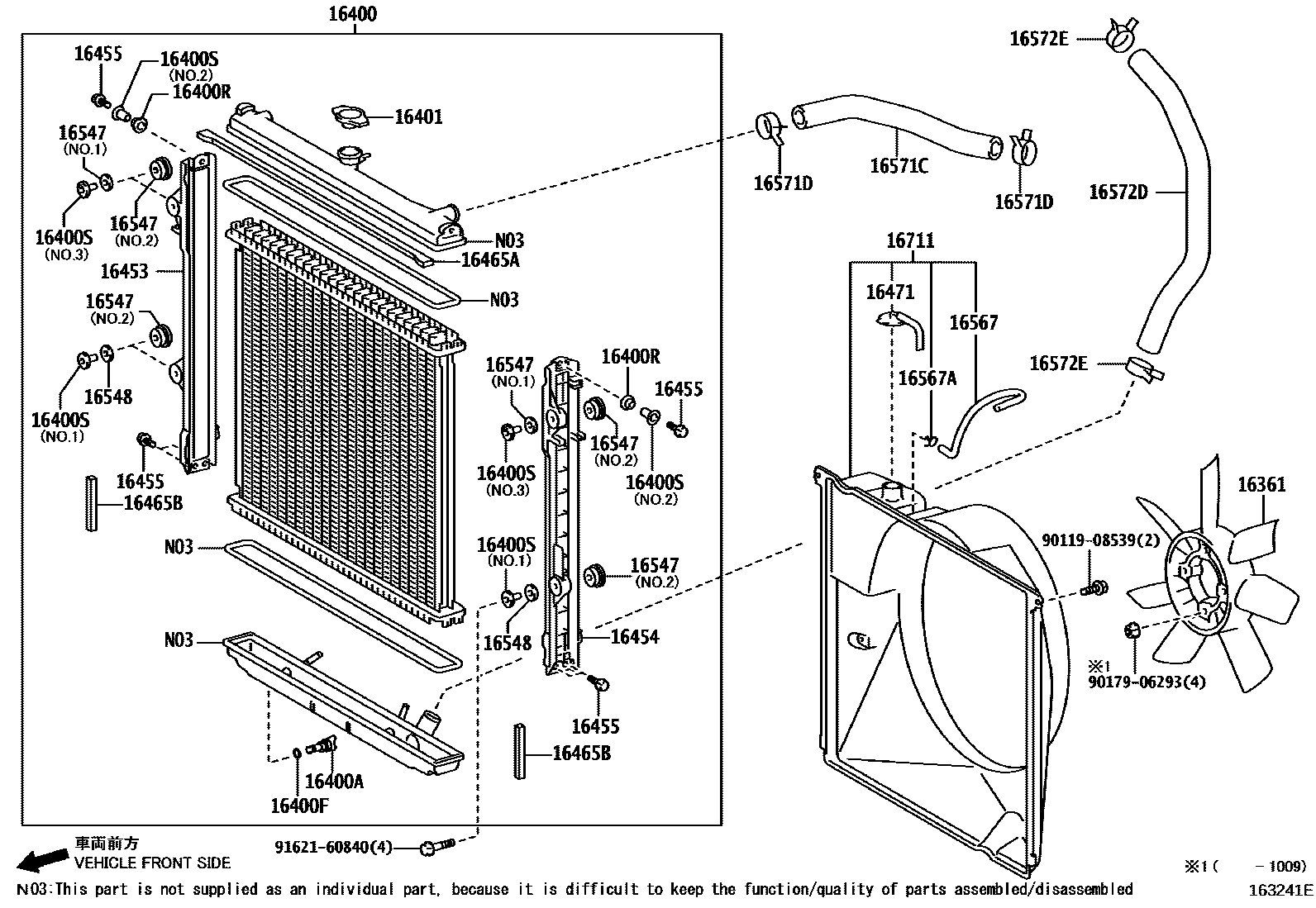

RADIATOR & WATER OUTLET
16361FAN
16400RADIATOR ASSY
sub16400-31602
sub16400-31603
sub16400-31604
sub16400-50382
sub16400-50412
sub16400-50413
16400ACOCK SUB-ASSY, RADIATOR DRAIN
16400FPACKING(FOR RADIATOR DRAIN COCK)
16400RBUSHING(FOR RADIATOR)
16400SCOLLAR(FOR RADIATOR)
NO.1
NO.2
NO.3
16453PLATE, RADIATOR SIDE
16454PLATE, RADIATOR SIDE
16455BOLT, RADIATOR SIDE SUPPORT PLATE
16465PACKING, RADIATOR
16465APACKING, RADIATOR, NO.1
16465BPACKING, RADIATOR, NO.2
16471CAP SUB-ASSY, RESERVE TANK
16547BUSH, RADIATOR SUPPORT, NO.1
NO.1
NO.2
16548BUSH, RADIATOR SUPPORT, NO.2
16567HOSE(FOR RADIATOR RESERVE TANK)
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572ECLIP, RADIATOR HOSE, NO.2
NO.1
NO.2
9011908539
main90119-08539
9017906293
main90179-06293
9162160840
main91621-60840
26 parts on this diagram · 9 diagrams in section
