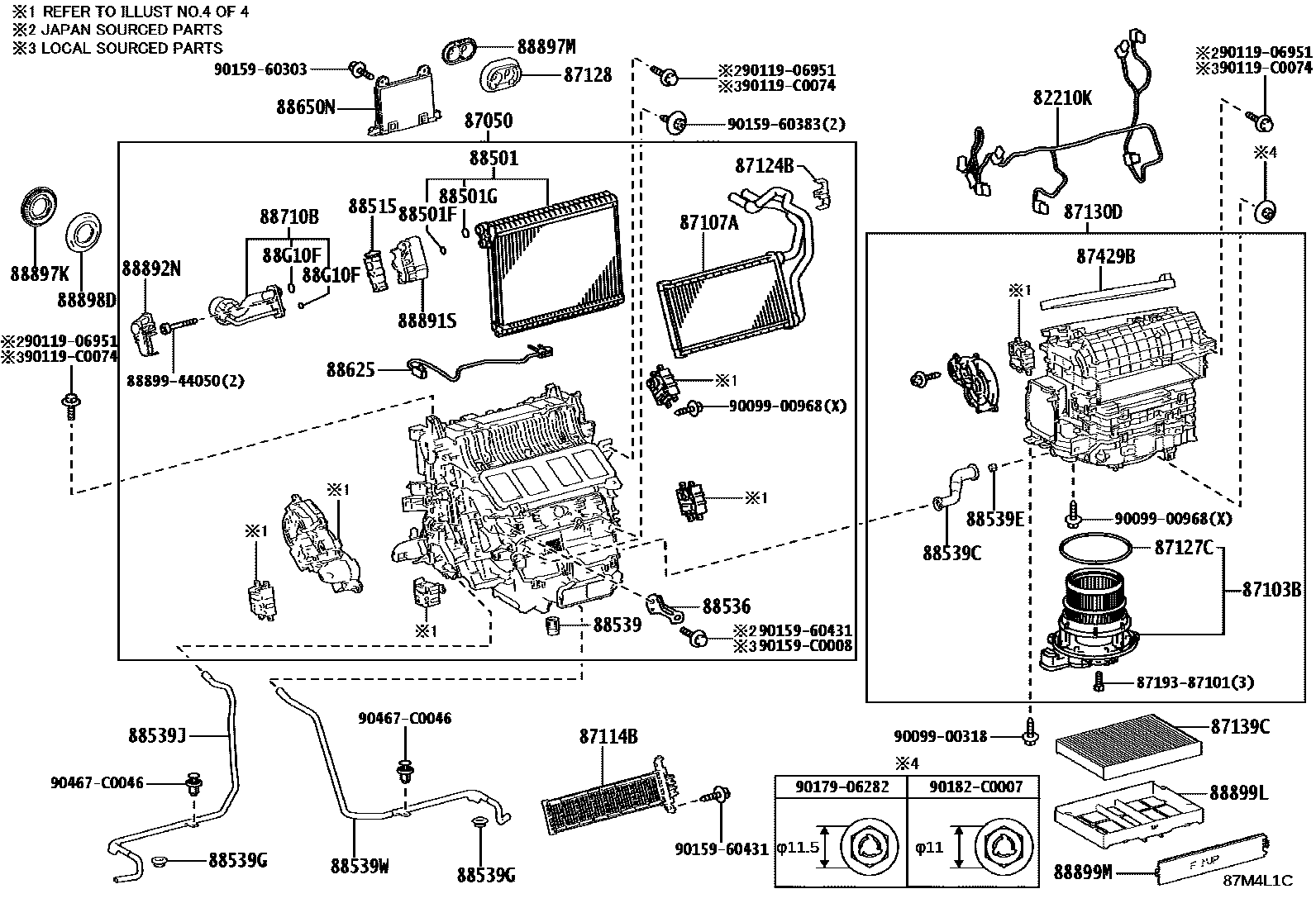

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1REAR 0003 1COOL BOX 0004 1DAMPER SERVO

82210KHARNESS ASSY, AIR CONDITIONER

main82212-60620supersedes 82212-60630iTJH251..R,U202407

REAR AIR CONDITIONER-WITH

87050RADIATOR ASSY, AIR CONDITIONER

main87050-60S30supersedes 87050-60S40iTJH251..R,U202407

REAR AIR CONDITIONER-WITH

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-50180iTJH251202407

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-60530iTJH251202407

87114BCOVER, HEATER

main87114-0G010iTJH251202412

main87114-30010iTJH251202407-202412

87124BCLAMP, HEATER

main87124-33070iTJH251202407

87127CPACKING, BLOWER MOTOR SUB-ASSY, NO.1

main87127-11010iTJH251202407

87128GROMMET, HEATER

main87128-28020iTJH251202407

87130DBLOWER ASSY

main87130-60651iTJH251202407

87139CFILTER, CLEAN AIR

main87139-0G050iTJH251202412

OE PART

main87139-30110iTJH251202407

DEODORANT FILTER

main87139-60040iTJH251202407

MICRO DUST FILTER,OE PART

87429BPACKING, COOLER UNIT, NO.1

main87429-60020iTJH251202407

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-60620iTJH251202407

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iTJH251202407

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iTJH251202407

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-60350iTJH251202407

88536BRACKET, COOLING UNIT, NO.1

main88688-0G060iTJH251202407

88539HOSE, COOLER UNIT DRAIN, NO.1

main88899-10110iTJH251202407

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-60440iTJH251202407

88539EHOSE, COOLER UNIT DRAIN, NO.3

main88539-30A00iTJH251202407

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88899-0G090×2iTJH251202412

main90480-26029×2iTJH251202407-202412

88539JHOSE, DRAIN COOLER

main88539-60450iTJH251202407

88539WHOSE, DRAIN COOLER, NO.2

main88539-60460iTJH251202407

88625THERMISTOR, COOLER, NO.1

main88620-30290iTJH251202407

88650NAMPLIFIER ASSY, AIR CONDITIONER

main886H0-60090iTJH251..A,L,R202407

main886H0-60100supersedes 886H0-60110iTJH251..U202407

REAR AIR CONDITIONER-WITH

88710BTUBE ASSY, AIR CONDITIONER

main88710-60N90iTJH251202407

88891SCOVER, COOLER, NO.1

main88891-11010iTJH251202407

88892NCOVER, COOLER, NO.2

main88892-11010iTJH251202407

88897KGROMMET, (FOR COOLER PIPE)

main88897-11020iTJH251202407-202412

main88899-0G080iTJH251202412

88897MGROMMET (FOR HEATER PIPE)

main87128-60120iTJH251202407

88898DGROMMET

main88899-11020iTJH251202407

88899LPARTS, COOLING UNIT

main88899-0G100iTJH251202407

88899MPLATE, COVER(FOR AIR FILTER)

main88899-0G060iTJH251202412

main88899-50150iTJH251202407-202412

88G10FRING, O, NO.3 (FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14119iTJH251202407

ID=6.7,OD=10.3

main90099-14121iTJH251202407

ID=13.4,OD=18.2

8719387101

main87193-87101

8889944050COVER, EVAPORATOR

main88899-44050

9009900318

main90099-00318

9009900968

main90099-00968

9011906951

main90119-06951

90119C0074

main90119-C0074

9015960303

main90159-60303

9015960383

main90159-60383

9015960431

main90159-60431

90159C0008

main90159-C0008

9017906282

main90179-06282

90182C0007

main90182-C0007

90467C0046

main90467-C0046

46 parts on this diagram · 4 diagrams in section
