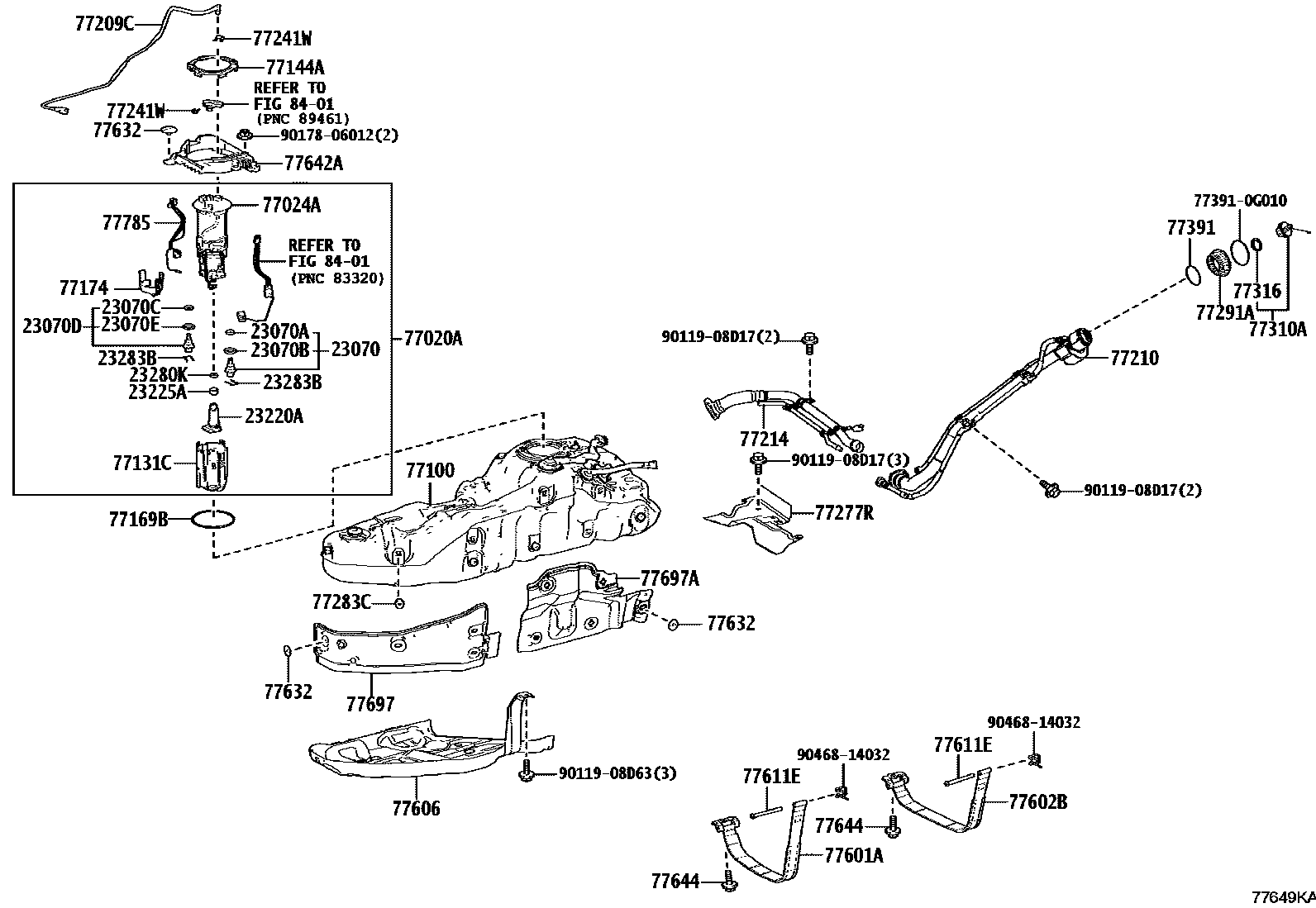

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23070BRING, O, NO.2(FOR FUEL MAIN VALVE)
23070CRING, O, NO.3(FOR FUEL MAIN VALVE)
23070DVALVE ASSY, FUEL MAIN, NO.2
23070ERING, O, NO.4(FOR FUEL MAIN VALVE)
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23283BHOLDER, FUEL PRESSURE REGULATOR
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77100TANK ASSY, FUEL
77131CSUB-TANK, FUEL, NO.1
77144ARETAINER, FUEL PUMP GAUGE
77169BGASKET, FUEL SUCTION TUBE SET, NO.1
77174SUPPORT, FUEL SUCTION, NO.1
77209CTUBE SUB-ASSY, FUEL TANK MAIN
77210PIPE ASSY, FUEL TANK FILLER
77214PIPE, FUEL TANK FILLER
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77283CBRACKET, FUEL TANK PROTECTOR
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
W/O PAINTED
WHITE PAINTED
77391RING, FUEL INLET BOX
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611EPIN, FUEL TANK BAND
77632BRACKET, FUEL TANK, NO.2
77642APROTECTOR, FUEL TANK, NO.2
77644BOLT, FUEL TANK
77697INSULATOR, FUEL TANK HEAT, NO.1
77697AINSULATOR, FUEL TANK HEAT, NO.2
77785HARNESS, FUEL PUMP
8401
773910G010RING, FUEL INLET BOX
main77391-0G010
9011908D17
main90119-08D17
9011908D63
main90119-08D63
9017806012
main90178-06012
9046814032
main90468-14032
43 parts on this diagram · 3 diagrams in section
