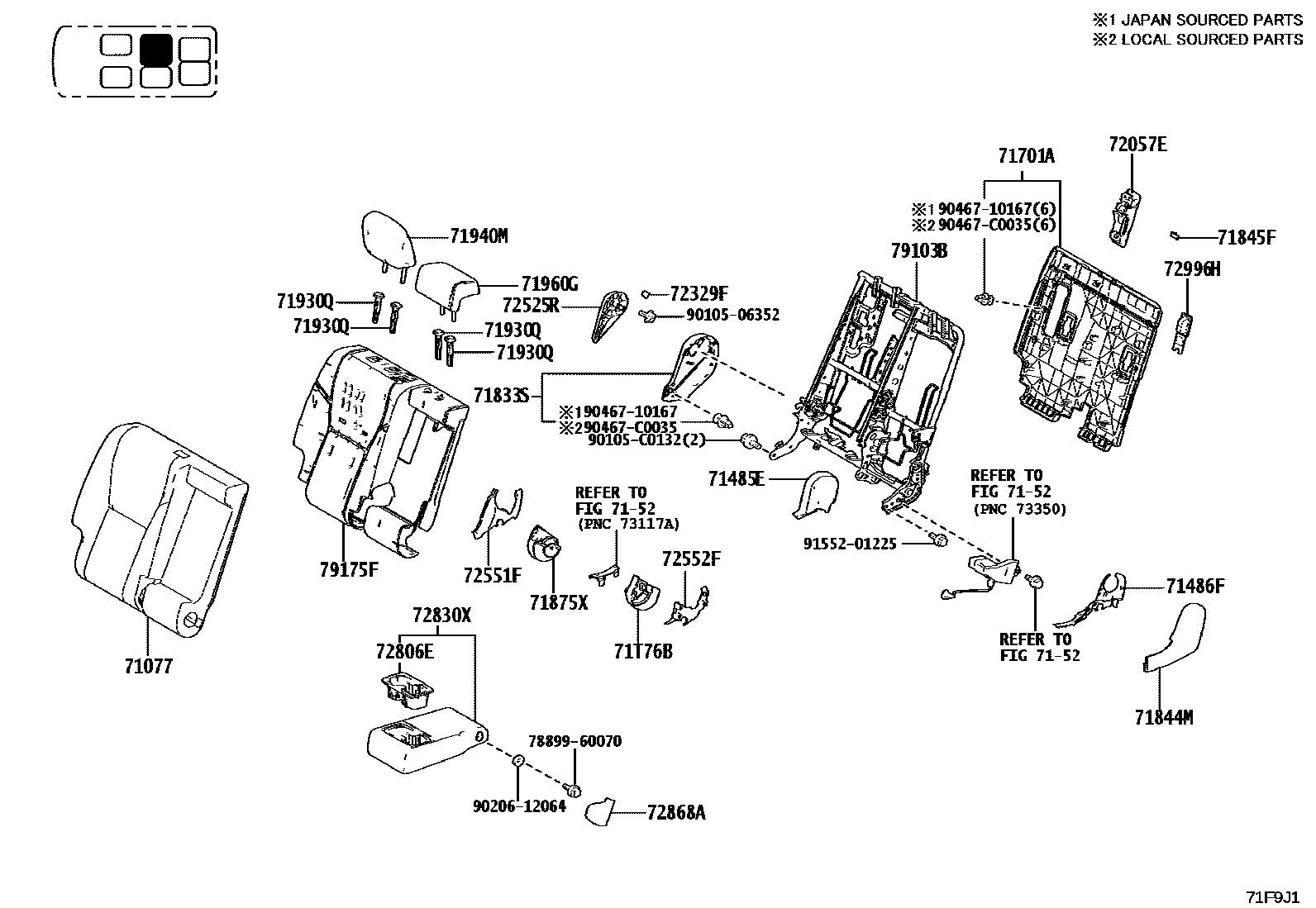

REAR SEAT & SEAT TRACK

0001 1NO.1 SEAT(6:4), RH SEAT BACK 0002 1NO.1 SEAT(6:4), RH SEAT CUSHI0003 1NO.1 SEAT(6:4), LH SEAT BACK 0004 1NO.1 SEAT(6:4), LH SEAT CUSHI0005 1NO.1 SEAT(4:4), RH SEAT BACK 0006 1NO.1 SEAT(4:4), RH SEAT CUSHI0007 1NO.1 SEAT(4:4), LH SEAT BACK 0008 1NO.1 SEAT(4:4), LH SEAT CUSHI0009 1NO.1 SEAT(6:4) FITTING PARTS 0010 1NO.1 SEAT(4:4) FITTING PARTS 0011 1NO.2 SEAT BACK 0012 1NO.2 SEAT CUSHION

71077COVER SUB-ASSY, REAR NO.1 SEATBACK, RH

main71077-0G180-C3iTJH251..U202407

BLACK,TRIM2#

main71077-0G210-B3iTJH251..R202407

CHATEAU,TRIM1#

main71077-0G210-C3iTJH251..R202407

BLACK,TRIM2#

main71077-0G230-B3iTJH251..L202407

CHATEAU,TRIM1#

main71077-0G230-C3iTJH251..A,L202407

BLACK,TRIM2#

main71077-0G230-E3iTJH251..A202407

DK. CHESTNUT,TRIM4#

71485ECOVER, REAR SEAT HINGE

main71485-0G010-C0iTJH251..R202407

BLACK,TRIM1#,2#

main71485-0G010-C0iTJH251..R202407

BLACK,TRIM2#

71486FCOVER, REAR SEAT HINGE, LH

main71486-0G010-C0iTJH251..R202407

BLACK,TRIM1#,2#

main71486-0G010-C0iTJH251..R202407

BLACK,TRIM2#

7152

71701ABOARD SUB-ASSY, REAR SEATBACK, RH

main71701-0G010iTJH251..R,U202407

main71701-0G020iTJH251..A,L202407

REAR SEAT-4:4 TUMBLE & 5:5

71833SCOVER, REAR SEAT RECLINING, NO.1 RH

main71833-0G040-C0iTJH251..L,R202407

BLACK,TRIM1#,2#

main71833-0G040-C0iTJH251..L,R202407

BLACK,TRIM2#,4#

main71833-0G040-C0iTJH251..L,R202407

BLACK,TRIM2#

71844MCOVER, REAR SEAT RECLINING, NO.2 LH

main71834-0G040-C0iTJH251..R202407

BLACK,TRIM1#,2#

main71834-0G040-C0iTJH251..R202407

BLACK,TRIM2#

main71834-0G050-C0iTJH251..A202407

BLACK,TRIM2#,4#

main71834-0G050-C0iTJH251..A202407

BLACK,TRIM1#,2#

main71834-0G050-C0iTJH251..A202407

REAR SEAT-4:4 TUMBLE & 5:5,BLACK,TRIM1#,2#

71845FCAP, REAR SEAT COVER

main71845-0G010-C0iTJH251..L,R202407

BLACK,TRIM1#,2#

main71845-0G010-C0iTJH251..L,R202407

BLACK,TRIM2#,4#

main71845-0G010-C0iTJH251..L,R202407

BLACK,TRIM2#

71875XCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-0G090iTJH251202407

71930QSUPPORT ASSY, REAR SEAT HEADREST

main71930-06070-C0iTJH251..A202407

W(LOCK),BLACK,TRIM2#,4#

main71930-06070-C0iTJH251..A202407

W(LOCK),BLACK,TRIM1#,2#

main71930-06070-C0iTJH251..A202407

W(LOCK),REAR SEAT-4:4 TUMBLE & 5:5,BLACK,TRIM1#,2#

main71930-06070-C0iTJH251..A202407

W(LOCK),BLACK,TRIM2#

main71931-06060-C0iTJH251..L,R202407

W/O(LOCK),BLACK,TRIM1#,2#

main71931-06060-C0iTJH251..L,R202407

W/O(LOCK),BLACK,TRIM2#,4#

main71931-06060-C0iTJH251..L,R202407

W/O(LOCK),BLACK,TRIM2#

71940MHEADREST ASSY, REAR SEAT

main71940-0G120-C1iTJH251..U202407

BLACK,TRIM2#

main71940-0G130-B1iTJH251..L,R202407

CHATEAU,TRIM1#

main71940-0G130-C2iTJH251..A,L,R202407

BLACK,TRIM2#

main71940-0G130-E1iTJH251..A202407

DK. CHESTNUT,TRIM4#

71960GHEADREST ASSY, REAR NO.1 SEAT, CENTER

main71960-0G100-C1iTJH251..U202407

BLACK,TRIM2#

main71960-0G110-B1iTJH251..R202407

CHATEAU,TRIM1#

main71960-0G110-C1iTJH251..R202407

BLACK,TRIM2#

71T76BCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-0G060iTJH251..R,U202407

main71876-0G070iTJH251..A,L202407

REAR SEAT-4:4 TUMBLE & 5:5

72057ELEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

main72057-0G040-C0iTJH251..L,R202407

BLACK,TRIM1#,2#

main72057-0G040-C0iTJH251..L,R202407

BLACK,TRIM2#,4#

main72057-0G040-C0iTJH251..L,R202407

BLACK,TRIM2#

72329FCOVER, REAR SEAT ADJUSTER BOLT

main72329-0G010-C0iTJH251..L,R202407

BLACK,TRIM1#,2#

main72329-0G010-C0iTJH251..L,R202407

BLACK,TRIM2#,4#

main72329-0G010-C0iTJH251..L,R202407

BLACK,TRIM2#

72525RHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-0G020-C0iTJH251..L,R202407

BLACK,TRIM1#,2#

main72525-0G020-C0iTJH251..L,R202407

BLACK,TRIM2#,4#

main72525-0G020-C0iTJH251..L,R202407

BLACK,TRIM2#

72551FCOVER, RECLINING LINK, RH NO.1

main72551-0G030-C0iTJH251..L,R202407

BLACK,TRIM1#,2#

main72551-0G030-C0iTJH251..L,R202407

BLACK,TRIM2#,4#

main72551-0G030-C0iTJH251..L,R202407

BLACK,TRIM2#

72552FCOVER, RECLINING LINK, LH NO.1

main72552-0G020-C0iTJH251..R202407

BLACK,TRIM1#,2#

main72552-0G020-C0iTJH251..R202407

BLACK,TRIM2#

main72552-0G030-C0iTJH251..A202407

BLACK,TRIM2#,4#

main72552-0G030-C0iTJH251..A202407

BLACK,TRIM1#,2#

main72552-0G030-C0iTJH251..A202407

REAR SEAT-4:4 TUMBLE & 5:5,BLACK,TRIM1#,2#

72806EHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-0G020-C0iTJH251..R202407

BLACK,TRIM1#,2#

main72806-0G020-C0iTJH251..R202407

BLACK,TRIM2#

72830XARMREST ASSY, REAR SEAT, CENTER

main72830-0G120-C2iTJH251..R202407

BLACK,TRIM2#

main72830-0G120-C3iTJH251..R202407

BLACK/CHATEAU,TRIM1#

main72830-0G130-C0iTJH251..U202407

BLACK,TRIM2#

72868ACOVER, CENTER ARMREST HINGE

main72868-0G010-C0iTJH251..R202407

BLACK,TRIM1#,2#

main72868-0G010-C0iTJH251..R202407

BLACK,TRIM2#

72996HCOVER, REAR SEATBACK

main72996-0G040-C0iTJH251..L,R202407

BLACK,TRIM1#,2#

main72996-0G040-C0iTJH251..L,R202407

BLACK,TRIM2#,4#

main72996-0G040-C0iTJH251..L,R202407

BLACK,TRIM2#

79103BFRAME SUB-ASSY, NO.1 SEATBACK, RH

main71017-0G030iTJH251..R,U202407

main71017-0G050iTJH251..A,L202407

REAR SEAT-4:4 TUMBLE & 5:5

79175FPAD, NO.1 SEATBACK, RH

main71507-0G020iTJH251..R202407

main71507-0G900iTJH251..A,L202407

main71651-0G070iTJH251..U202407

7889960070BOLT, FRONT SEAT

main78899-60070

9010506352

main90105-06352

90105C0132

main90105-C0132

9020612064

main90206-12064

9046710167

main90467-10167

90467C0035

main90467-C0035

9155201225

main91552-01225

31 parts on this diagram · 12 diagrams in section
