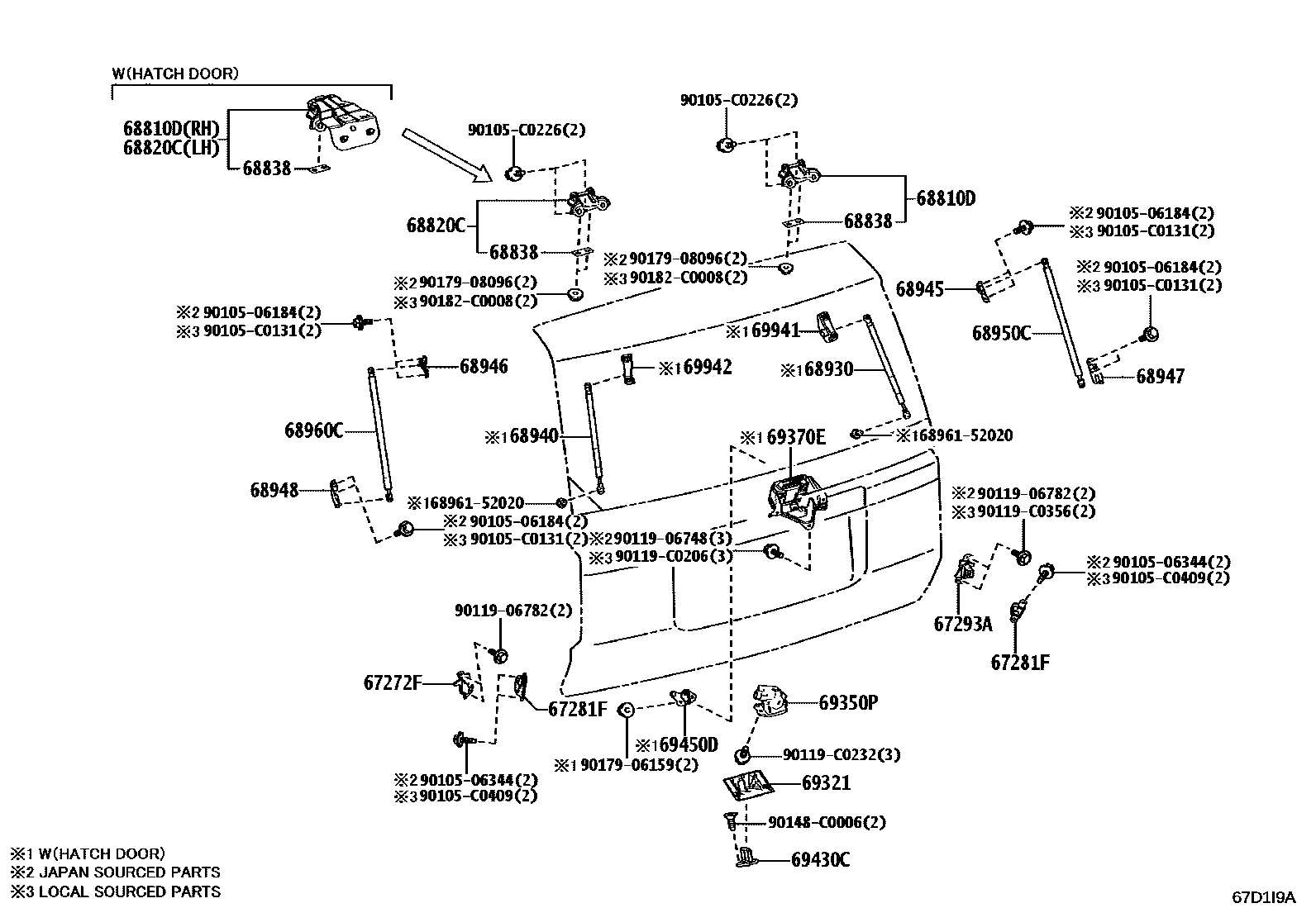

BACK DOOR LOCK & HINGE

0001 1W/O(POWER BACK DOOR) 0002 1W(POWER BACK DOOR)

67272FCUSHION, BACK DOOR STOPPER, NO.2

main67294-0G010iTJH251202407

67281FSTOPPER, BACK DOOR, LOWER

main67281-0G010iTJH251202407

RH

main67282-0G010iTJH251202407

LH

67293ACUSHION, BACK DOOR STOPPER

main67293-0G020iTJH251202407

68810DHINGE ASSY, BACK DOOR, RH

main68810-0G010iTJH251..R,U202407

PAD T=1.5

main68810-0G020iTJH251..R,U202407

PAD T=1.0

main68810-0G030iTJH251..R,U202407

PAD T=2.0

main68810-0G040iTJH251..A,L202407

PAD T=1.5

main68810-0G050iTJH251..A,L202407

PAD T=1.0

main68810-0G060iTJH251..A,L202407

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-0G010iTJH251..R,U202407

PAD T=1.5

main68810-0G020iTJH251..R,U202407

PAD T=1.0

main68810-0G030iTJH251..R,U202407

PAD T=2.0

main68820-0G010iTJH251..A,L202407

PAD T=1.5

main68820-0G020iTJH251..A,L202407

PAD T=1.0

main68820-0G030iTJH251..A,L202407

PAD T=2.0

68838PAD, BACK DOOR HINGE, NO.1

main68838-0G010iTJH251..A,L202407

T=1.5

main68838-0G020iTJH251..A,L202407

T=1.0

main68838-0G030iTJH251..A,L202407

T=2.0

68930STAY ASSY, BACK WINDOW, RH

main68930-0G020iTJH251..A,L202407

68940STAY ASSY, BACK WINDOW, LH

main68940-0G020iTJH251..A,L202407

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0G010iTJH251..U202407

main68945-0G020iTJH251..A,L,R202407

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-0G010iTJH251..U202407

main68946-0G020iTJH251..A,L,R202407

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0G010iTJH251202407

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-0G030iTJH251202407

68950CSTAY ASSY, BACK DOOR, RH

main68950-0G010iTJH251..U202407

68960CSTAY SET, BACK DOOR, LH

main68960-0G010iTJH251..U202407

69321COVER, BACK DOOR LOCK

main69321-0G030iTJH251202407

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0R070iTJH251..U202407

main69350-60240iTJH251..A,L,R202407

69370ELOCK ASSY, BACK WINDOW

main69370-60030iTJH251..A,L202407

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iTJH251202407

69450DSTRIKER ASSY, BACK WINDOW LOCK

main69450-60070iTJH251..A,L202407

69941BRACKT, BACK DOOR GLASS GUIDE, UPPER RH

main69941-0G010iTJH251..A,L202407

69942BRACKT, BACK DOOR GLASS GUIDE, UPPER LH

main69942-0G010iTJH251..A,L202407

6896152020BOLT, BACK DOOR STAY

main68961-52020

9010506184

main90105-06184

9010506344

main90105-06344

90105C0131

main90105-C0131

90105C0226

main90105-C0226

90105C0409

main90105-C0409

9011906748

main90119-06748

9011906782

main90119-06782

90119C0206

main90119-C0206

90119C0232

main90119-C0232

90119C0356

main90119-C0356

90148C0006

main90148-C0006

9017906159

main90179-06159

9017908096

main90179-08096

90182C0008

main90182-C0008

36 parts on this diagram · 2 diagrams in section
