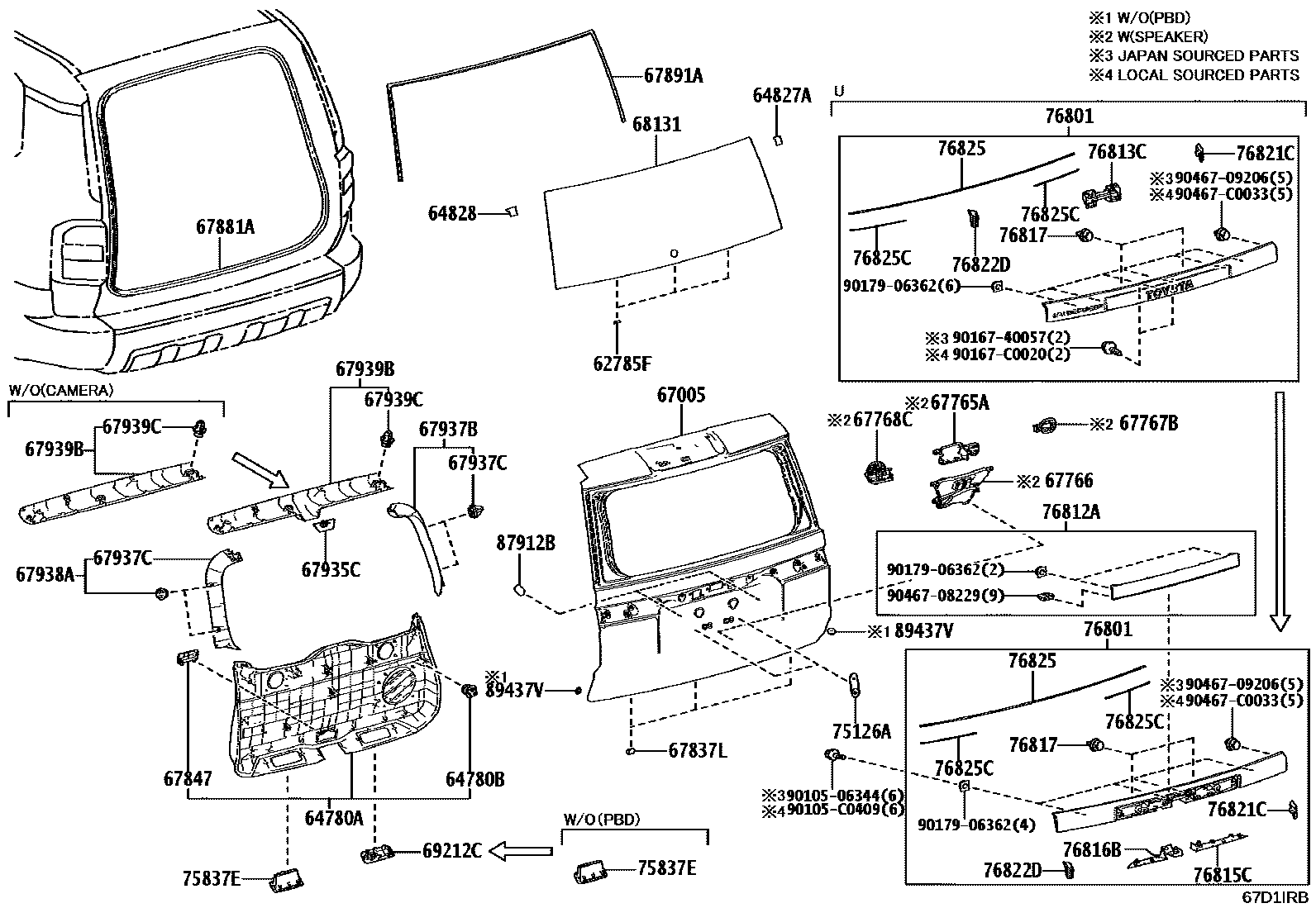

BACK DOOR PANEL & GLASS

0001 1W/O(HATCH DOOR) 0002 1W(HATCH DOOR) 0003 1W(HATCH DOOR)

62785FSPACER, BACK DOOR GLASS

main62785-0G020iTJH251..R,U202407

64780APANEL ASSY, BACK DOOR TRIM

main64780-0G040-C0iTJH251..U202407

BLACK,TRIM2#

main64780-0G050-C0iTJH251..R202407

BLACK,TRIM1#,2#

main64780-0G060-C0iTJH251..A202407

BLACK,TRIM2#,4#

main64780-0G070-C0iTJH251..L202407

BLACK,TRIM1#,2#

64780BCLIP(FOR BACK DOOR TRIM PANEL)

main90467-C0033iTJH251202407

64827ACLIP, BACK WINDOW GLASS, RH

main64827-0G030iTJH251..R,U202407

64828CLIP, BACK WINDOW GLASS, LH

main64828-0G030iTJH251..R,U202407

67005PANEL SUB-ASSY, BACK DOOR

main67005-60M50iTJH251..U202407

main67005-60M60iTJH251..R202407

main67005-60N50iTJH251..A,L202407

67765ACOVER, BACK DOOR SERVICE HOLE, NO.1

main67765-0G010iTJH251..R202407

main67765-0G020iTJH251..A,L202407

67766COVER, BACK DOOR SERVICE HOLE, NO.2

main67766-0G010iTJH251..A,L,R202407

67767BCOVER, BACK DOOR SERVICE HOLE, NO.3

main67767-0G010iTJH251..A,L,R202407

67768CCOVER, BACK DOOR SERVICE HOLE, NO.4

main67768-0G010iTJH251..A,L,R202407

67837LSEAL, DOOR DUST PROOF

main67837-0G040iTJH251202407

(L)

main67837-30120iTJH251202407

(J)

67847COVER, BACK DOOR SERVICE HOLE, RH

main67847-0G040-C0iTJH251..L,R202407

BLACK,TRIM1#,2#

main67847-0G040-C0iTJH251..L,R202407

BLACK,TRIM2#,4#

main67847-0G040-C0iTJH251..L,R202407

BLACK,TRIM2#

67881AWEATHERSTRIP, BACK DOOR

main67881-0G030iTJH251202407

67891ASEAL, BACK DOOR

main67891-0G010iTJH251..R,U202407

main67891-0G020iTJH251..A,L202407

67935CGARNISH, BACK DOOR

main67935-0G010iTJH251..R202407

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main67935-0G020iTJH251..A,L202407

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

67937BGARNISH, BACK DOOR SIDE, RH

main67937-0G040-C0iTJH251..R202407

BLACK,TRIM1#,2#

main67937-0G040-C0iTJH251..R202407

BLACK,TRIM2#

main67937-0G050-C0iTJH251..A202407

BLACK,TRIM2#,4#

main67937-0G050-C0iTJH251..A202407

BLACK,TRIM1#,2#

67937CCLIP(FOR BACK DOOR SIDE GARNISH)

main90467-09245iTJH251202407

67938AGARNISH, BACK DOOR SIDE, LH

main67938-0G040-C0iTJH251..R202407

BLACK,TRIM1#,2#

main67938-0G040-C0iTJH251..R202407

BLACK,TRIM2#

main67938-0G050-C0iTJH251..A202407

BLACK,TRIM2#,4#

main67938-0G050-C0iTJH251..A202407

BLACK,TRIM1#,2#

67939BGARNISH, BACK DOOR, CENTER

main67939-0G040-C0iTJH251..R202407

BLACK,TRIM1#,2#

main67939-0G040-C0iTJH251..R202407

BLACK,TRIM2#

main67939-0G050-C0iTJH251..R202407

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM1#,2#

main67939-0G060-C0iTJH251..A202407

BLACK,TRIM2#,4#

main67939-0G060-C0iTJH251..A202407

BLACK,TRIM1#,2#

main67939-0G070-C0iTJH251..A202407

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM2#,4#

main67939-0G070-C0iTJH251..A202407

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,BLACK,TRIM1#,2#

67939CCLIP(FOR BACK DOOR CENTER GARNISH)

main90467-C0036iTJH251202407

68131GLASS, BACK DOOR

main68105-0G080iTJH251..A,L202407

main68105-0G900iTJH251..R,U202407

69212CHANDLE, BACK DOOR INSIDE

main69291-0G010-C0iTJH251..L,R202407

BLACK,TRIM1#,2#

main69291-0G010-C0iTJH251..L,R202407

BLACK,TRIM2#,4#

75126APLATE, REAR LICENSE PLATE BRACKET SUPPORT

main75126-0N010iTJH251202407

75837ECOVER, BACK DOOR FINISH

main75837-0G010-C0iTJH251..L,R202407

BLACK,TRIM1#,2#

main75837-0G010-C0iTJH251..L,R202407

BLACK,TRIM2#,4#

main75837-0G010-C0iTJH251..L,R202407

BLACK,TRIM2#

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-0G050iTJH251..U202407

NO PAINT REQ.

main76801-0G900iTJH251..A,L,R202407

PAINT REQ.

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-0G060iTJH251..A,L202407

main76812-0G080iTJH251..R202407

76813CGARNISH, BACK DOOR, OUTSIDE NO.3

main76813-0G020iTJH251..U202407

76815CMOULDING, BACK DOOR OUTSIDE GARNISH, LWR RH

main76815-0G020iTJH251..A,L,R202407

76816BMOULDING, BACK DOOR OUTSIDE GARNISH, LWR LH

main76816-0G020iTJH251..A,L,R202407

76817CLIP, BACK DOOR OUTSIDE GARNISH

main75868-60020iTJH251202407

76821CPROTECTOR, BACK DOOR GARNISH SIDE, RH

main76821-0G010iTJH251202407

76822DPROTECTOR, BACK DOOR GARNISH SIDE, LH

main76822-0G010iTJH251202407

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-0G100iTJH251202407

76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-0G120iTJH251202407

87912BPROTECTOR, OUTER MIRROR

main87912-30030iTJH251..A,L,R202407

89437VCOVER, SENSOR

main89437-0E060iTJH251..U202407

9010506344

main90105-06344

90105C0409

main90105-C0409

9016740057

main90167-40057

90167C0020

main90167-C0020

9017906362

main90179-06362

9046708229

main90467-08229

9046709206

main90467-09206

90467C0033

main90467-C0033

44 parts on this diagram · 3 diagrams in section
