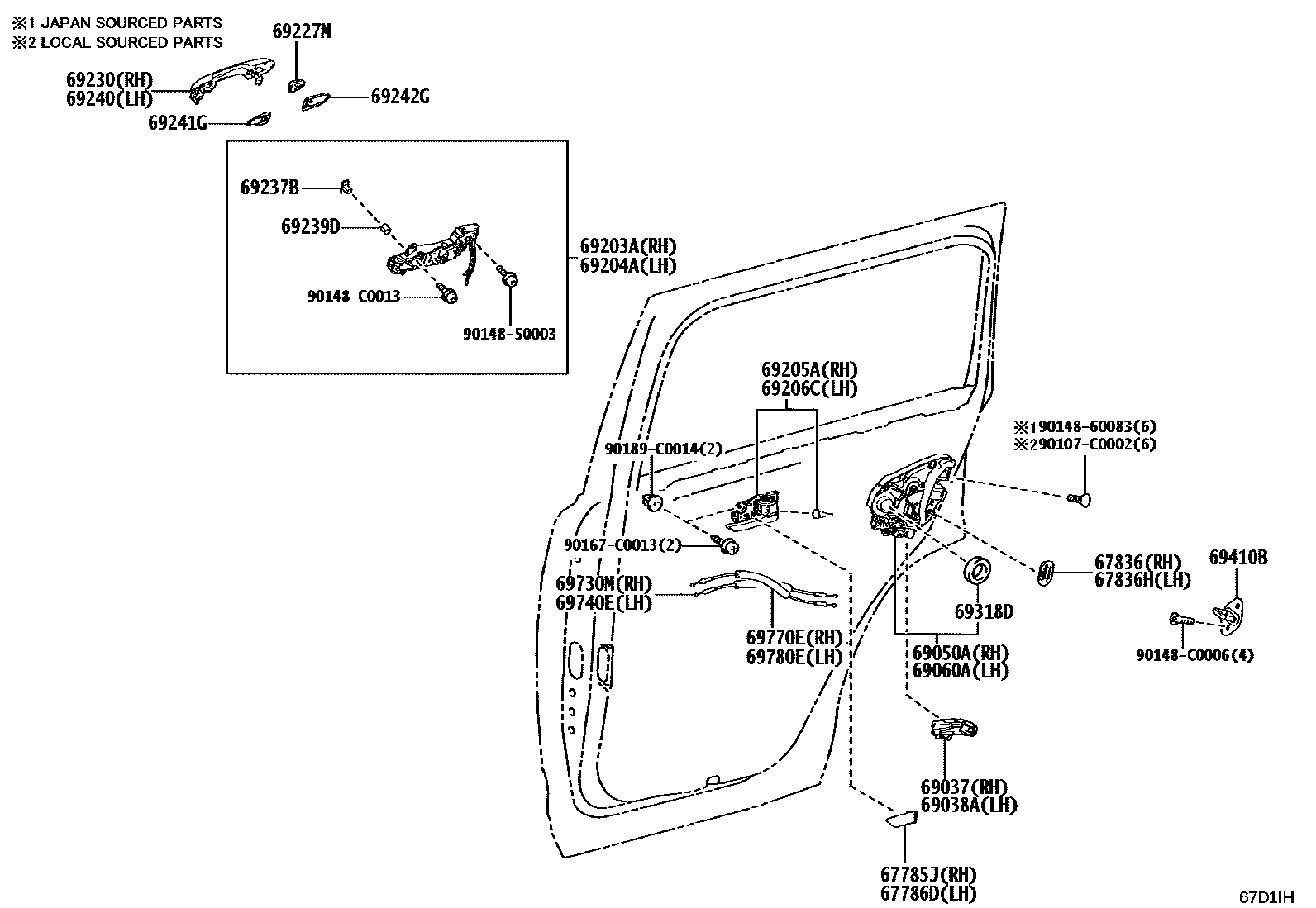

REAR DOOR LOCK & HANDLE
67785JCOVER, REAR DOOR TRIM, UPPER RH
BLACK,TRIM2#,4#
67786DCOVER, REAR DOOR TRIM, UPPER LH
BLACK,TRIM2#,4#
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#,4#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#,4#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
BLACK
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATINUM WHITE PEARL MC.,089
DK.GRAY,1L7
BLACK MC.,089 ,1L7 ,209 ,4V8
AVANT-GARDE BRONZE ME.,4V8
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATINUM WHITE PEARL MC.,089
DK.GRAY,1L7
BLACK MC.,089 ,1L7 ,209 ,4V8
AVANT-GARDE BRONZE ME.,4V8
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
90107C0002
main90107-C0002
9014850003
main90148-50003
9014860083
main90148-60083
90148C0006
main90148-C0006
90148C0013
main90148-C0013
90167C0013
main90167-C0013
90189C0014
main90189-C0014
32 parts on this diagram · 1 diagram in section
