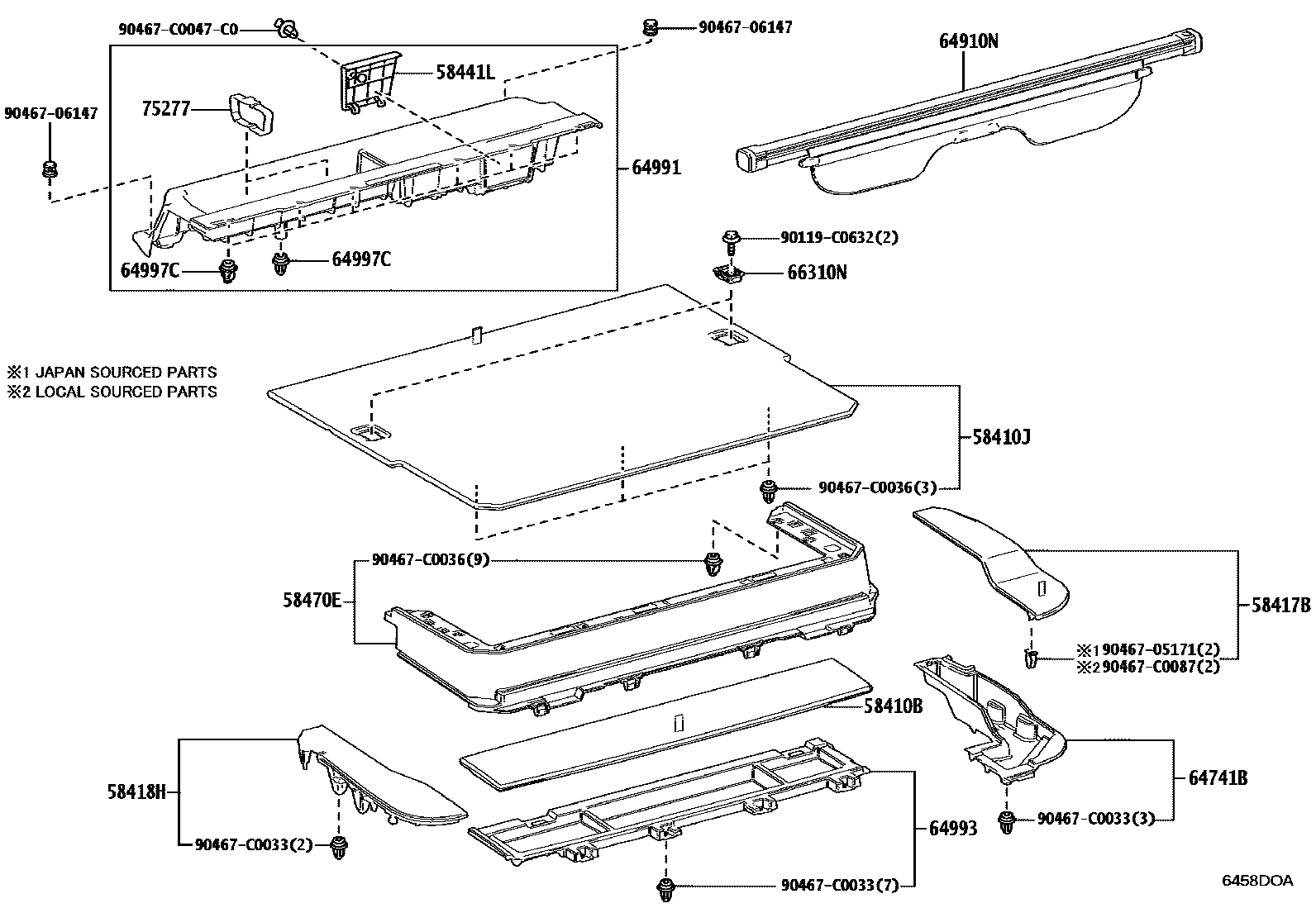

DECK BOARD & DECK TRIM COVER
58410BBOARD ASSY, DECK
BLACK,TRIM1#,2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
LUGGAGE TRAY-WITH(IN LINE ACCESSORY)
58410JBOARD ASSY, DECK
BLACK,TRIM1#,2#
BLACK,TRIM2#
58417BBOARD, REAR FLOOR, REAR RH
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
REAR SEAT-4:4 TUMBLE & 5:5,BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
LUGGAGE TRAY-WITH(IN LINE ACCESSORY)
58418HBOARD, REAR FLOOR, REAR LH
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
REAR SEAT-4:4 TUMBLE & 5:5,BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
LUGGAGE TRAY-WITH(IN LINE ACCESSORY)
58441LCOVER, BATTERY SERVICE HOLE
58470EBOARD ASSY, REAR FLOOR, NO.1
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
REAR SEAT-4:4 TUMBLE & 5:5,BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
64741BBOX, DECK SIDE TRIM, RH
REAR SEAT-4:4 TUMBLE & 5:5
LUGGAGE TRAY-WITH(IN LINE ACCESSORY)
64910NCOVER ASSY, TONNEAU
TONNEAU COVER-WITH
TONNEAU COVER-WITH
64991BOX, DECK FLOOR, FRONT
64993BOX, DECK FLOOR, REAR
LUGGAGE TRAY-WITH(IN LINE ACCESSORY)
64997CCLIP(FOR DECK FLOOR BOX)
66310NHOOK ASSY, ROPE
75277BAND, TOOL, NO.1
REAR SEAT-4:4 TUMBLE & 5:5
90119C0632
main90119-C0632
9046705171
main90467-05171
9046706147
main90467-06147
90467C0033
main90467-C0033
90467C0036
main90467-C0036
90467C0047C0
main90467-C0047C0
90467C0087
main90467-C0087
20 parts on this diagram · 3 diagrams in section
