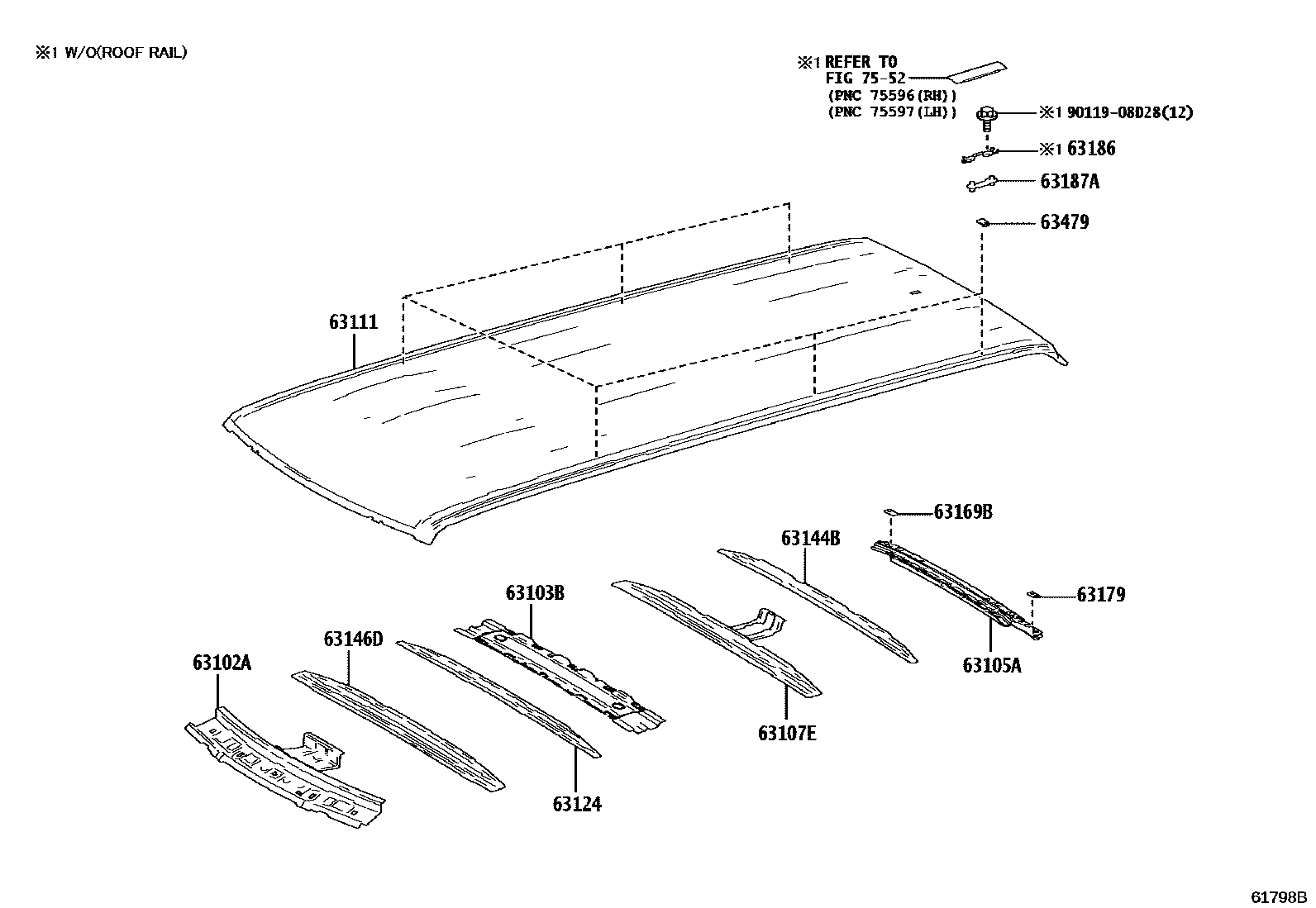

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(MOON ROOF) 0003 1ROOF PANEL(PANORAMA ROOF) 0004 1MOON ROOF 0005 1PANORAMA ROOF 0006 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0G900iTJH251..U202407

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-0G010iTJH251..U202407

main63106-0G010iTJH251..A,L,R202407

MOON ROOF-WITH(PANORAMA ROOF)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0G020iTJH251202407

63107EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5

main63107-0G010iTJH251202407

63111PANEL, ROOF

main63111-0G020iTJH251..A,L202407

main63111-0G040iTJH251..U202407

main63111-0G050iTJH251..R202407

63124REINFORCEMENT, ROOF PANEL, NO.1

main63123-0G010iTJH251..U202407

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0G020iTJH251202407

63146DREINFORCEMENT, ROOF PANEL, NO.6

main63128-0G010iTJH251..U202407

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-0G030iTJH251202410

main63169-0R040iTJH251202407-202410

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-0G030iTJH251202410

main63179-0R040iTJH251202407-202410

63186BRACKET, ROOF RACK, FRONT

main63185-42020iTJH251202407

63187ABRACKET, ROOF RACK, REAR

main63187-35020iTJH251202407

63479RETAINER, ROOF INNER RACK

main63479-48010iTJH251202407

7552

9011908D28

main90119-08D28

15 parts on this diagram · 6 diagrams in section
