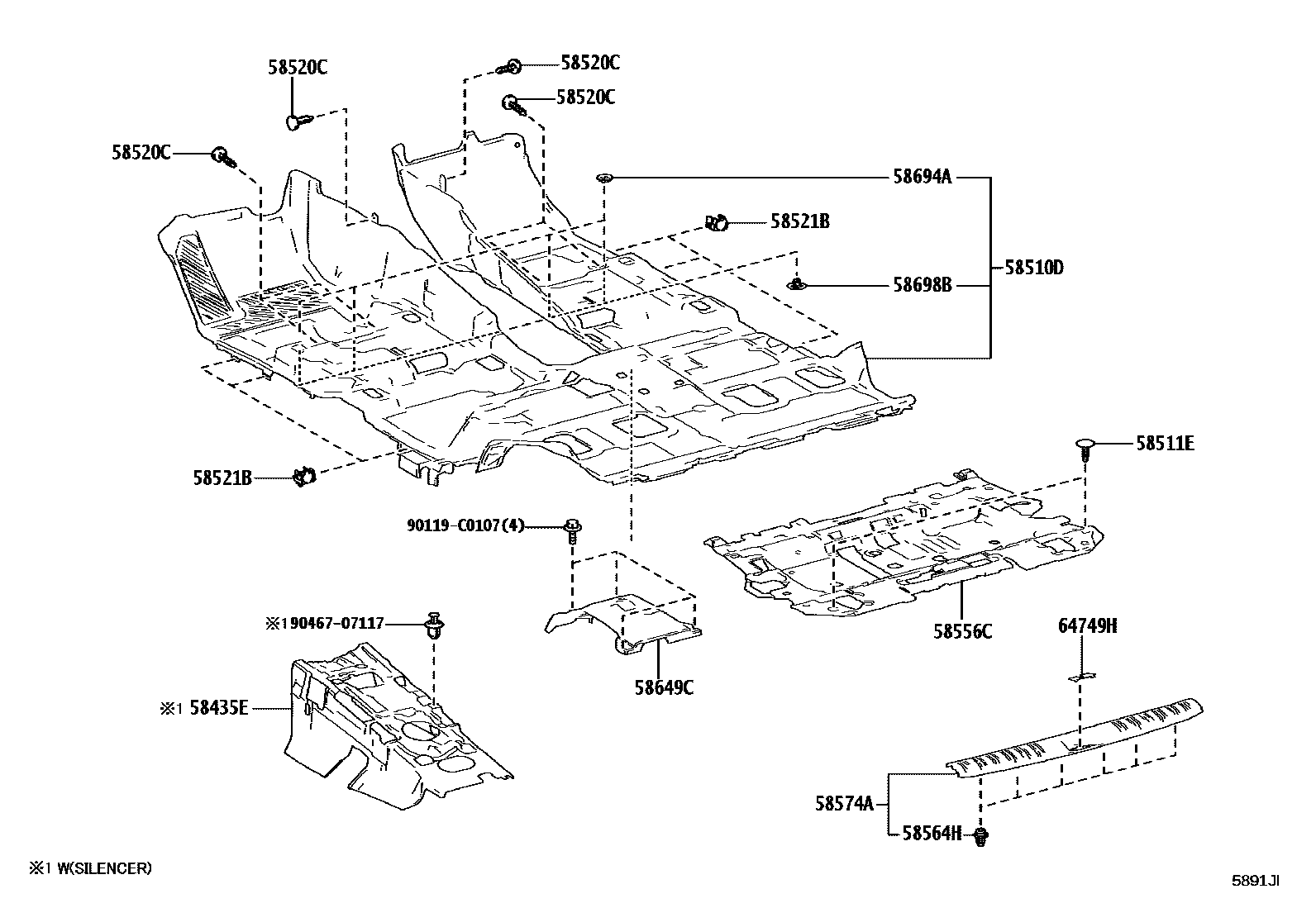

FLOOR MAT & SILENCER PAD

0001 1 0002 1W(REAR NO.2 SEAT) 0003 1FLOOR MAT

58435ESILENCER, FRONT FLOOR, CENTER

main5855A-0G010iTJH251..U202407-202412

58510DCARPET ASSY, FLOOR, FRONT

main58510-0G140-C0iTJH251..U202407

BLACK,TRIM1#,2#

main58510-0G150-C0supersedes 58510-0G140-C0iTJH251..L202407

BLACK,TRIM1#,2#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-C0016-C1×2iTJH251202407

BLACK

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-C0059-C0×6iTJH251..U202407

BLACK,TRIM1#,2#

58521BHOOK, FLOOR CARPET

main58521-0G010×6iTJH251202407

58556CSILENCER, REAR FLOOR

main5856A-0G010iTJH251202407

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-C0033×6iTJH251202407

58574APLATE, REAR FLOOR MAT SUPPORT, REAR

main58574-0G030-C0iTJH251..U202407

BLACK,TRIM1#,2#

58649CCOVER, MAT SET PLATE

main58649-0G010iTJH251202407

58694APLATE, MAT SET, UPPER

main58694-78010×4iTJH251202407

58698BPLATE, MAT SET, LOWER

main58698-78010×4iTJH251202407

64749HCOVER, BACK DOOR STRIKER

main64749-0G010-C0iTJH251..U202407

BLACK,TRIM1#,2#

90119C0107

main90119-C0107

9046707117

main90467-07117

14 parts on this diagram · 3 diagrams in section
