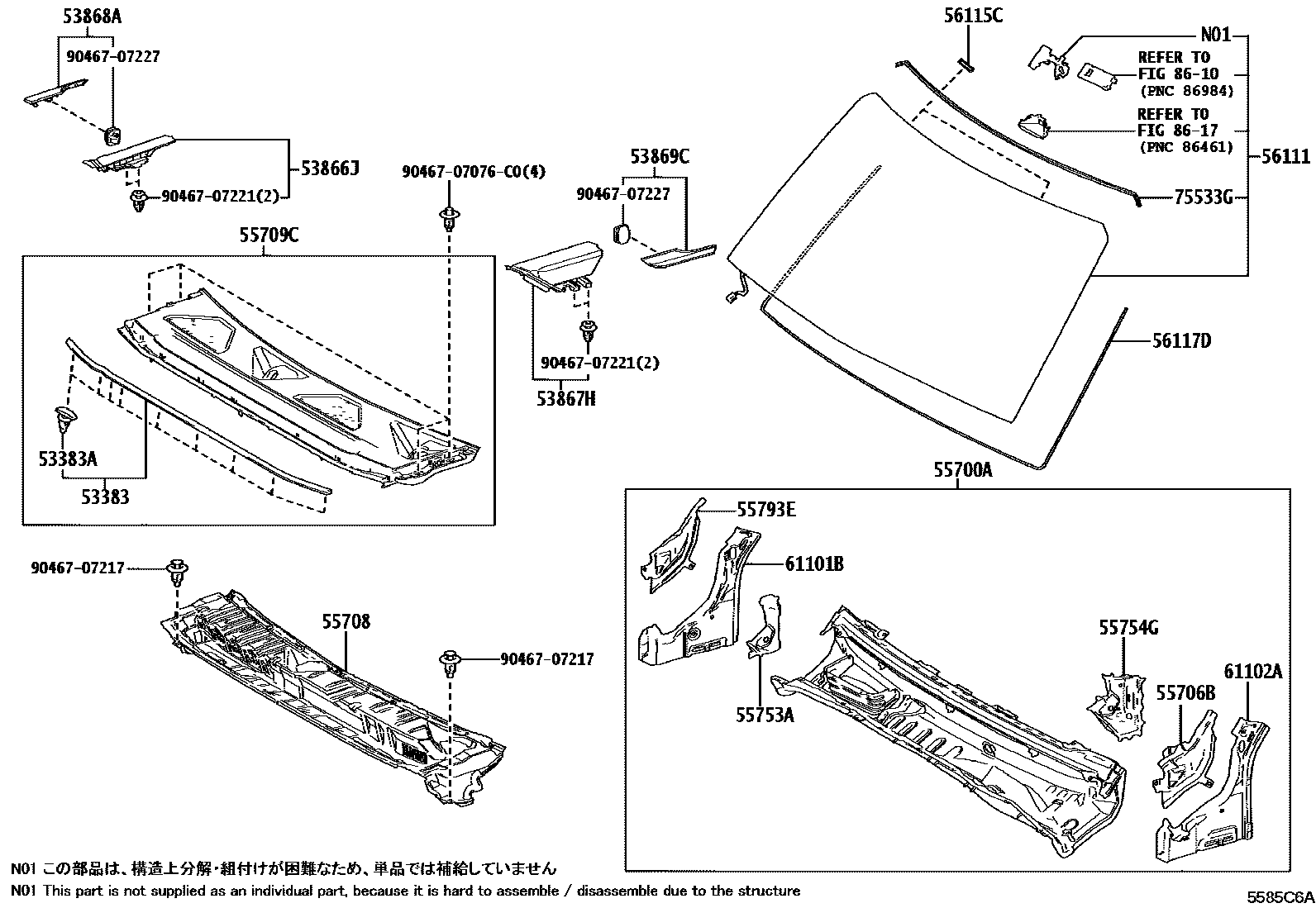

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-0G030iTJH251202407

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main67867-0C010iTJH251¥200202407

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0G030iTJH251202407

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0G030iTJH251202407

53868ASEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-0G010iTJH251202407

53869CSEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-0G010iTJH251202407

55700APANEL ASSY, COWL TOP

main55700-0G051iTJH251202407

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55707-0G010iTJH251202407

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0G040iTJH251202407

55709CCOVER SUB-ASSY, COWL SIDE VENTILATOR, LH

main55709-0G010iTJH251202407

55753ABRACKET, INSTRUMENT PANEL TO COWL

main55753-0G010iTJH251202407

55754GBRACKET, INSTRUMENT PANEL TO COWL, NO.2

main55754-0G010iTJH251202407

55793ECOVER, COWL REINFORCEMENT, UPPER NO.2 RH

main55793-0G010iTJH251202407

56111GLASS, WINDSHIELD

main56101-0G160iTJH251..A,L202407

main56101-0G170iTJH251..R,U202407

56115CSTOPPER, WINDSHIELD GLASS

main56115-60050iTJH251¥100202407

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-0G020iTJH251202407

L=2581

main56117-0G020iTJH251202407

L=2581,HEAD UP DISPLAY-WITH

61101BPANEL SUB-ASSY, COWL SIDE, RH

main61101-0G010iTJH251202407

61102APANEL SUB-ASSY, COWL SIDE, LH

main61102-0G010iTJH251202407

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-0G020iTJH251202407

8610

8617

9046707076C0

main90467-07076C0

9046707217

main90467-07217¥80

9046707221

main90467-07221¥80

9046707227

main90467-07227¥80

25 parts on this diagram · 1 diagram in section
