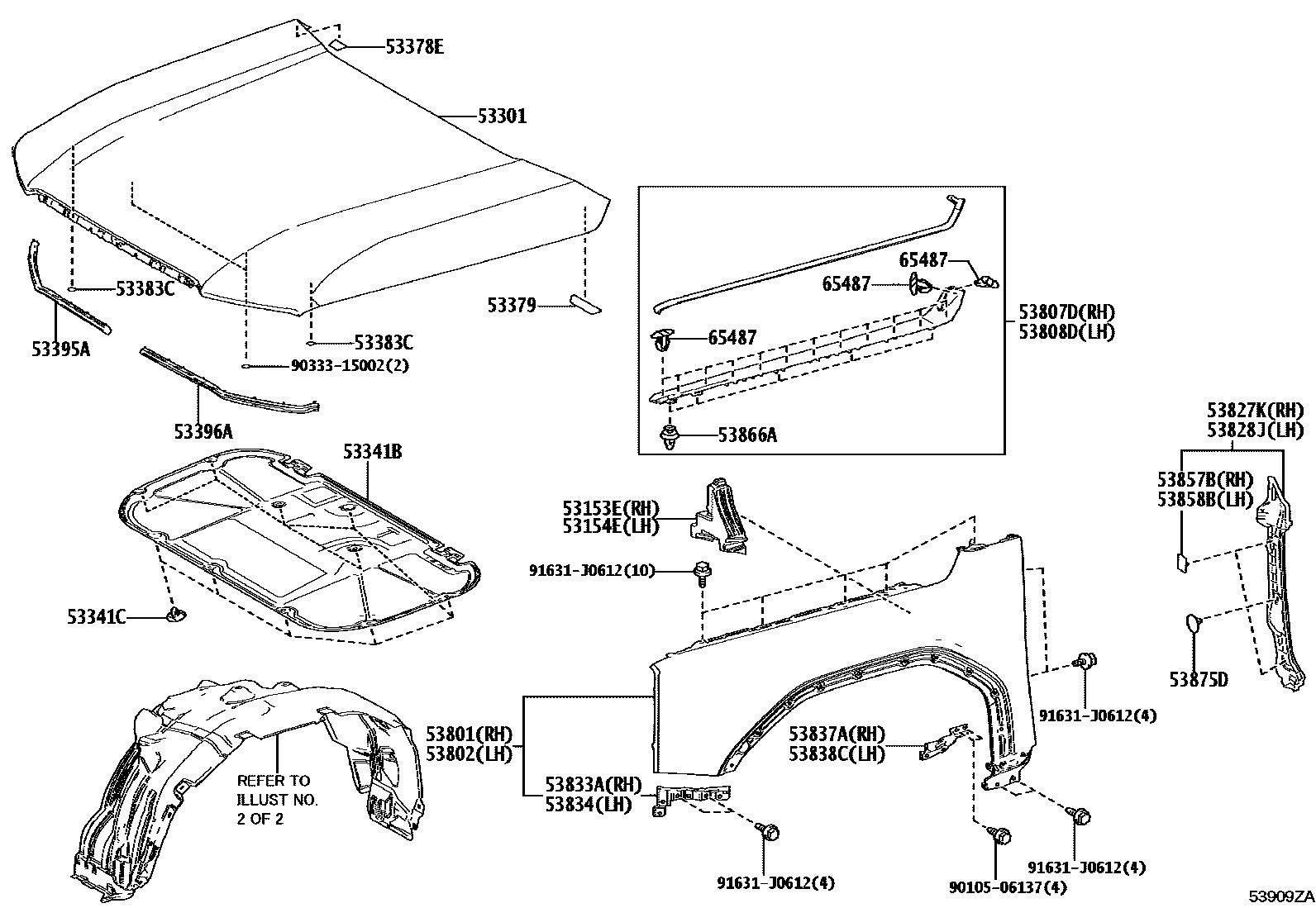

HOOD & FRONT FENDER
53153EGUIDE, FRONT SIDE AIR
53154EGUIDE, FRONT SIDE AIR, NO.2
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53378ESEAL, HOOD AIR INTAKE DUCT, RH
53379SEAL, HOOD AIR INTAKE DUCT, LH
53395ASEAL, HOOD TO FRONT END PANEL, NO.1
53396ASEAL, HOOD TO FRONT END PANEL, NO.2
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH
53833APANEL, FRONT FENDER SIDE, LOWER RH
53834PANEL, FRONT FENDER SIDE, LOWER LH
53837ABRACKET, FRONT SIDE PANEL, NO.2
53838CBRACKET, FRONT SIDE PANEL, NO.2 LH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)
(J)
(L)
53875DCLIP, FRONT FENDER LINER, NO.2
(L)
(J)
65487CLIP, CORNER PROTECTOR
9010506137
main90105-06137
9033315002
main90333-15002
91631J0612
main91631-J0612
28 parts on this diagram · 2 diagrams in section
