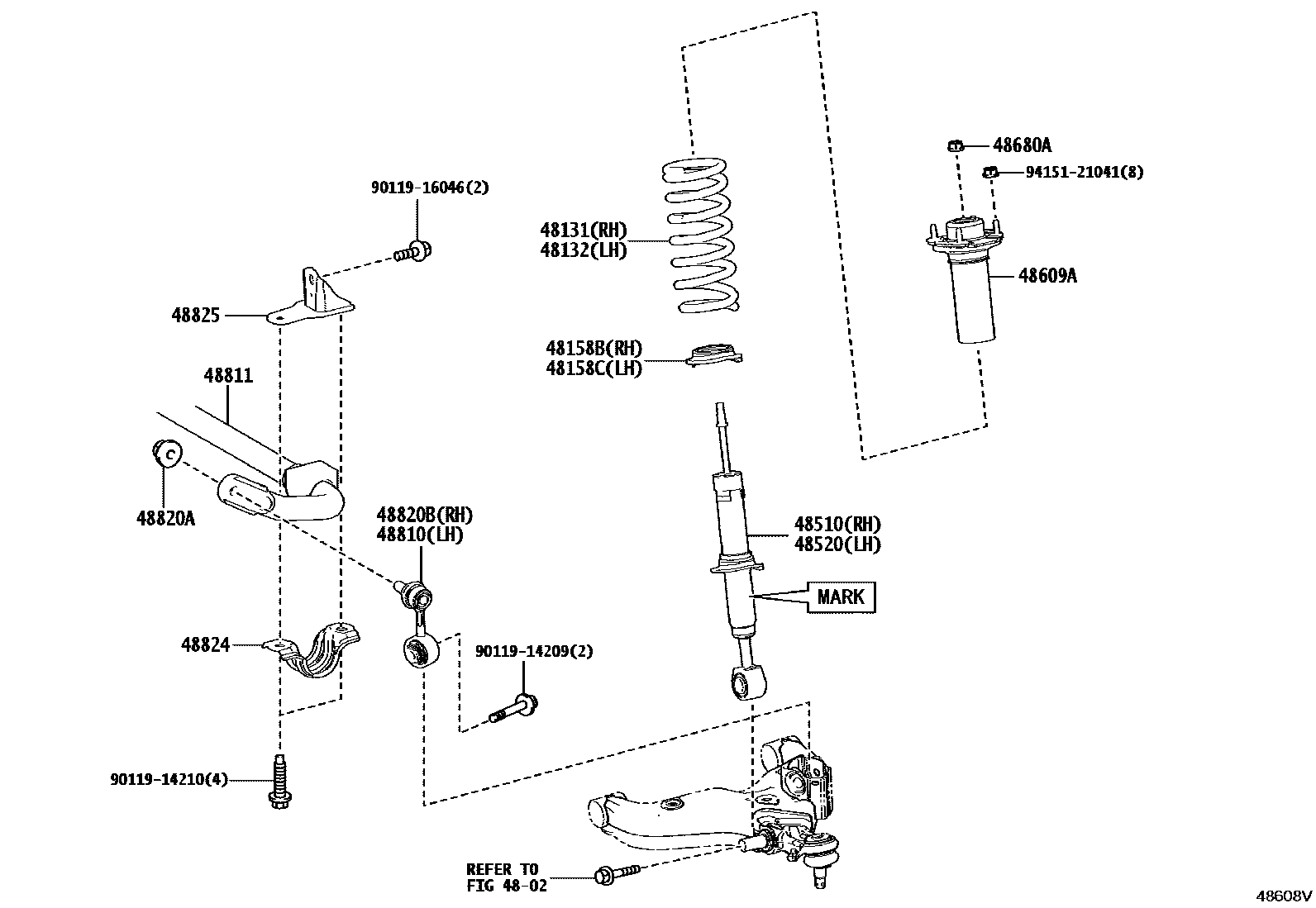

FRONT SPRING & SHOCK ABSORBER

0001 1W/O(ON-OFF STABILIZER) 0002 1W(ON-OFF STABILIZER)

4802

48131SPRING, FRONT COIL, RH

main48131-60S71iTJH251..R,U202407

main48131-60S81iTJH251..A,L202407

48132SPRING, FRONT COIL, LH

main48131-60S71iTJH251..R,U202407

main48131-60S81iTJH251..A,L202407

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-60020iTJH251202407

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-60020iTJH251202407

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-69815iTJH251..A202407

MARK 48510-60590

main48510-80C54iTJH251..R,U202407

MARK 48510-60560

main48510-80C56iTJH251..L202407

MARK 48510-60550

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-69815iTJH251..A202407

MARK 48510-60590

main48510-80C54iTJH251..R,U202407

MARK 48510-60560

main48510-80C56iTJH251..L202407

MARK 48510-60550

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-60120iTJH251202407

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94188-01401iTJH251202407

48810LINK ASSY, FRONT STABILIZER, LH

main48810-60100iTJH251202407

48811BAR, STABILIZER, FRONT

main48804-60210iTJH251..L,R,U202407

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-16007iTJH251202407

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-60150iTJH251202407

48824BRACKET, STABILIZER, FRONT

main48824-60260iTJH251202407

48825BRACKET, STABILIZER, NO.2

main48827-60130iTJH251..L,R,U202407

9011914210

main90119-14210

9011916046

main90119-16046

9415121041

main94151-21041

18 parts on this diagram · 2 diagrams in section
