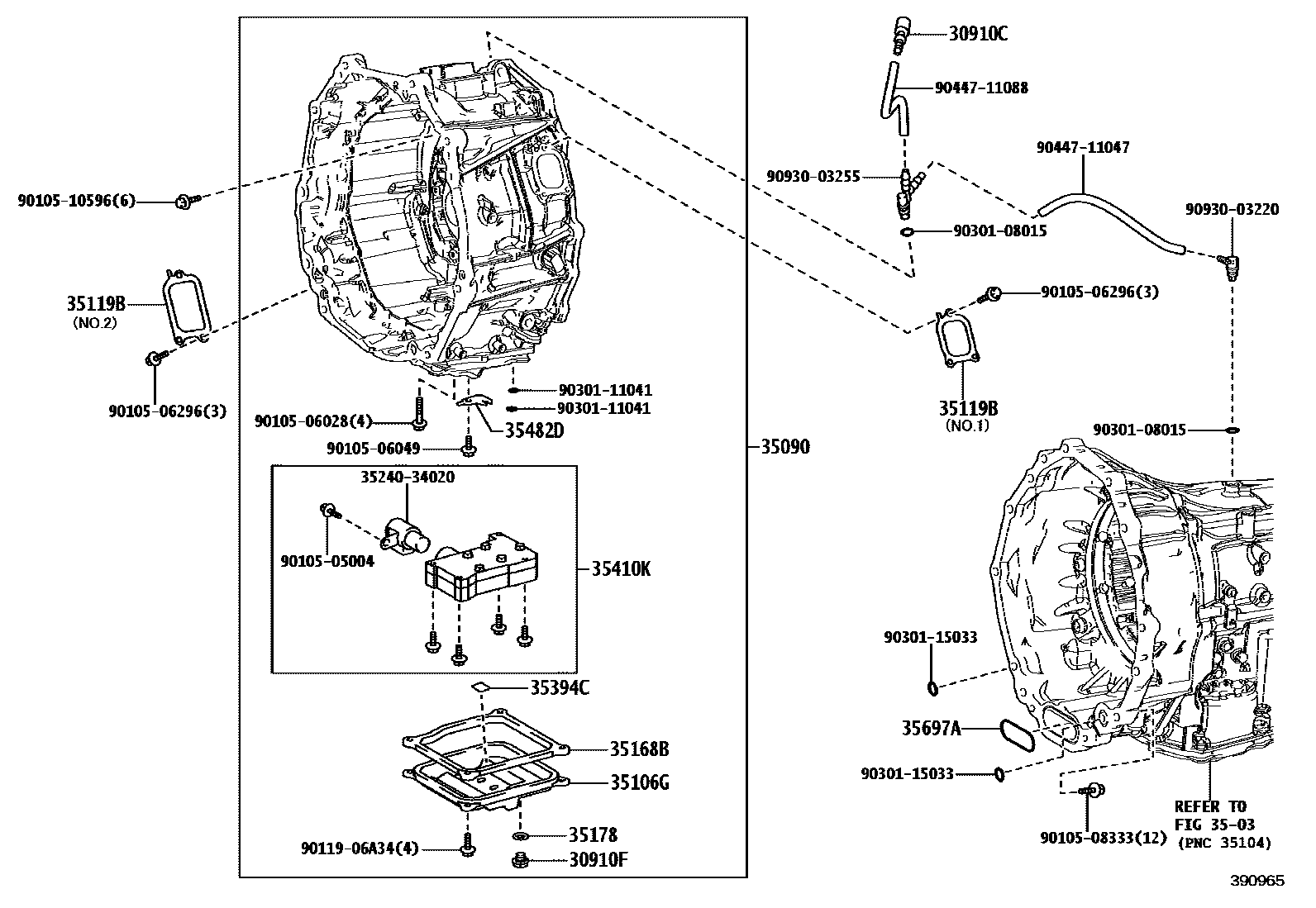

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

30910FPLUG(FOR HYBRID VEHICLE TRANSMISSION OIL PAN)

main90341-10011iTJH251202407

3503

35090MODULE ASSY, HYBRID

main35090-60080iTJH251202407

35106GPAN SUB-ASSY, TRANSAXLE OIL

main35106-34050iTJH251202407

35119BCOVER, TRANSMISSION HOUSING

main35119-34010iTJH251202407

NO.1:REFER ILLUST.

main35119-34030iTJH251202407

NO.2:REFER ILLUST.

35168BGASKET, TRANSAXLE OIL PAN

main35168-34030iTJH251202407

35178GASKET, TRANSMISSION DRAIN PLUG

main35178-30010iTJH251202407

35394CMAGNET, OIL CLEANER

main35394-48010iTJH251202407

35410KBODY ASSY, TRANSMISSION VALVE

main35400-34090iTJH251202407

35482DCLAMP, TEMPERATURE SENSOR

main35482-34010iTJH251202407

35697ARING, TRANSAXLE OIL SEAL

main35697-34010iTJH251202407

3524034020SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-34020

9010505004

main90105-05004

9010506028

main90105-06028

9010506049

main90105-06049

9010506296

main90105-06296

9010508333

main90105-08333

9010510596

main90105-10596

9011906A34

main90119-06A34

9030108015

main90301-08015

9030111041

main90301-11041

9030115033

main90301-15033

9044711047

main90447-11047

9044711088

main90447-11088

9093003220

main90930-03220

9093003255

main90930-03255

26 parts on this diagram · 2 diagrams in section
