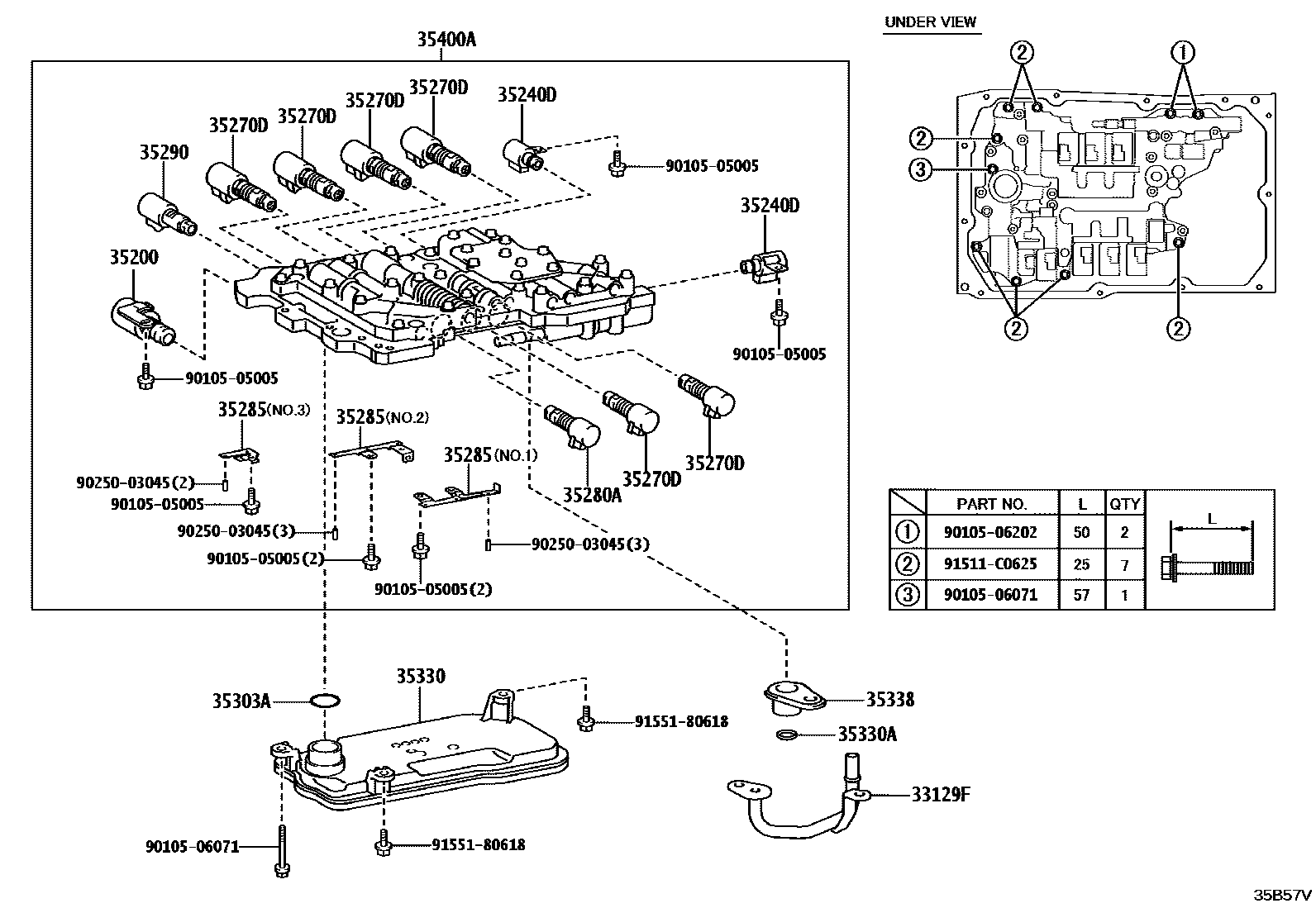

VALVE BODY & OIL STRAINER (ATM)

0001 1L580F 0002 1L580F

33129FPIPE, TRANSMISSION OIL

main33129-60070iTJH251202407

35200PUMP ASSY, OIL, W/SOLENOID

main35300-04010iTJH251202407

35240DVALVE, SOLENOID(SL)

main35240-60060iTJH251202407

35270DVALVE, SOLENOID(SL)

main35270-60090iTJH251202407

35280AVALVE, SOLENOID(SLU)

main35280-60030iTJH251202407

35285PLATE, SOLENOID LOCK

main35285-60070iTJH251202407

NO.1:REFER ILLUST.

main35285-60080iTJH251202407

NO.2:REFER ILLUST.

main35285-60090iTJH251202407

NO.3:REFER ILLUST.

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-60080iTJH251202407

35303ARING, O (FOR OIL STRAINER)

main90301-27010iTJH251202407

35330STRAINER ASSY, VALVE BODY OIL

main35330-60150iTJH251202407

35330ARING, O (FOR OIL STRAINER)

main90301-12023iTJH251202407

35338SPACER, OIL STRAINER

main35338-34010iTJH251202407

35400ABODY ASSY, TRANSMISSION VALVE W/SOLENOID

main35400-60620iTJH251202407

9010505005

main90105-05005

9010506071

main90105-06071

9010506202

main90105-06202

9025003045

main90250-03045

91511C0625

main91511-C0625

9155180618

main91551-80618

18 parts on this diagram · 2 diagrams in section
