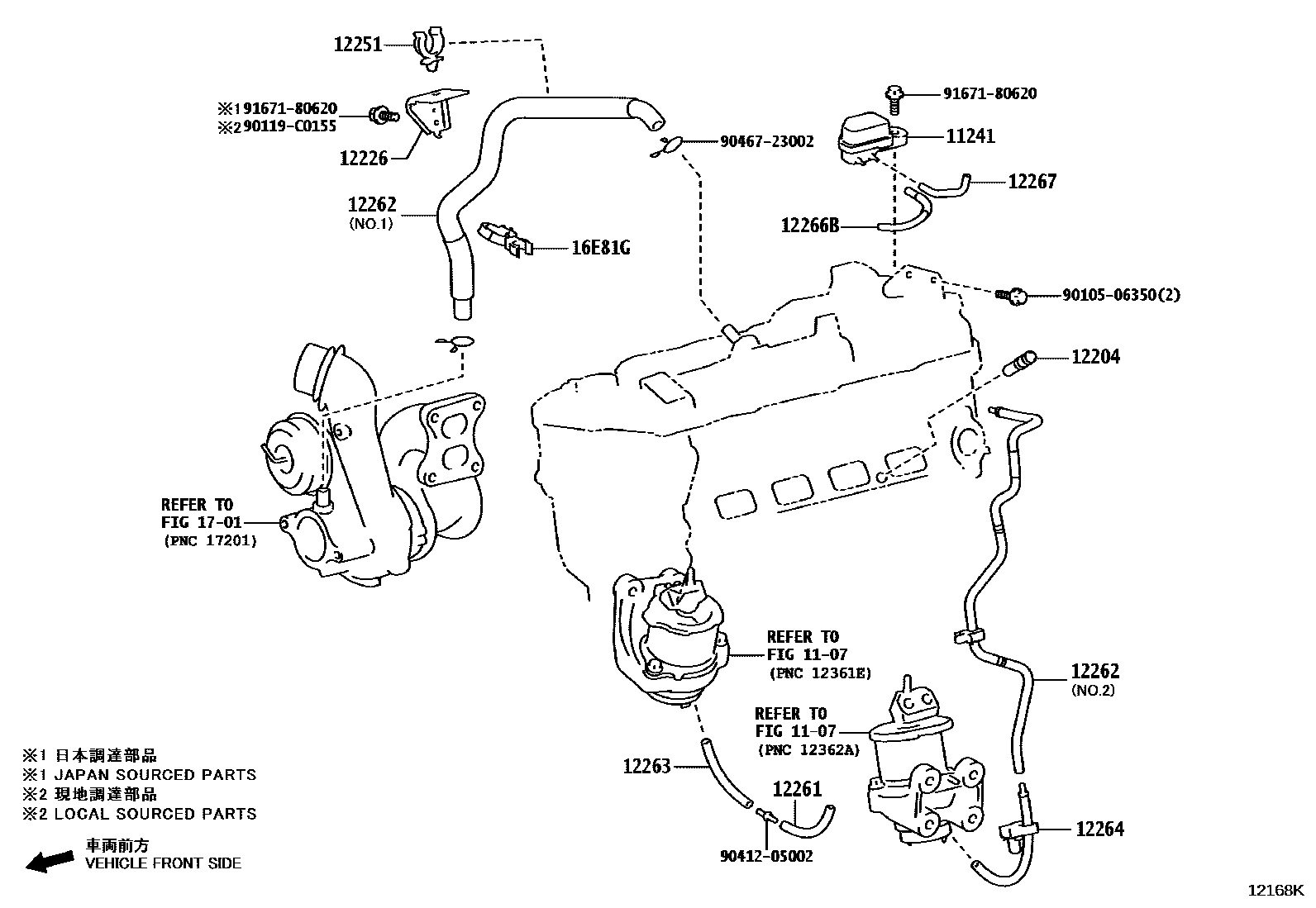

VENTILATION HOSE
1107
11241CHAMBER, PCV PRESSURE SENSOR
12204VALVE SUB-ASSY, VENTILATION
12226BRACKET, VENTILATION HOSE
12251CLAMP, VENTILATION TUBE
12261HOSE, VENTILATION
12262HOSE, VENTILATION, NO.2
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
12263HOSE, VENTILATION, NO.3
12264HOSE, VENTILATION, NO.4
12266BHOSE, VENTILATION PRESSURE SENSOR, NO.1
12267HOSE, VENTILATION PRESSURE SENSOR, NO.2
16E81GCLAMP, HOSE
1701
9010506350
main90105-06350
90119C0155
main90119-C0155
9041205002
main90412-05002
9046723002
main90467-23002
9167180620
main91671-80620
18 parts on this diagram · 1 diagram in section
