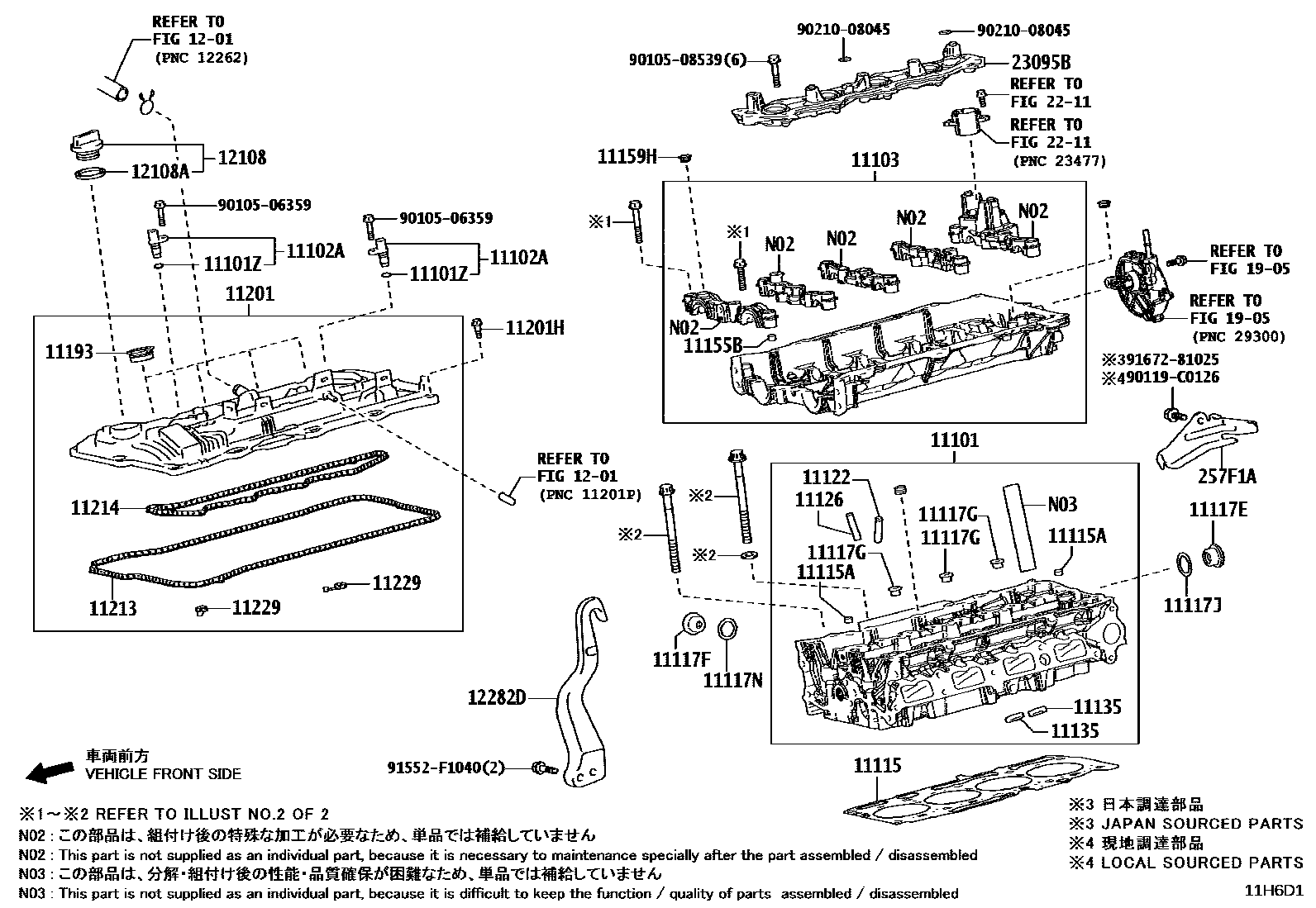

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ZO RING, CAM POSITION SENSOR
11102ASENSOR, CAMSHAFT POSITION
11103HOUSING SUB-ASSY, CAMSHAFT
11115GASKET, CYLINDER HEAD
11115APIN, RING
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11135SEAT, EXHAUST VALVE
STD
11155BPIN, RING
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
11201HBOLT(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
11229GASKET, CYLINDER HEAD COVER, NO.3
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12282DHANGER, ENGINE, NO.2
1905
2211
23095BHOLDER SUB-ASSY, INJECTOR
257F1AINSULATOR, HOSE VACUUM HEAT
9010506359
main90105-06359
9010508539
main90105-08539
90119C0126
main90119-C0126
9021008045
main90210-08045
91552F1040
main91552-F1040
9167281025
main91672-81025
36 parts on this diagram · 2 diagrams in section
