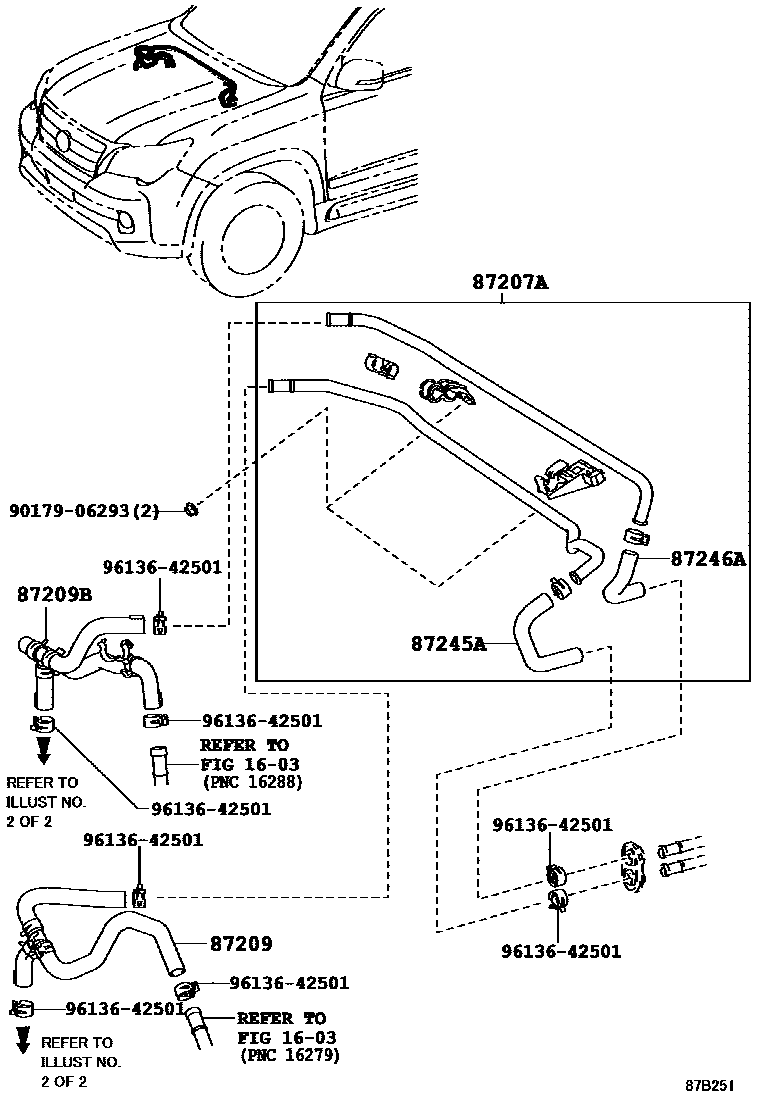

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1REAR 0005 1REAR 0006 1REAR

1603

87207APIPE & HOSE SUB-ASSY, WATER A

main87207-60240iURJ150200911-200912

main87207-60241iURJ150201908

87209HOSE SUB-ASSY, WATER

main87209-60D41iGRJ158201206-201309

main87209-60D90iURJ150200911-201112

main87209-60D91iURJ150201908

main87209-60G90iGRJ158201505-201711

87209BHOSE SUB-ASSY, WATER, B

main87209-60D80iURJ150200911-201112

main87209-60D81iURJ150201308-201908

87245HOSE, HEATER WATER, INLET

main87245-60E60iGRJ158,URJ150201308-201908

87245AHOSE, HEATER WATER, INLET A

main87245-60D50iGRJ158201309-201505

main87245-60J50iURJ150201908

main87245-60L00iGRJ158201505-201711

87246HOSE, HEATER WATER, OUTLET

main87245-60E50iURJ150..CHI200911-201206

87246AHOSE, HEATER WATER, OUTLET A

main87245-60D40iGRJ158201309-201505

main87245-60J60iURJ150..CHI200911-201206

main87245-60K90iGRJ158201505-201711

9017906293

main90179-06293

9613642501

main96136-42501

10 parts on this diagram · 6 diagrams in section
