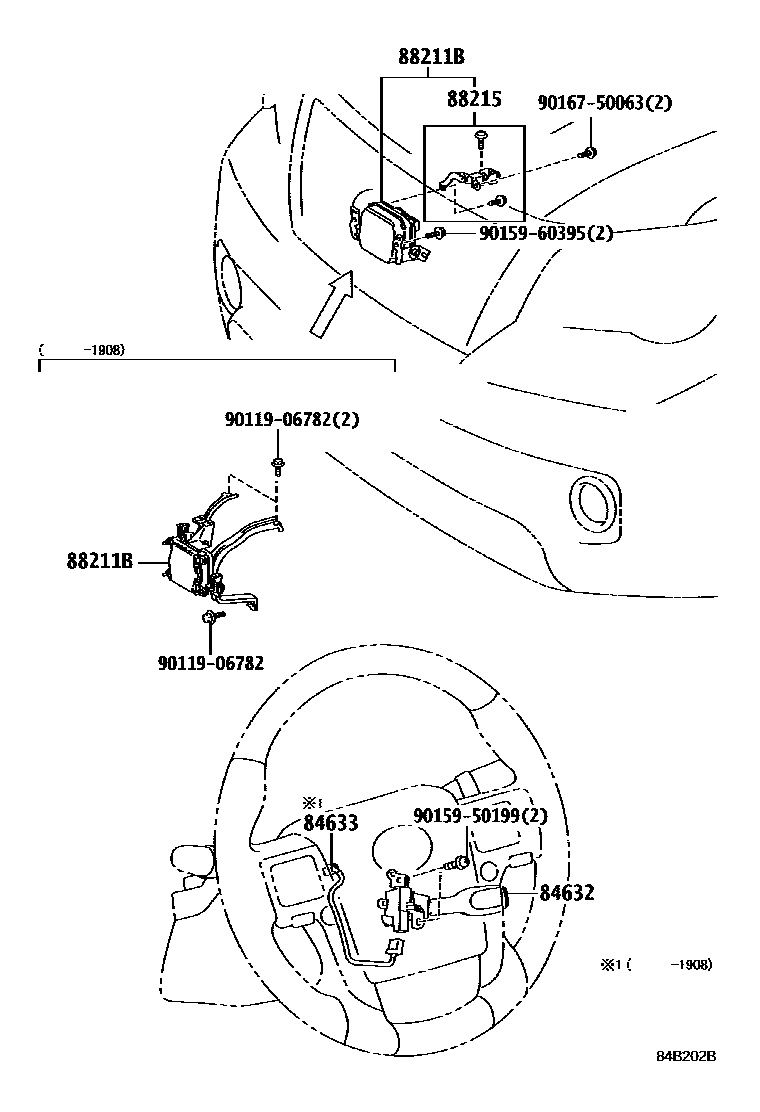

CRUISE CONTROL (AUTO DRIVE)

84632SWITCH, CRUISE CONTROL MAIN

main84632-48010supersedes 84632-34011iURJ150201908

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

84633WIRE, CRUISE CONTROL SWITCH

main84633-48010

main84633-48020

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-48071iURJ150201908

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

main88210-60050iURJ150200911-201206

PRE-COLLISION SYSTEM-WITH(*MRT)

sub88210-60100

main88210-60051iURJ150201206-201308

PRE-COLLISION SYSTEM-WITH(*MRT)

88215BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1

main88201-60010iURJ150201908

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

9011906782

main90119-06782

9015950199

main90159-50199

9015960395

main90159-60395

9016750063

main90167-50063

8 parts on this diagram · 1 diagram in section
