ELECTRONIC FUEL INJECTION SYSTEM
28380RELAY ASSY, FUEL PUMP
8401
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910ZRELAY, INJECTION (FOR EFI)
85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89438ASWITCH, POWER STEERING OIL PRESSURE
89570ACOMPUTER ASSY, FUEL PUMP CONTROL
89581ADRIVER, AIR INJECTION CONTROL
89661COMPUTER, ENGINE CONTROL
P/N LABEL=8966160M00
PHILIPPINES SPEC
ELSALVADOR
PHILIPPINE SPEC
*CSA(EXCEPT ELSALVADOR)
SOUTH/CENTRAL AMERICA SPEC
ELSALVADOR,P/N LABEL=8966160Y20
VIETNAM SPEC,P/N LABEL=8966160Y20
BOLIVIA,DOMINICA,PANAMA SPEC,P/N LABEL=8966160Y20
PHILIPPINE SPEC,P/N LABEL=8966160Y20
*CSA(EXCEPT ELSALVADOR),P/N LABEL=8966160Y20
P/N LABEL=8966160D40
ELSALVADOR,P/N LABEL=8966160D50
PHILIPPINE SPEC,P/N LABEL=8966160D50
*CSA(EXCEPT ELSALVADOR),P/N LABEL=8966160D50
VIETNAM SPEC,P/N LABEL=8966160D50
BOLIVIA,DOMINICA,PANAMA SPEC,P/N LABEL=8966160D50
DENSO
DENSO,PHILIPPINES SPEC
DENSO,COSTARIC,GUATEMA,HONDURAS SPEC
DENSO,ELSALVADOR SPEC
DENSO,BOLIVI,DOMINI,PANAM,PERU SPEC
DENSO,PANAMA SPEC
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89879BRACKET, INJECTOR DRIVER
9030111021
main90301-11021
9043012005
main90430-12005
9167380616
main91673-80616
9167480822
main91674-80822
9331914008
main93319-14008
9331915010
main93319-15010
9415080600
main94150-80600

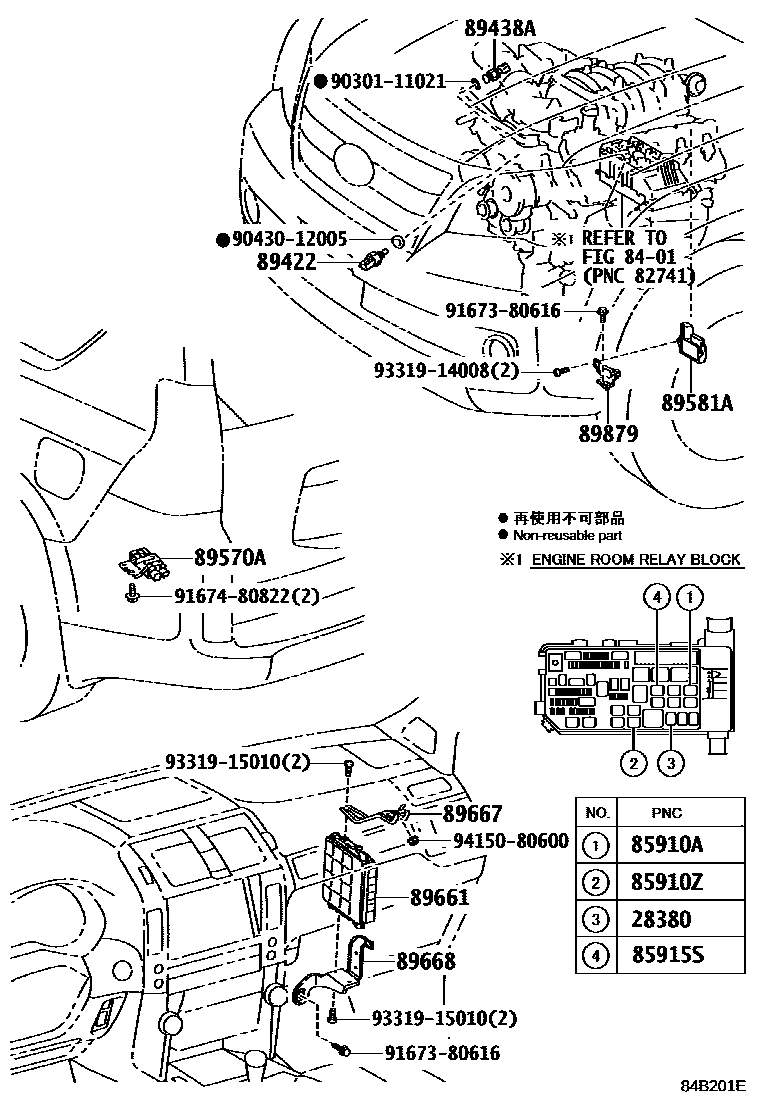

20 parts on this diagram · 2 diagrams in section
