E
EPC Data

MOULDING

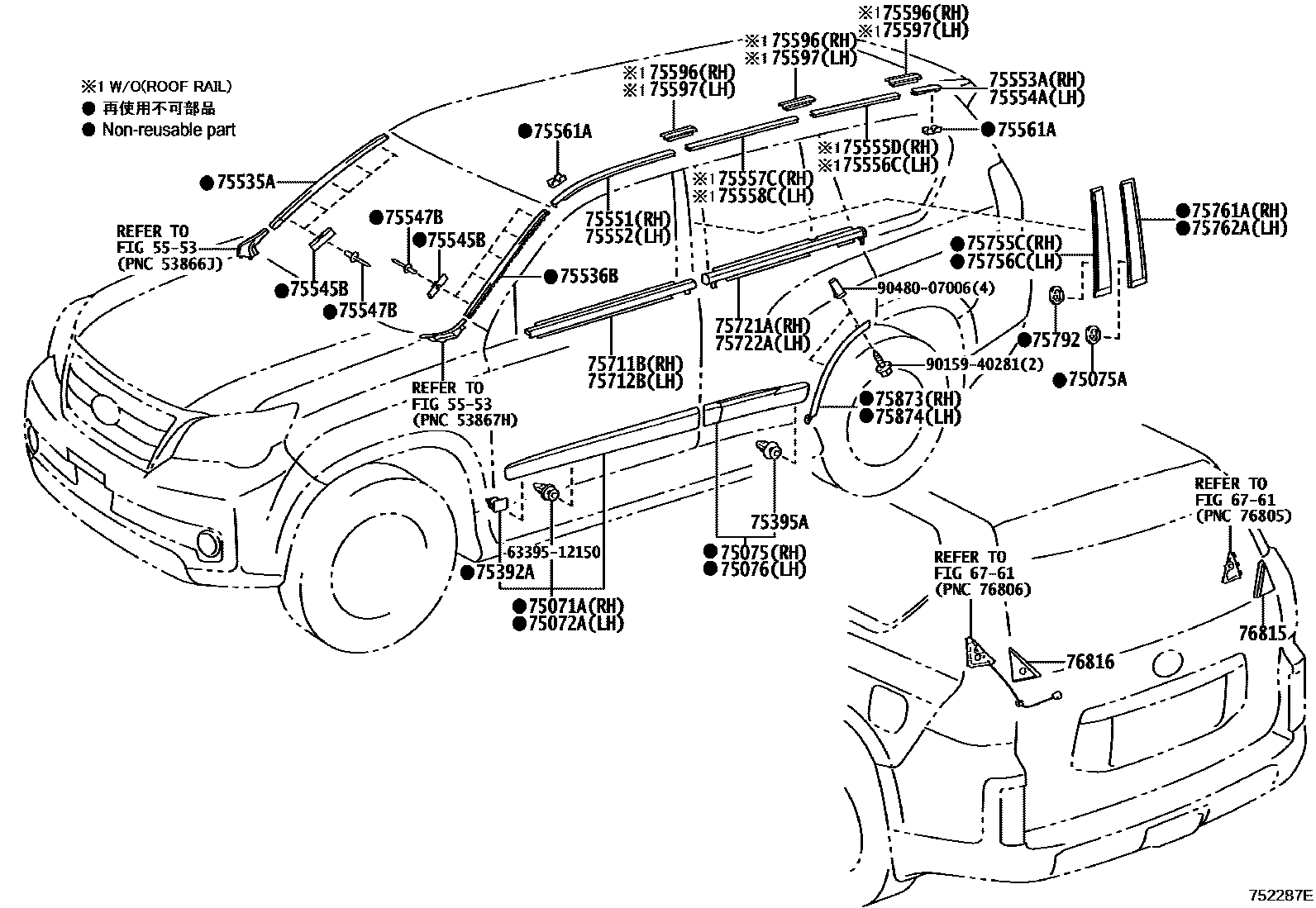

Parts diagram
5553
6761
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
main75071-60060-A0i200911-201407
WHITE PEARL CS.,077
sub75071-60061
main75071-60060-B0i200911-201407
SILVER M.M.,1G1
sub75071-60061
main75071-60060-B1i200911-201407
SPARKLE SOLID GRAY M.M.,1H3
sub75071-60061
main75071-60060-C0i200911-201407
BLACK,202
sub75071-60061
main75071-60060-C1i201108-201407
STARLIGHT BLACK GF.,217
sub75071-60061
main75071-60060-D0i200911-201407
GARNET RED MC.,3S0
sub75071-60061
main75071-60060-E0i200911-201407
SLEEK ECRU ME.,4U7
sub75071-60061
main75071-60060-E1i201108-201407
FIRE AGATE M.M.,4V3
sub75071-60061
main75071-60060-G0i200911-201108
DEEP PERIDOT MC.,6V6
sub75071-60061
main75071-60061-A0i201408-201908
WHITE PEARL CS.,077
main75071-60061-B2i201408-201908
MERCURY GRAY MC.,1H9
main75071-60061-B3i201408-201908
PLATINUM SILVER ME.,1J4
main75071-60061-C0i201408-201908
BLACK,202
main75071-60061-C1i201408-201908
STARLIGHT BLACK GF.,217
main75071-60061-D0i201408-201908
GARNET RED MC.,3S0
main75071-60061-E0i201408-201608
SLEEK ECRU ME.,4U7
main75071-60061-E1i201408-201908
FIRE AGATE M.M.,4V3
main75071-60061-J0i201608-201908
DEEP BLUE MC.,8X5
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
main75072-60070-A0i200911-201407
WHITE PEARL CS.,077
sub75072-60071
main75072-60070-B0i200911-201407
SILVER M.M.,1G1
sub75072-60071
main75072-60070-B1i200911-201407
SPARKLE SOLID GRAY M.M.,1H3
sub75072-60071
main75072-60070-C0i200911-201407
BLACK,202
sub75072-60071
main75072-60070-C1i201108-201407
STARLIGHT BLACK GF.,217
sub75072-60071
main75072-60070-D0i200911-201407
GARNET RED MC.,3S0
sub75072-60071
main75072-60070-E0i200911-201407
SLEEK ECRU ME.,4U7
sub75072-60071
main75072-60070-E1i201108-201407
FIRE AGATE M.M.,4V3
sub75072-60071
main75072-60070-G0i200911-201108
DEEP PERIDOT MC.,6V6
sub75072-60071
main75072-60071-A0i201408-201908
WHITE PEARL CS.,077
main75072-60071-B2i201408-201908
MERCURY GRAY MC.,1H9
main75072-60071-B3i201408-201908
PLATINUM SILVER ME.,1J4
main75072-60071-C0i201408-201908
BLACK,202
main75072-60071-C1i201408-201908
STARLIGHT BLACK GF.,217
main75072-60071-D0i201408-201908
GARNET RED MC.,3S0
main75072-60071-E0i201408-201608
SLEEK ECRU ME.,4U7
main75072-60071-E1i201408-201908
FIRE AGATE M.M.,4V3
main75072-60071-J0i201608-201908
DEEP BLUE MC.,8X5
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
main75075-60080-A0i200911-201407
WHITE PEARL CS.,077
sub75075-60081
main75075-60080-B0i200911-201407
SILVER M.M.,1G1
sub75075-60081
main75075-60080-B1i200911-201407
SPARKLE SOLID GRAY M.M.,1H3
sub75075-60081
main75075-60080-C0i200911-201407
BLACK,202
sub75075-60081
main75075-60080-C1i201108-201407
STARLIGHT BLACK GF.,217
sub75075-60081
main75075-60080-D0i200911-201407
GARNET RED MC.,3S0
sub75075-60081
main75075-60080-E0i200911-201407
SLEEK ECRU ME.,4U7
sub75075-60081
main75075-60080-E1i201108-201407
FIRE AGATE M.M.,4V3
sub75075-60081
main75075-60080-G0i200911-201108
DEEP PERIDOT MC.,6V6
sub75075-60081
main75075-60081-A0i201408-201908
WHITE PEARL CS.,077
main75075-60081-B2i201408-201908
MERCURY GRAY MC.,1H9
main75075-60081-B3i201408-201908
PLATINUM SILVER ME.,1J4
main75075-60081-C0i201408-201908
BLACK,202
main75075-60081-C1i201408-201908
STARLIGHT BLACK GF.,217
main75075-60081-D0i201408-201908
GARNET RED MC.,3S0
main75075-60081-E0i201408-201608
SLEEK ECRU ME.,4U7
main75075-60081-E1i201408-201908
FIRE AGATE M.M.,4V3
main75075-60081-J0i201608-201908
DEEP BLUE MC.,8X5
75075ACLIP(FOR REAR DOOR OUTSIDE MOULDING)
main75792-47010i200911-201908
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
main75076-60080-A0i200911-201407
WHITE PEARL CS.,077
sub75076-60081
main75076-60080-B0i200911-201407
SILVER M.M.,1G1
sub75076-60081
main75076-60080-B1i200911-201407
SPARKLE SOLID GRAY M.M.,1H3
sub75076-60081
main75076-60080-C0i200911-201407
BLACK,202
sub75076-60081
main75076-60080-C1i201108-201407
STARLIGHT BLACK GF.,217
sub75076-60081
main75076-60080-D0i200911-201407
GARNET RED MC.,3S0
sub75076-60081
main75076-60080-E0i200911-201407
SLEEK ECRU ME.,4U7
sub75076-60081
main75076-60080-E1i201108-201407
FIRE AGATE M.M.,4V3
sub75076-60081
main75076-60080-G0i200911-201108
DEEP PERIDOT MC.,6V6
sub75076-60081
main75076-60081-A0i201408-201908
WHITE PEARL CS.,077
main75076-60081-B2i201408-201908
MERCURY GRAY MC.,1H9
main75076-60081-B3i201408-201908
PLATINUM SILVER ME.,1J4
main75076-60081-C0i201408-201908
BLACK,202
main75076-60081-C1i201408-201908
STARLIGHT BLACK GF.,217
main75076-60081-D0i201408-201908
GARNET RED MC.,3S0
main75076-60081-E0i201408-201608
SLEEK ECRU ME.,4U7
main75076-60081-E1i201408-201908
FIRE AGATE M.M.,4V3
main75076-60081-J0i201608-201908
DEEP BLUE MC.,8X5
75392ARETAINER, OUTSIDE MOULDING, NO.1
main75392-60040i200911-201908
RH
main75393-60040i200911-201908
LH
75395ACLIP, OUTSIDE MOULDING, NO.1
main75396-60050i200911-201908
75535AMOULDING, WINDSHIELD, OUTSIDE LOWER
main75535-60020i200911-201908
75536BMOULDING, WINDSHIELD, OUTSIDE LOWER LH
main75536-60010i200911-201908
75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
main75545-53010i200911-201004
sub75545-53011
main75545-53011i201005-201908
75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
main75547-51021i200911-201908
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-60120i200911-201908
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75551-60120i200911-201908
NO PAINT REQ.
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
main75553-60050i200911-201908
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
main75554-60050i200911-201908
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
main75555-60030i200911-201908
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
main75555-60030i200911-201908
75557CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH
main75557-60050i200911-201908
75558CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH
main75557-60050i200911-201908
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
main75561-52020i200911-201908
75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
main75596-35030i200911-201908
75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
main75596-35030i200911-201908
75711BMOULDING, FRONT DOOR BELT, RH
main75711-60090i200911-202001
sub75711-60091
main75711-60091i202002
75712BMOULDING, FRONT DOOR BELT, LH
main75712-60090i200911-202001
sub75712-60091
main75712-60091i202002
75721AMOULDING, REAR DOOR BELT, RH
main75721-60090i200911-202001
sub75721-60091
main75721-60091i202002
75722AMOULDING, REAR DOOR BELT, LH
main75722-60090i200911-202001
sub75722-60091
main75722-60091i202002
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
main75755-60050i200911-201703
main75755-60080i201704-201908
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
main75756-60050i200911-201704
main75756-60080i201704-201908
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
main75761-60050i200911-201704
NO PAINT REQ.
main75761-60080i201704-201908
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
main75762-60050i200911-201703
NO PAINT REQ.
main75762-60080i201704-201908
NO PAINT REQ.
75792CLIP, DOOR WINDOW FRAME MOULDING
main75792-47010i200911-201908
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
main75873-60030i200911-201908
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
main75874-60030i200911-201908
76815MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER RH
main76813-60030i200911-201908
76816MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER LH
main76814-60020i200911-201908
6339512150CLIP, ROOF HEADLINING TRIM
main63395-12150
9015940281
main90159-40281
9048007006
main90480-07006

40 parts on this diagram · 1 diagram in section
