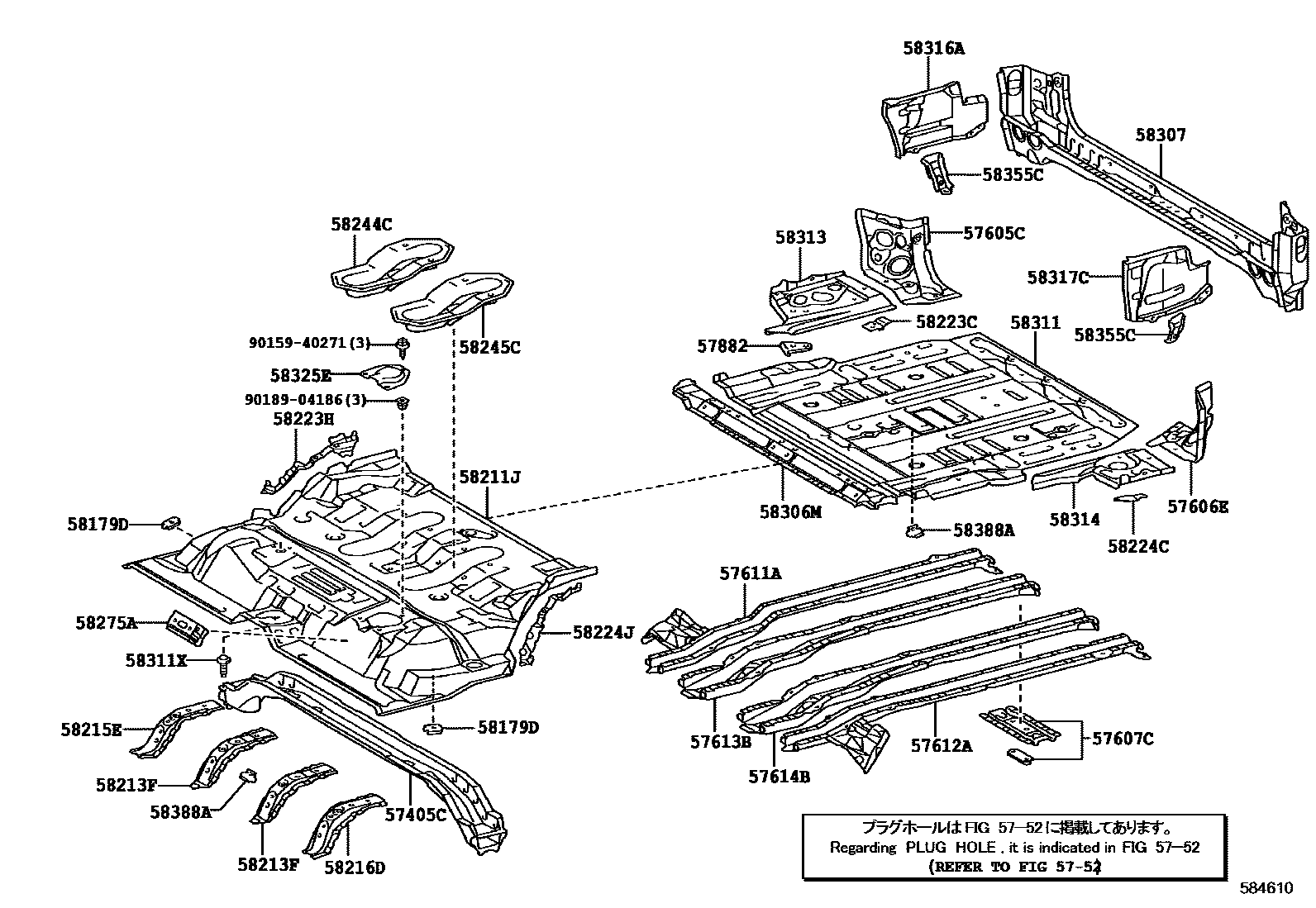

REAR FLOOR PANEL & REAR FLOOR MEMBER
57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
5752
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57611AMEMBER, REAR FLOOR SIDE, RH
57612AMEMBER, REAR FLOOR SIDE, LH
57613BMEMBER, REAR FLOOR SIDE CENTER, RH
57614BMEMBER, REAR FLOOR SIDE, CENTER LH
57882REINFORCEMENT, BELT ANCHOR, NO.4
58179DBRACKET, CLAMP FLOOR
58211JPAN, CENTER FLOOR
58213FREINFORCEMENT, CENTER FLOOR PANEL
58215EBRACKET, REAR SEAT MOUNTING, RH
58216DBRACKET, REAR SEAT MOUNTING, LH
58223CREINFORCEMENT, SEAT SET, NO.1
58223HREINFORCEMENT, FLOOR PANEL SIDE, RH
58224CREINFORCEMENT, SEAT SET, NO.2
58224JREINFORCEMENT, FLOOR PANEL SIDE, LH
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
58245CBRACKET, REAR SEAT CUSHION MOUNTING, LH
58275ARETAINER, REAR SEATBACK TO CENTER FLOOR
58306MPANEL SUB-ASSY, REAR FLOOR SIDE
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58311XBOLT, REAR FLOOR WELD
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58355CBRACKET, REAR BUMPER ARM
58388ABRACKET,REAR FLOOR PLATE
9015940271
main90159-40271
9018904186
main90189-04186
35 parts on this diagram · 1 diagram in section
