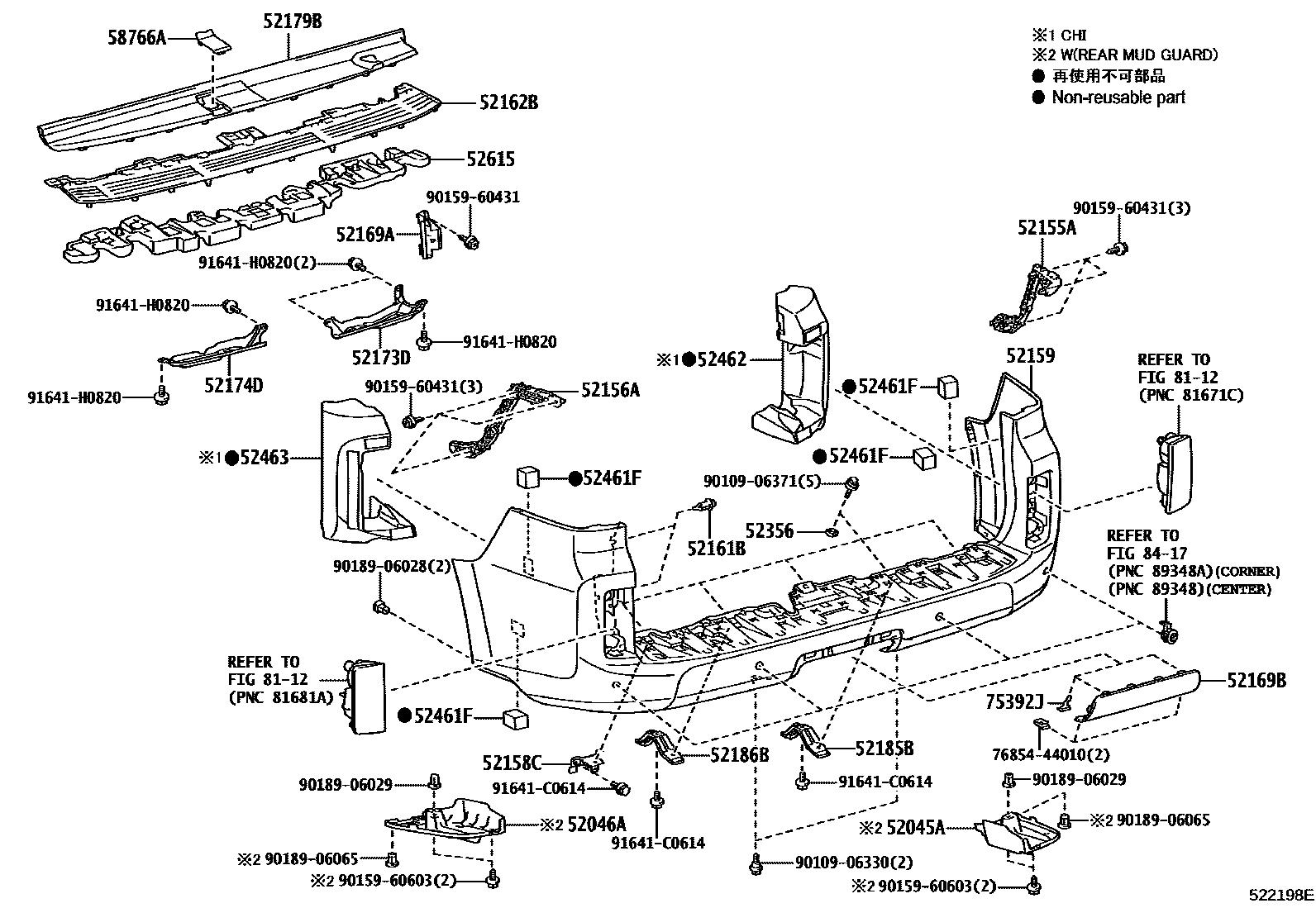

REAR BUMPER & BUMPER STAY

0001 1 0004 1 0006 1

52045APROTECTOR SUB-ASSY, REAR BUMPER, RH

main58723-60040iURJ150..CHI200911-201309

main58723-60060iGRJ158201308-201908

52046APROTECTOR SUB-ASSY, REAR BUMPER, LH

main58724-60040iURJ150..CHI200911-201309

main58724-60060iURJ150201308-201908

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-60100iGRJ158,URJ150200911-201908

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-60100iURJ150..CHI200911-201908

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-60070iURJ150200911-201908

52159COVER, REAR BUMPER

main52159-60979iGRJ158,URJ150200911-201309

CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main52159-6A925iURJ150201308-201908

PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main52159-6A966iURJ150201908

PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT & REAR) & WITH(*BSM)

52161BPIECE, REAR BUMPER

main52161-16010iURJ150200911-201908

sub52161-0K040

52162BPLATE, REAR BUMPER, NO.1

main52162-60060iGRJ158200911-201309

main52162-60100iGRJ158201308-201908

52169ASUPPORT, REAR BUMPER SIDE, NO.3

main52169-60080-A0iURJ150201308-201711

WHITE,077 ,1G1 ,1J4

sub52169-60080

main52169-60080-A0iURJ150..CHI200911-201309

WHITE,077 ,1G1

sub52169-60080

main52169-60080-A0iURJ150201608-201908

WHITE,077 ,1J4

sub52169-60080

main52169-60080-A0iURJ150201908

WHITE,077 ,085 ,1J7

sub52169-60080

main52169-60080-C0iGRJ158201206-201309

BLACK,1H3 ,202 ,217 ,3S0 ,4U7 ,4V3

sub52169-60080

main52169-60080-C0iURJ150..CHI200911-201308

BLACK,1H3 ,202 ,217 ,3S0 ,4U7 ,4V3 ,6V6

sub52169-60080

main52169-60080-C0iURJ150201308-201711

BLACK,1H3 ,1H9 ,202 ,217 ,3S0 ,4U7 ,4V3 ,8X5

sub52169-60080

main52169-60080-C0iURJ150201608-201908

BLACK,1H9 ,202 ,217 ,3S0 ,4U7 ,4V3 ,8X5

sub52169-60080

main52169-60080-C0iURJ150201908

BLACK,1H9 ,202 ,217 ,223 ,3S0 ,4V3 ,6X4 ,8X5

sub52169-60080

52169BBRACKET, REAR BUMPER, CENTER

main52169-60090-A0iGRJ158;URJ150..GCC200911-201309

WHITE PEARL CS.,077

sub52169-60140

main52169-60090-B0iURJ150200911-201309

SILVER M.M.,1G1

sub52169-60140

main52169-60090-B1iGRJ158200911-201309

SPARKLE SOLID GRAY M.M.,1H3

sub52169-60140

main52169-60090-C0iURJ150200911-201309

BLACK,202

sub52169-60140

main52169-60090-C1iURJ150..CHI201108-201309

STARLIGHT BLACK GF.,217

sub52169-60140

main52169-60090-D0iGRJ158200911-201309

GARNET RED MC.,3S0

sub52169-60140

main52169-60090-E0iGRJ158;URJ150..GCC200911-201309

SLEEK ECRU ME.,4U7

sub52169-60140

main52169-60090-E1iGRJ158;URJ150..GCC201108-201309

FIRE AGATE M.M.,4V3

sub52169-60140

main52169-60090-G0iURJ150200911-201108

DEEP PERIDOT MC.,6V6

sub52169-60140

main52169-60160iURJ150201308-201908

52173DREINFORCEMENT, REAR BUMPER BAR, RH

main52173-60110iGRJ158200911-201908

52174DREINFORCEMENT, REAR BUMPER BAR, LH

main52174-60110iURJ150..CHI200911-201908

52179BPLATE, REAR BUMPER BAR

main52179-60060iURJ150..CHI200911-201312

sub52179-60061

main52179-60061iGRJ158201401-201908

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-60100iURJ150..CHI200911-201908

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-60100iURJ150..CHI200911-201908

52356CUSHION, REAR BUMPER STEP

main52356-60050iURJ150..CHI200911-201908

52461FPAD, REAR BUMPER

main52461-60070iGRJ158200911-201309

52462PAD, REAR BUMPER, RH

main52462-60060iURJ150..CHI201012-201309

main52462-60080iGRJ158201309-201711

52463PAD, REAR BUMPER, LH

main52463-60040iURJ150..CHI201012-201309

main52463-60050iGRJ158201309-201711

52615ABSORBER, REAR BUMPER ENERGY

main52615-60060iGRJ158200911-201908

58766ACOVER, JACK BOX HOLE

main58766-60030iURJ150..CHI200911-201908

75392JRETAINER, OUTSIDE MOULDING

main75392-35200iGRJ158200911-201908

main75392-35220iURJ150201908

8112

8417

7685444010RETAINER, FRONT SPOILER, UPPER LH

main76854-44010

9010906330

main90109-06330

9010906371

main90109-06371

9015960431

main90159-60431

9015960603

main90159-60603

9018906028

main90189-06028

9018906029

main90189-06029

9018906065

main90189-06065

91641C0614

main91641-C0614

91641H0820

main91641-H0820

34 parts on this diagram · 3 diagrams in section
