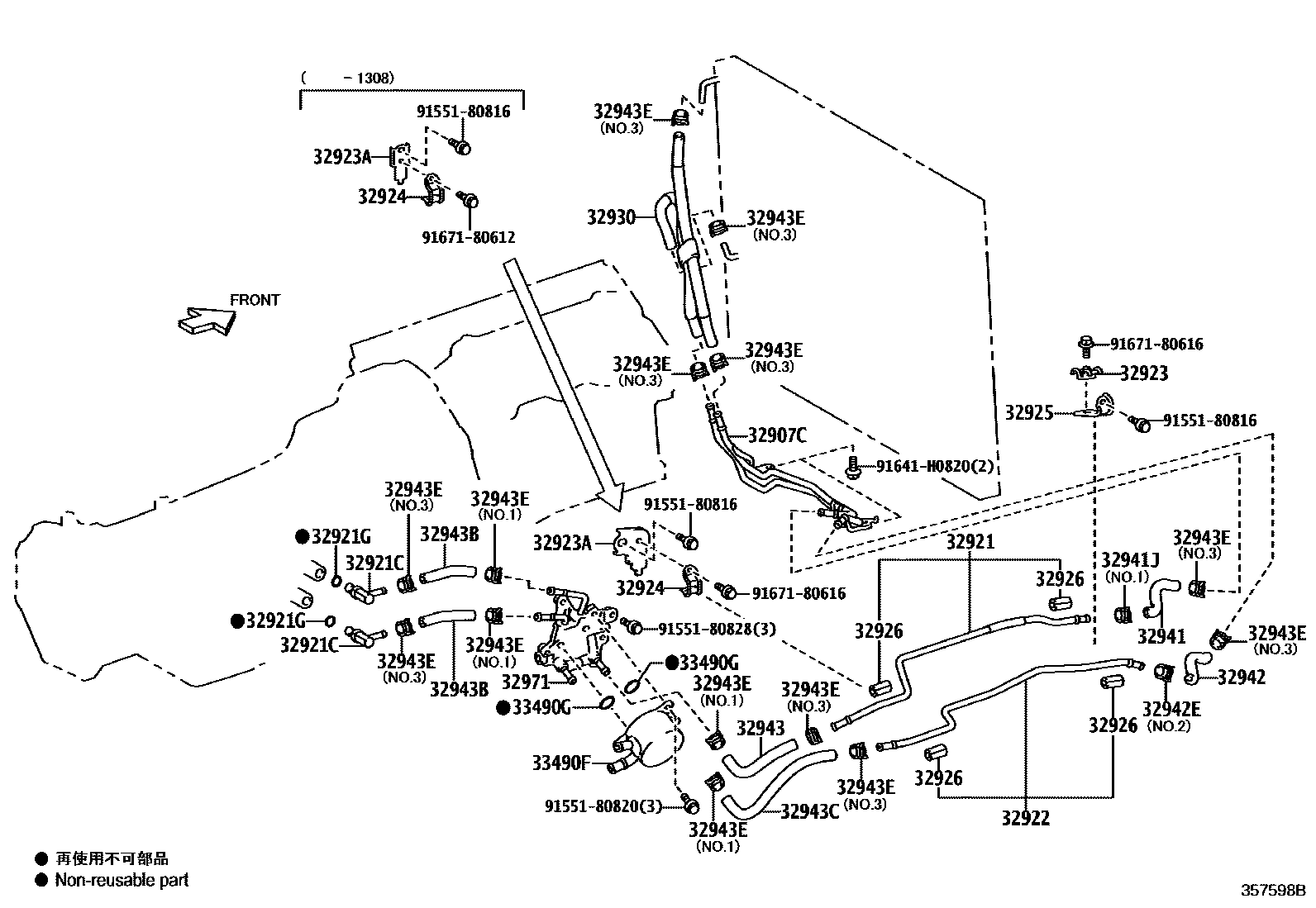

OIL COOLER & TUBE (ATM)

0001 1 0002 1W(AIR OIL COOLER) 0003 1A750F

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-60280iGRJ158201309-201711

main32907-60300iURJ150..CHI200911-201206

main32907-60301iURJ150201908

32921TUBE, OIL COOLER INLET, NO.1

main32921-35420iURJ150..CHI200911-201206

main32921-60230iGRJ158201206-201309

main32921-60420iURJ150201308-201908

32921CUNION(FOR OIL COOLER TUBE)

main90407-14033×2iURJ150..GCC200911-201308

main90407-14034×2iURJ150201806-201908

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030×2iURJ150..CHI200911-201206

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-35450iURJ150..CHI200911-201206

main32922-60250iGRJ158201206-201309

main32922-60450iURJ150201308-201908

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32928-60170iGRJ158201206-201309

main90462-12074iURJ150..CHI200911-201206

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-35100iURJ150..CHI200911-201206

main32923-60140iGRJ158201206-201309

main32923-60150iURJ150201308-201908

32924CLAMP, OIL COOLER TUBE, NO.2

main32929-24060iGRJ158201206-201309

main32929-50010iURJ150..GCC200911-201308

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-35060iURJ150..CHI200911-201206

main32925-60200iGRJ158201206-201309

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×4iURJ150..GCC200911-201308

L=35,ID=10

32930ACCESSORY ASSY, OIL COOLER

main32930-60010iURJ150..CHI201012-201206

32941HOSE, OIL COOLER INLET, NO.1

main32941-35310iURJ150..CHI200911-201206

main32941-60370iGRJ158201206-201309

main32941-60380iURJ150201308-201908

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iURJ150..CHI200911-201206

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-35130iURJ150..CHI200911-201206

main32942-60530iGRJ158201309-201711

main32942-60540iURJ150201308-201908

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iURJ150..CHI200911-201206

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-35030iURJ150..CHI200911-201206

main32943-60590iURJ150201308-201908

32943BHOSE, TRANSMISSION OIL COOLER

main32943-34040×2iURJ150..CHI200911-201206

32943CHOSE, TRANSMISSION OIL COOLER, NO.3

main32943-35020iURJ150..CHI200911-201206

main32943-60410iURJ150201308-201908

main32943-60570×2iGRJ158201206-201309

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×4iURJ150..GCC200911-201308

NO.1

32971THERMOSTAT, TRANSMISSION OIL

main32971-35010iURJ150201908

main32971-60010iGRJ158201206-201309

33490FCOOLER ASSY, TRANSMISSION OIL

main33493-34030iURJ150..GCC200911-201308

33490GRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012×2iURJ150..CHI200911-201206

9155180816

main91551-80816

9155180820

main91551-80820

9155180828

main91551-80828

91641H0820

main91641-H0820

9167180612

main91671-80612

9167180616

main91671-80616

28 parts on this diagram · 3 diagrams in section
