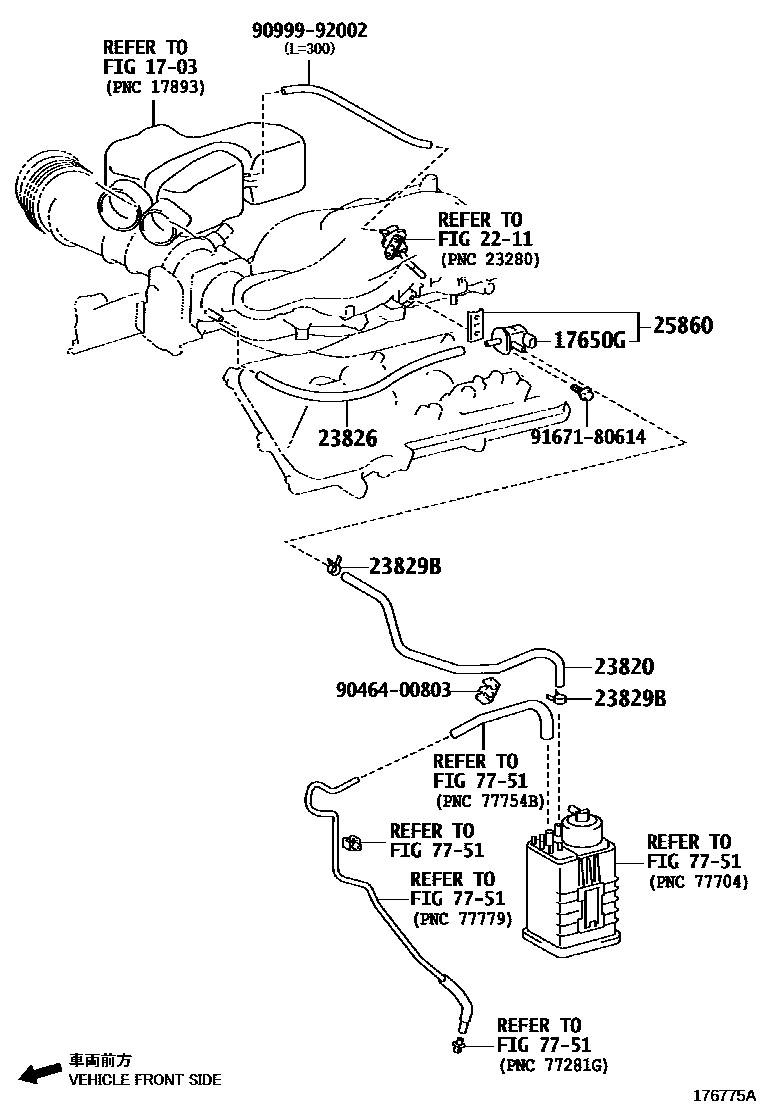

VACUUM PIPING

0001 1 0002 1

1703

17650VALVE ASSY, VACUUM SWITCHING

main25860-38010i1URFE..URJ150..GCC200911-201308

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i1GRFE..GRJ158201206-201309

2211

23820HOSE ASSY, FUEL VAPOR FEED

main23820-31200i1GRFE..GRJ158201206-201309

main23820-38020i1URFE..URJ150200911-201001

main23820-38021i1URFE..URJ150..CHI201001-201206

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31160i1GRFE..GRJ158201206-201309

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-11003×2i1GRFE..GRJ158201309-201711

main96132-51300×2i1URFE..URJ150201308-201506

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31060i1URFE..URJ150..CHI200911-201206

main25860-36020i1GRFE..GRJ158201206-201309

7751

9046400803

main90464-00803

9099992002

main90999-92002

9167180614

main91671-80614

12 parts on this diagram · 2 diagrams in section
