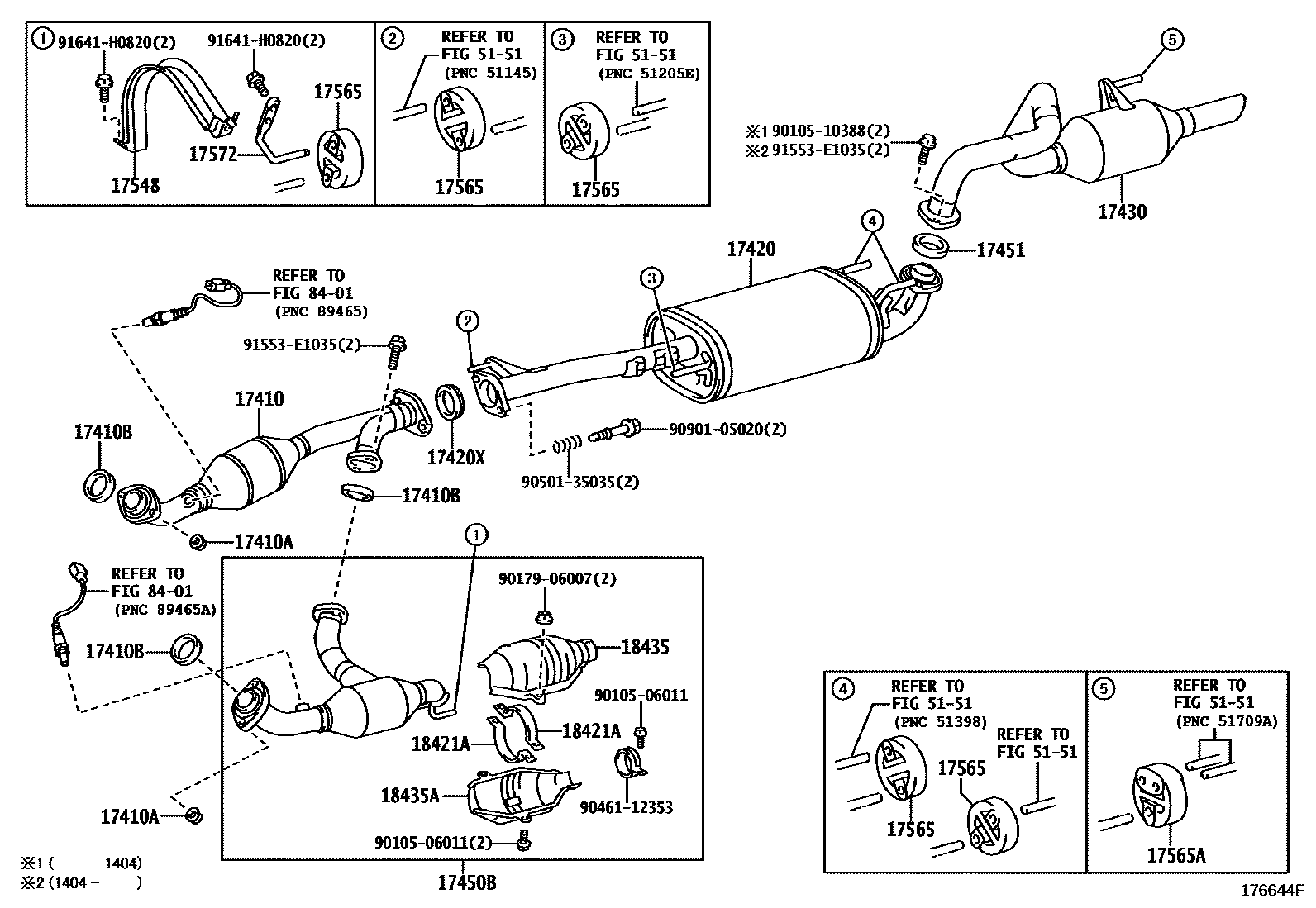

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/TB7/Y
*114=TOYOTA/X53/Y
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17450BPIPE ASSY, EXHAUST, FRONT NO.2
*114=TOYOTA/TB8/Y
*114=TOYOTA/X54/Y
17451GASKET, EXHAUST PIPE
17548BRACKET, EXHAUST PIPE STOPPER
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
18421ASTAY, CONVERTER PROTECTOR, LH
18435PROTECTOR, CATALYTIC CONVERTER
18435APROTECTOR, MONOLITHIC CONVERTER
5151
8401
9010506011
main90105-06011
9010510388
main90105-10388
9017906007
main90179-06007
9046112353
main90461-12353
9050135035
main90501-35035
9090105020
main90901-05020
91553E1035
main91553-E1035
91641H0820
main91641-H0820
25 parts on this diagram · 2 diagrams in section
