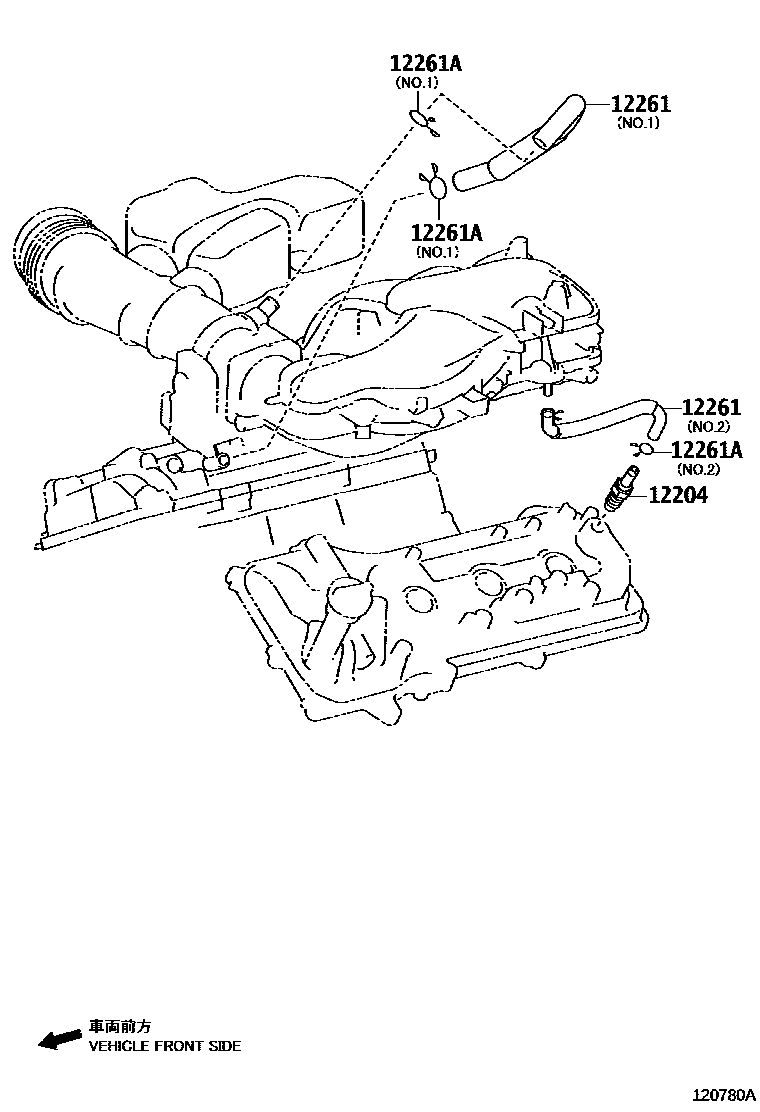

VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-31110i1GRFE..GRJ158201206-201309

main12204-38010i1URFE..URJ150..GCC200911-201308

12261HOSE, VENTILATION

main12261-31130i1GRFE..GRJ158201309-201711

NO.2

main12261-31140i1GRFE..GRJ158201206-201309

NO.1

main12261-38080i1URFE..URJ150201308-201908

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017i1URFE..URJ150201908

main90467-21004×2i1GRFE..GRJ158201206-201309

NO.1

3 parts on this diagram · 2 diagrams in section
