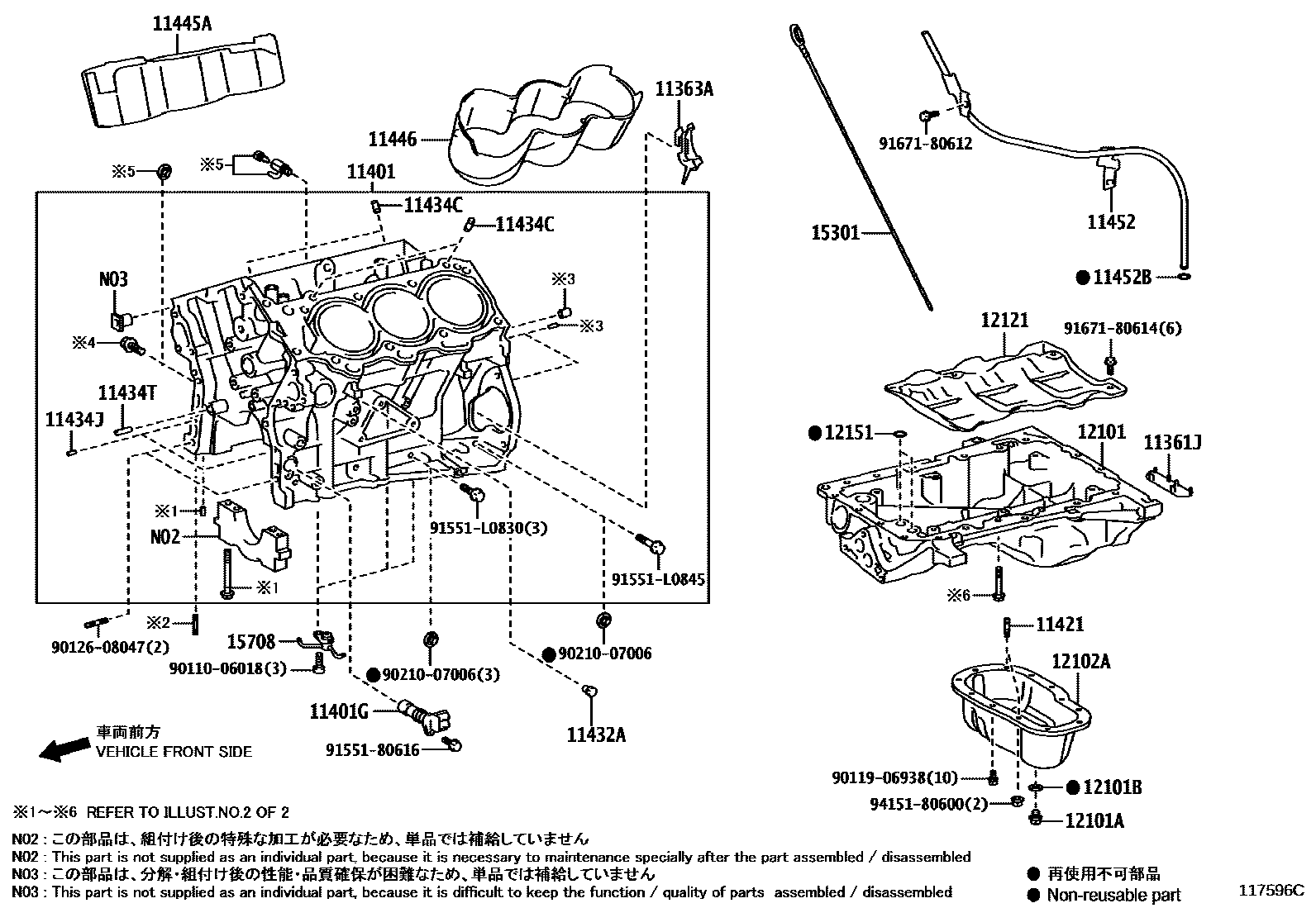

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401GSENSOR, CRANK POSITION
11421BOLT, STUD(FOR OIL PAN)
11432APLUG, W/HEAD TAPER SCREW, NO.1
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=18,OD=8
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)
11445SPACER, CYLINDER BLOCK WATER JACKET
11445ASPACER, CYLINDER BLOCK WATER JACKET, RH
11446SPACER, CYLINDER BLOCK WATER JACKET, LH
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
12121PLATE, OIL PAN BAFFLE, NO.1
12151GASKET, OIL PAN
15301GAGE SUB-ASSY, OIL LEVEL
9011006018
main90110-06018
9011906938
main90119-06938
9012608047
main90126-08047
9021007006
main90210-07006
9155180616
main91551-80616
91551L0830
main91551-L0830
91551L0845
main91551-L0845
9167180612
main91671-80612
9167180614
main91671-80614
9415180600
main94151-80600
32 parts on this diagram · 4 diagrams in section
